Curtiss-Wright C-46 Commando

Twin-Engine Long-Range Transport Aircraft [ 1941 ]

The often overshadowed Curtiss C-46 Commando of World War 2 fame superseded the Douglas DC-3 transports of the era.

Authored By: Staff Writer | Last Edited: 05/21/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

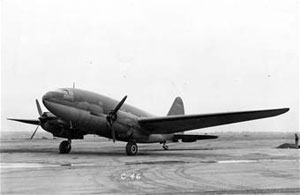

Image from the United States Department of Defense.

GO TO SPECIFICATIONS [+]

Advertisements

The United States Air Force utilized the C-46 Commando series as their primary transport workhorse in the Pacific Theater of War during the Second World War. The system was initiated to replace the Douglas series of DC-3 transports and first appeared in prototype form in March of 1940 as the twin-rudder CW-20T. Design specifications called for the Commando to feature a pressurized cabin for up to 36 combat-ready troops, longer range than anything available to the USAAF (United States Army Air Forces) and an above average cruising speed.

The CW-20T prototype later evolved into the CW-20A that featured a revised tail in the form of the more recognizable single rudder assembly. Later development focused in on the requirements as put forth by the United States Army Air Corps which put the CW-20A under trials with the designation of C-55, which consequently ordered a production version of the model now designated as the CW-20B.

The CW-20B was redesignated to the more familiar C-46 identification. Final trial models were provisioned to fit up to 45 combat-ready troops and fitted with two Pratt & Whitney-brand R-2800-51 radial engines. The C-46 entered service with the plain designation of simply "C-46" in the Pacific Theater - and used almost exclusively there up until about March of 1945, to which the Commando would be seen across the European Theater as well. From its initial acceptance into service with the USAAF, the C-46 system would become the heaviest aircraft in that branch of service and make a name for itself as a true warrior workhorse, transplanting troops and cargo alike, across battlefields and beyond.

Variants abound with the C-46 Commando. The United States Navy utilized a designation of R5C for their own Commando version with 160 models of the R5C-1 going to the United States Marine Corps. Specialized utility and troop models would be produced from the hundreds to the thousands. The C-46A Commando itself could carry up to 50 infantrymen and load/unload cargo through a large cargo door on the port side of the aircraft.

The C-46 was officially retired from service in 1968, replaced by the equally effective C-130 series of transports.

Specifications

Service Year

1941

Origin

United States

Status

ACTIVE
In Limited Service.

Crew

4

Production

3,181
UNITS

Curtiss-Wright - USA

(View other Aviaton-Related Manufacturers)

Argentina; Bolivia; Brazil; Cambodia; Canada; China (Taiwan); Chile; Colombia; Costa Rica; Cuba; Curacao; Dominican Republic; Ecuador; Egypt; West Germany; Haiti; Honduras; Hong Kong; Ireland; Israel; Italy; Japan; Jordan; Kenya; Laos; Lebanon; Luxembourg; Mexico; Nicaragua; Norway; Paraguay; Peru; Republic of the Congo; South Korea; Soviet Union; Sweden; United Kingdom; United States; Uruguay; Venezuela

(OPERATORS list includes past, present, and future operators when applicable)

✓ Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.

Length

76.4 ft
(23.30 m)

Width/Span

78.5 ft
(23.94 m)

Height

21.8 ft
(6.63 m)

Empty Wgt

32,408 lb
(14,700 kg)

MTOW

45,007 lb
(20,415 kg)

Wgt Diff

+12,599 lb
(+5,715 kg)

(Showcased structural values pertain to the Curtiss-Wright C-46A production variant)

Installed: 2 x Pratt & Whitney R-2800-51 "Double Wasp" 18-cylinder, air-cooled, radial piston engines developing 2,000 horsepower each and driving four-bladed propeller units.

Max Speed

270 mph
(435 kph | 235 kts)

Ceiling

27,559 ft
(8,400 m | 5 mi)

Range

3,150 mi
(5,070 km | 9,390 nm)

Rate-of-Climb

1,175 ft/min
(358 m/min)

♦ MACH Regime (Sonic)

Sub

Trans

Super

Hyper

HiHyper

ReEntry

♦

(Showcased performance specifications pertain to the Curtiss-Wright C-46A production variant. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)

None.

CW-20T - Twin-Finned Prototype Model

CW-20A - Converted from the CW-20T Prototype Model; revised tail unit now featured single rudder fin assembly; flattened tailplane halves.

C-55 - US Army Air Corps evaluation designation of the CW-20A model.

CW-20B - US Army Air Corps militarized order production model of the CW-20A/C-55 evaluation model; redesignated to the C-46.

C-46 - Curtiss Model CW-20B based on the CW-20B.

C-46A - Improved and definitive C-46 model; 1,493 produced; fitted with R-2800-51 radial engines; reinforced fuselage flooring; accommodations for up to 50 troops; large port-side loading/unloading door.

XC-46B - Stepped windshield

XC-46C - Became C-46G, then XC-113

C-46D - Improved C-46A; troop transport; double-door model with modified nose assembly.

C-46E - Single Door Model; 17 produced.

C-46F - Improved C-46A; utility transport; 234 produced.

C-46G - XC-46C model

XC-113 - C-46G model

R5C - United States Navy Model

R5C-1 - United States Marine Corps Model; 160 produced.

Cockpit image of the Curtiss-Wright C-46 Commando

Cockpit image represents the Curtiss C-46D production model.
