Mil Mi-8 (Hip)


Multirole Medium-Lift Helicopter [ 1967 ]



Use of the Soviet-era Mil Mi-8 Hip helicopter has been worldwide with the type being utilized through many military and civilian guises.



Authored By: Staff Writer | Last Edited: 02/28/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
Numbering well over 12,000 production examples, the Mil Mi-8 (NATO reporting name of "Hip") can be viewed as one of the most successful helicopter designs of all time. It has seen use as a passenger transport, troop transport, vip transport, reconnaissance, electronic warfare, assault, artillery spotter and airborne command post throughout its tenure with the various nations that have purchased the aircraft. Even today, the Mi-8 remains in use as an operational-level instrument in many of the air forces and army groups that have seen value in the type. As of this writing, production continues despite some 42 years since the first Mi-8 rolled off of the assembly lines at the Mil Moscow Helicopter Plant - then under the Soviet banner.

The Mi-8 was developed as a replacement for the Mi-4 "Hound", a piston-engined transport helicopter appearing in 1953 that could seat up to fourteen personnel. Utilizing some of the successful internal workings of the Mi-4, the new Mil design featured a single Soloviev turboshaft engine of 2,700 shaft horsepower mated to an all-new enlarged fuselage. The prototype took on the name of Mi-8 ("Hip-A") and achieved first flight on July 9th, 1961. Follow-up developmental testing soon revealed the design to lack in power and, as such, the single engine idea was dropped in favor of a twin-engined design featuring two Isotov TV2 turboshaft engines. A five-blade main rotor was also used in this revision which produced the second prototype, first flying on September 17th, 1962. Minor revisions followed and the Mi-8 was fully introduced in Soviet Air Force service sometime in 1967. The initial production versions all fell under the NATO designation of "Hip-C" and constituted the base militarized model and a civilian model (noted for its square windows instead of round). Since then, the Hip series has been expanded to include a plethora of upgraded and specially-designed versions.

Externally, the Mi-8 maintains a most utilitarian look about her. She sports a low-slung front crew area with extensive glazing that offers up excellent views from the cockpit. Immediately to the cockpit's rear is the spacious crew cabin with side-mounted sliding doors. On most versions, the tricycle undercarriage is static (one such Hip offered a retractable undercarriage) which adds to the types distinct look. Two engines are mounted above and to the rear of the crew cabin area and power a large five-blade main rotor system. The empennage is also a distinct feature of this rotorcraft as it sits high in the design and sports a single vertical tail fin, horizontal plane and a three-blade tail rotor mounted to the starboard side (the similar Mi-17 mounts the tail rotor to port). A modified Hip system features a rear-loading ramp. The crew consists of a pilot, co-pilot and a loadmaster.©MilitaryFactory.com
Performance specifications of the common Mil Mi-8T "Hip-C" model are provided for by the twin Klimov-brand TV3-117Mt turboshaft engines generating up to 1,950 shaft horsepower each. Speeds top off at 260 kilometers per hour while a maximum range of 280 miles is possible. A ferry range of 596 miles is noted as is a service ceiling of 14,765 feet.

When armed, the Hip can sport a variety of mission-specific munitions. This includes the use of anti-tank missiles on outrigger pylons, rocket pods and even drop bombs. Self-defense can be handled by a side-mounted PK machine gun or equivalent. One particular Hip model mounted a 12.7mm machine gun in the nose for increased lethality. With the Hip being a multi-role type helicopter system capable of up to 3,300lbs of armament, it can mount virtually any approved ordnance package that the operator needs for a particular mission.

Operators of the Mi-8 cover the world over and appear in both militarized and civilian guises. Prominent military operators include Russia, Afghanistan, Armenia, Azerbaijan, Turkey, Bangladesh, Bulgaria, Croatia, the Czech Republic, Ethiopia, Georgia, Hungary, India, Iran and Serbia. Notable operators also include the United States, which featured the type with their 6th Special Operations Squadron for training purposes. The American-based contracting group, Blackwater USA, used the type as well.

Anyway one looks at it, the expansive reach of this system has ensured an excellent legacy for the machine. Despite newer and more technologically advanced systems since the inception of the Mi-8, the Hip continues to serve in many frontline units across the globe. It is expected that the helicopter will continued to do so for many more years to come.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

December 2014 - The newest incarnation of the Mi-8 is in flight-testing as the Mi-171A2. This product features an all-glass cockpit, new rotors, and digitally-controlled Klimov VK2500PS-03 turboshaft engines of 2,400 shaft horsepower each. Avionics are by Radio-Electronic Technologies (KBO-17 series). A follow-up (second) prototype is also in the works.

July 2017 - Debuted at MAKS 2017 was the Mi-8AMTSh-VA production variant for Arctic environment service.

August 2020 - An improved version of the Mi-8AMT(Sh)-VN helicopter, the Mi-171Sh "Strom", was displayed at Army2020. Russian special forces are the prime early candidate for this mark.

Specifications



Service Year
1967

Origin
Soviet Union national flag graphic
Soviet Union

Status
ACTIVE
In Active Service.
Crew
3

Production
12,500
UNITS


Mil Moscow Helicopter Plant - Soviet Union / Russian Helicopters - Russia
(View other Aviaton-Related Manufacturers)
National flag of Afghanistan National flag of Albania National flag of Algeria National flag of Angola National flag of Armenia National flag of Azerbaijan National flag of Bangladesh National flag of Belarus National flag of Bosnia and Herzegovina National flag of Bulgaria National flag of Canada National flag of China National flag of Colombia National flag of Croatia National flag of Cuba National flag of Czechia National flag of Ecuador National flag of Egypt National flag of Estonia National flag of Ethiopia National flag of Finland National flag of Georgia National flag of modern Germany National flag of East Germany National flag of Guinea National flag of Hungary National flag of India National flag of Indonesia National flag of Iraq National flag of Iran National flag of Israel National flag of Kazakhstan National flag of Kyrgyzstan National flag of Latvia National flag of Libya National flag of Lithuania National flag of Macedonia National flag of Malaysia National flag of Mexico National flag of Montenegro National flag of Mozambique National flag of Myanmar National flag of New Zealand National flag of Nicaragua National flag of North Korea National flag of Pakistan National flag of Peru National flag of Poland National flag of Romania National flag of Russia National flag of Senegal National flag of Serbia National flag of Slovakia National flag of South Africa National flag of the Soviet Union National flag of Sri Lanka National flag of Sudan National flag of Somalia National flag of Syria National flag of Tajikistan National flag of Turkey National flag of Turkmenistan National flag of Uganda National flag of Ukraine National flag of the United States National flag of Uzbekistan National flag of Vietnam National flag of Venezuela National flag of Yemen National flag of Yugoslavia National flag of Zambia Afghanistan; Albania; Algeria; Angola; Anguilla; Armenia; Azerbaijan; Turkey; Belarus; Bangladesh; Bhutan; Bosnia and Herzegovina; Bulgaria; Burkina Faso; Canada; Cambodia; China; Colombia; Croatia; Cuba; Czech Republic; Djibouti; East Germany; Ecuador; Egypt; Estonia; Ethiopia; Finland; Germany; Georgia; Ghana; Guinea-Bissau; Hungary; Israel; India; Indonesia; Iran; Iraq; Kazakhstan; Kenya; Kyrgyzstan; Laos; Latvia; Libya; Lithuania; Macedonia; Madagascar; Malaysia; Montenegro; Maldives; Mali; Mexico; Moldova; Mongolia; Mozambique; Myanmar; Nepal; New Zealand; Nicaragua; North Korea; North Vietnam; Pakistan; Peru; Poland; Romania; Russia; Senegal; Serbia; Sierra Leone; Sri Lanka; Slovakia; Somalia; South Africa; South Sudan; Soviet Union; Sudan; Syria; Tajikistan; Turkmenistan; Uganda; Ukraine; Uzbekistan; United States; Vietnam; Venezuela; Yemen; Yugoslavia; Zambia
(OPERATORS list includes past, present, and future operators when applicable)
GROUND ATTACK
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
CLOSE-AIR SUPPORT
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
SPECIAL-MISSION: SEARCH & RESCUE
Ability to locate and extract personnel from areas of potential harm or peril (i.e. downed airmen in the sea).
TRANSPORT
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.
COMMERCIAL AVIATION
Used in roles serving the commercial aviation market, ferrying both passengers and goods over range.
VIP SERVICE
Used in the Very-Important-Person (VIP) passenger transport role, typically with above-average amenities and luxuries as standard.
INTELLIGENCE-SURVEILLANCE-RECONNAISSANCE
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.
SPECOPS
Serving Special Forces / Special Operations elements and missions.


Length
59.6 ft
(18.17 m)
Width/Span
69.8 ft
(21.29 m)
Height
18.2 ft
(5.56 m)
Empty Wgt
16,006 lb
(7,260 kg)
MTOW
26,455 lb
(12,000 kg)
Wgt Diff
+10,450 lb
(+4,740 kg)
(Showcased structural values pertain to the Mil-Mi-8T (Hip-C) production variant)
monoplane / low-mounted / straight
Monoplane
Design utilizes a single primary wing mainplane; this represents the most popular modern mainplane arrangement.
Low-Mounted
Mainplanes are low-mounted along the sides of the fuselage.
Straight
The planform involves use of basic, straight mainplane members.
(Structural descriptors pertain to the Mil-Mi-8T (Hip-C) production variant)
Installed: 2 x Klimov TV3-117Mt turboshaft engines developing 1,950 shaft horsepower each and drivign a five-blade main rotor and three-blade tail rotor.
Max Speed
162 mph
(260 kph | 140 kts)
Ceiling
14,764 ft
(4,500 m | 3 mi)
Range
280 mi
(450 km | 243 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Mil-Mi-8T (Hip-C) production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
Up to 6 x Hardpoints for rocket pods, anti-tank missiles and bombs. Ordnance can include a combination of the following:

UV-16-57 rocket pods (S-5 rockets)
UV-32-57 rocket pods
AT-2 "Swatter" anti-tank missiles
AT-3 "Sagger" anti-tank missiles
9M17 Phalanga anti-tank missiles
Nose-Mounted KV-4 12.7mm machine gun
Mine Dispensers
551lb drop bombs
Side-Mounted PK machine gun(s)
Gun pods
Cannon pods


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun
Graphical image of an aircraft automatic cannon
Graphical image of an aircraft machine gun pod
Graphical image of an aircraft cannon pod
Graphical image of an aircraft anti-tank guided missile
Graphical image of aircraft aerial rockets
Graphical image of an aircraft rocket pod
Graphical image of an aircraft conventional drop bomb munition
Graphical image of a naval mine


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 6
Mounting Points




-
-
9
7
5
-
-
-
4
6
8
-
-
HARDPOINT(S) KEY:
X

15
13
11
9
7
5
3
1
2
4
6
8
10
12
14


COLOR KEY:
Fuselage Centerline
Fuselage Port/Wingroot
Fuselage Starboard/Wingroot
Wing/Underwing
Wingtip Mount(s)
Internal Bay(s)
Not Used

Note: Diagram above does not take into account inline hardpoints (mounting positions seated one-behind-the-other).


V-8 ("Hip-A") - Single-Engine Prototype
V-8A - Twin-Engine Prototype; fitted with TV2-117 series turboshaft engines.
V-8AT - Mi-8T Utility Prototype
Mi-8 ("Hip-B") - Twin-Engine Prototype
Mi-8TG - Converted LPG gas-capable Mi-8
Mi-18 - Prototype based on Mi-8; lengthened fuselage; sliding starboard-side door added; retractable undercarriage.
Mi-8T ("Hip-C") - Initial quantitative production model; provision for 4 x UV-16-57 rocket pods; side-facing PK machine gun.
Mi-8TV - Armed version based on the Mi-8T model.
Mi-8TVK / Mi-8TB ("Hip-E") - Gunship Variant; provision for 6 x UV-32-57 rocket pods, 4 x AT-2 "Swatter" anti-tank missiles and 2 x 551lb drop bombs; KV-4 machine gun fitted to nose.
Mi-8TBK ("Hip-F") - Gunship Export Model; provision for 6 x Malyutka anti-tank missiles.
Mi-8IV ("Hip-G") - Utility transport; provision for 4 x UV-16-57 rocket pods; side-facing PK-machine gun.
Mi-9 - Export version of the Mi-8IV model.
Mi-8PPA ("Hip-K") - Export Electronic Warfare / Airborne Command Post; fitted with 6 antenna structures.
Mi-8PD - Polish Airborne Command Post
Mi-8PS / Mi-8TPS ("Hip-D") - Command Post / Communications Platform.
Mi-8SMV ("Hip-J") - Airborne Jamming Platform
Mi-8VPK / Mi-8VZPU ("Hip-D") - Airborne Communications Platform.
Mi-8AMT - Unarmed Transport
Mi-8AMT(Sh) - Based on the Mi-8MTV; fitted with electro-optic sight and radar system; armed or unarmed version.
Mi-8AMT(Sh)-VA - Arctic environment variant; debuted at MAKS 2017.
Mi-8AMT(Sh)-VN
Mi-8AV - Minelayer.
Mi-8VT - Mine Clearer.
Mi-8MB - MEDEVAC variant.
Mi-8MTO - Night Attack Model.
Mi-8R - Reconnaissance Platform.
Mi-8K - Reconnaissance / Artillery Observation Platform.
Mi-8PT - Staff Transport; improved communications suite.
Mi-8SKA - Photo-Reconnaissance Platform
Mi-8T(K) - Photo-Reconnaissance Platform
Mi-8TZ - Fuel Transport
Mi-8T ("Hip-C") - Utility Transport; seating for 24; fitted with 2 x Klimov TV2-117A turboshaft engines of 1,677 shaft horsepower each.
Mi-8P - Civilian Transport; seating for up to 32; in-flight galley and restroom facilities.
Mi-8S "Salon" - Civilian VIP Transport; seating for up to 11; in-flight galley and toilet facilities.
Mi-8M - Russian Service Designation for similar Mi-17 "Hip".
Mi-8MPS - Search and Rescue (SAR) Variant
Mi-8MA - Cold Weather Exploration Variant
Mi-8MT - Aerial Crane Variant
Mi-8MTV - Improved "hot and high" model; fitted with TV3-117VM turboshaft engines.
Mi-8AT - Civilian Transport; fitted with revised and improved TV2-117AG series turboshaft engines.
Mi-8ATS - Agricultural Sprayer
Mi-8TL - Accident Investigation Model
Mi-8TM - Transport Model; fitted with weather radar.
Mi-8TS - Hot Weather Variant
Mi-8VIP - Luxury VIP Transport; seating for up to 9.
Mi-8PA - Heavy Material Transport; single production examples used by Japan.
Mi-171 - Ulan-Ude export equivalent of the Mi-8AMT.
Mi-171A - Civilian market passenger transport
Mi-171A1 - Civilian market cargo transport
Mi-171A2 - Digitally-controlled Klimov VK-2500PS-03 engines of 2,400shp; new rotor; glass cockpit.
Mi-171C - Local Chinese-built variant of the Mi-171; under Sichuan Lantian Helicopter Company Ltd brand label; outfitted with twin radar configuration; single ramp door at rear.
Mi-171E - Fitted with VK-2500-03 series engines for extreme weather service.
Mi-171LL - Flying testbed for Mi-171 series
Mi-171M - Modernized Mi-171; standard operating crew of two (from three).
Mi-171S - Mi-171 completed with Western-minded avionics suite.
Mi-171Sh - Export variant of the Mi-8AMTSh
Mi-172 - Kazan export equivalent of the Mi-8AMT.
Mi-8MTV-3 - Kazan export equivalent of the Mi-8AMT.
Mi-17 ("Hip") - Developed from the Mi-8; known as the Mi-8M in Russian service; tail rotor mounted to port-side; fitted with TV3-117MT engines, larger rotor and transmission.
Mi-17MD - Kazan-developed Mi-8 with rear ramp and dolphin-nose housing radar.
Mi-17KF - Kazan-developed Mi-8 with Western-type electronics suite.
Mi-171Sh "Strom" - Enhanced variant of the Mi-8AMT(Sh)-VN; displayed at Army2020 in Russia.


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
86
Rating is out of a possible 100 points.
Firepower Index (BETA)


Inherent combat value taking into account weapons support / versatility, available hardpoints, and total carrying capability.
64.0
View the List
Relative Maximum Speed
Hi: 200mph
Lo: 100mph
This entry's maximum listed speed (162mph).

Graph average of 150 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Pie graph section
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (12,500)
12500
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 5

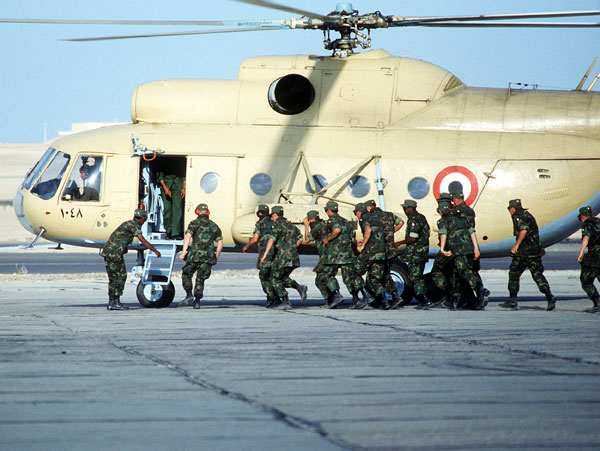

Image of the Mil Mi-8 (Hip)
Image from the United States Department of Defense imagery database.
2 / 5
Image of the Mil Mi-8 (Hip)
Image from the United States Department of Defense imagery database.
3 / 5
Image of the Mil Mi-8 (Hip)
Image from the United States Department of Defense imagery database.
4 / 5
Image of the Mil Mi-8 (Hip)
Image from the United States Department of Defense imagery database.
5 / 5
Image of the Mil Mi-8 (Hip)
Image from the United States Department of Defense imagery database.

Similar Aircraft



Aviation developments of similar form and function, or related to, the Mil Mi-8 (Hip)...

Disclaimer | Privacy Policy | Cookies

2024 Military Pay Chart Military Ranks DoD Dictionary Conversion Calculators Military Alphabet Code Military Map Symbols

The "Military Factory" name and MilitaryFactory.com logo are registered ® U.S. trademarks protected by all applicable domestic and international intellectual property laws. All written content, illustrations, and photography are unique to this website (unless where indicated) and not for reuse/reproduction in any form. Material presented throughout this website is for historical and entertainment value only and should not to be construed as usable for hardware restoration, maintenance, or general operation. We do not sell any of the items showcased on this site. Please direct all other inquiries to militaryfactory AT gmail.com. No A.I. was used in the generation of this content; site is 100% curated by humans.

Part of a network of sites that includes GlobalFirepower, a data-driven property used in ranking the top military powers of the world, WDMMA.org (World Directory of Modern Military Aircraft), WDMMW.org (World Directory of Modern Military Warships), SR71blackbird.org, detailing the history of the world's most iconic spyplane, and MilitaryRibbons.info, cataloguing military medals and ribbons. Special Interest: RailRoad Junction, the locomotive encyclopedia.


©2023 www.MilitaryFactory.com • All Rights Reserved • Content ©2003-2023 (20yrs)
