Sikorsky CH-54 Tarhe / Erickson S-64 Skycrane

Heavy-Lift Cargo / Firefighting Helicopter [ 1962 ]

The unique Sikorsky S-64 Skycrane heavy-lift helicopter also spawned a military form in the CH-54 Tarhe for the United States Army.

Authored By: Staff Writer | Last Edited: 02/03/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

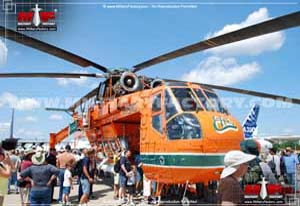

Front right side view of an Erickson Skycrane helicopter on display; color

GO TO SPECIFICATIONS [+]

Advertisements

The original Sikorsky S-60 proved itself as a heavy-lift helicopter through its sole example completed. This model was born from the established CH-47 "Mojave" (detailed elsewhere on this site) of the United States military and used as the basis for the dimensionally larger S-64 "Skycrane" heavy-lift series. The large helicopter - easily identifiable by its largely missing fuselage section - has seen consistent service in the civilian market since introduction in the 1960s. It served as the base design for the military-minded CH-54 "Tarhe" line as well. A prototype went airborne for the first time on May 9th, 1962 and, in 1992, production rights for the series was obtained by Erickson Air-Crane which has taken on manufacture of the large helicopter from Sikorsky since.

Total production of S-64 units was 110 beginning with the original S-64 built in three examples. These were followed by six evaluation models for the United States Army as the S-64A. From that came the S-64B which was the civilian-minded version of the Army's CH-54A model and seven were produced. Under Erickson, the line was broadened to include the S-64E and S-64F model marks, these becoming upgraded forms of the CH-54A and CH-54B respectively - the F-model introducing Pratt & Whitney JFTD12-5A series engines.

Civilian market operators of the S-64 are found in Italy, South Korea and the United States. Its primary role is in firefighting where its unique configuration allows the helicopter to carry a considerable water load over uneven terrain, dropping its contents onto raging wildfires with the hope of putting the fire source out.

Production of the military-minded Tarhe yielded 105 total units of its own beginning with the six YCH-54A pre-production models. These were followed by the CH-54A production form which fitted 2 x PW T73-P-1 series turboshaft engines of 4,500 horsepower and 54 examples were built to the standard. The CH-54B saw an increase in overall weight as well as a twin-wheeled undercarriage introduced while power was now served through PW T73-P799 turboshaft engines of 4,800 horsepower. 37 examples were manufactured.

Beyond its service with the United States Army, the CH-54 has been featured by the NASA service of the United States for various program work. In military use, the Tarhe has hauled all manner of heavy objects - from oversized bombs and attack helicopters to combat tanks and cargo containers. A special version even featured skies as its undercarriage.©MilitaryFactory.com

Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

March 2018 - Flight tests of an S-65 featuring a composite main rotor blade assembly are ongoing. Certification is scheduled for later in 2018 and will be an offered upgrade to E- and F-models as well as to the related CH-54A/B model family. The airfoil on the new blade design is expected to increase overall efficiency of these aging platforms.

February 2020 - An improved Skycrane form, the S-64F+, has been detailed with all-modern powerplants, composite rotors, and modernized avionics suite. In addition to this, an autonomous operating function is being considered through the Sikorsky "Matrix" suite, allowing the fire-fighting forms to operate without a manned crew in danger.

Specifications

Service Year

1962

Origin

United States

Status

ACTIVE
In Limited Service.

Crew

3

Production

215
UNITS

Sikorsky Aircraft / Erickson Air-Crane - USA

(View other Aviaton-Related Manufacturers)

Italy; South Korea; United States

(OPERATORS list includes past, present, and future operators when applicable)

✓ Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.

Length

88.5 ft
(26.97 m)

Width/Span

72.0 ft
(21.95 m)

Height

25.4 ft
(7.75 m)

Empty Wgt

19,798 lb
(8,980 kg)

MTOW

46,297 lb
(21,000 kg)

Wgt Diff

+26,500 lb
(+12,020 kg)

(Showcased structural values pertain to the Sikorsky CH-54B Tarhe production variant)

Installed: 2 x Pratt & Whitney T73-P-700 turboshaft engines developing 4,800 shaft horsepower each powering a six-blade main rotor and a four-blade tail rotor.

Max Speed

149 mph
(240 kph | 130 kts)

Ceiling

18,373 ft
(5,600 m | 3 mi)

Range

230 mi
(370 km | 685 nm)

Rate-of-Climb

1,330 ft/min
(405 m/min)

♦ MACH Regime (Sonic)

Sub

Trans

Super

Hyper

HiHyper

ReEntry

♦

(Showcased performance specifications pertain to the Sikorsky CH-54B Tarhe production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)

None.

Supported Types

(Not all ordnance types may be represented in the showcase above)

YCH-54A - Six Pre-Production Aircraft

CH-54A - Initial Production Model; fitted with 2 x T-73-P1 series turboshaft engines of 4,500 shaft horsepower; 54 examples produced.

CH-54B - Second Production Model; increased weight; based on the CH-54A; fitted with 2 x T-73-P700 turboshaft engines of 4,800 shaft horsepower; 29 examples produced.

S-64 "Skycrane" - Civilian Variant of the US Army CH-54 Tarhe; 3 examples produced.

S-64A - Evaluation Models for the US Army; 6 examples delivered.

S-64E - Civilian Version based on the CH-54A production model for the US Army; 7 examples produced.

S-64 "Aircrane" - Current Civilian Production Form.

S-64E - Upgraded CH-54A production models; single new-build example.

S-64F - UPgraded CH-54B production models; fitted with 2 x Pratt & Whitney JFTD12-5A series engines.

S-64F+ - Proposed all-modern offering with Sikorsky autonomous flight suite (Matrix).
