Lockheed EC-130H Compass Call


Electronic Countermeasures (ECM) Aircraft


United States | 1982



"The EC-130H Compass Call is a dedicated electronic warfare platform based on the ubiquitous Lockheed C-130 airframe."



Authored By: Martin Foray | Last Edited: 09/02/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site; No A.I. was used in the generation of this content.
The EC-130H "Compass Call" is a dedicated Electronic Warfare Aircraft (EWA) platform based on the hugely successful Lockheed C-130 Hercules transport airframe. The modified aircraft retains the basic appearance of the original but is stocked with state-of-the-art technology that enables the United States Air Force (USAF) to jam or disrupt enemy communications. In addition to the basic EWA functions, the EC-130 can also be utilized to suppress enemy air defense networks and supply "counter-information" as needed. The end effect is to strongly limit enemy communications infrastructure and severely debilitate coordinated actions against friendly forces, in effect removing the advantage an enemy may perceive to have. Modernization programs have continually branched out the capabilities of the base EC-130 system to keep pace with the requirements of the modern battlefield. The EC-130H can be clearly identified by the masses of antenna fixtures and wiring found along the fuselage sides, roof and tail planes.

The EC-30H completed her first flight in 1981 and was entered into USAF service in 1982 at a cost of $65 million USD per aircraft with operational capability being reached in 1983. To date, only fourteen of these very specialized airframes have seen service and all maintain an active status in the inventory of the USAF. They are fielded out of Davis-Monthan Air Force Base but serve under the 55th Wing out of Offutt Air Force Base in Nebraska. While Lockheed is the notable chief contractor of the EC-130, BAe Systems supplies the prime mission equipment while L-3 Communications is responsible for aircraft integration and depot maintenance.

Design of the EC-130H naturally followed that of the original C-130. The fuselage was of a stout, somewhat cylindrical design with the C-130's identifiable high-set monoplane wings. Each wing was fitted with two underslung nacelles mounting powerful turboprop engines giving the airframe a Short Take-Off and Landing (STOL) quality already inherent in the original C-130. Optional underwing equipment pods could be fitted between each engine nacelle or outboard of them when needed. The cockpit flight deck was held well-forward in the design with the mission area within the fuselage itself. The empennage was dominated by a large vertical tail fin and a pair of horizontal tail planes. The aircraft is crewed by no fewer than 13 personnel made up of two pilots, a flight engineer, a navigator, two dedicated electronic warfare specialist officers, a mission crew supervisor, and acquisition operator, a maintenance technician and four crypto-logic linguists. While not serving any conventional weapons for offensive or defensive attacks per se, the EC-130H manages "non-kinetic energy waveforms" as its primary armament.

Power continues to be supplied by an effective arrangement of 4 x Allison T56-A-15 series turboprop engines delivering up to 4,910 horsepower to four-bladed propeller systems. Maximum speed is listed at approximately 300 miles per hour with a service ceiling of 25,000 feet. Internal fuel capacity is 62,000lbs offering a range of 2,295 miles. Maximum take-off weight (MTOW) is listed at 155,000lbs and the aircraft maintains a wingspan of 132 feet, 7 inches.

The EC-130H has since been upgraded through the Block 30 and Block 35 initiatives. The former introduced a new, revised mission area along with an upgraded operating system. The latter has extended the power and reach of the onboard Early Warning and Acquisition Radar suites as well as introducing improved navigation and digital signal processing.

The EC-130H has been purposely designed as a highly flexible combat element allowing it to serve anywhere in the world and at all operational levels as needed while working against very short delivery timeframes. The EC-130H works in conjunction with other existing USAF specialty aircraft such as the Northrop Grumman EA-6B "Prowler" and General Dynamics F-16CJ "Fighting Falcon" to form a powerful triangle of suppression and jamming services to help give whatever possible advantage to American air power and friendly forces throughout a given operation.

To date, the EC-130H Compass Call platform has seen active military service over Kosovo, Haiti, Panama, Iraq, Serbia and Afghanistan, proving her worth time and again.

Content ©MilitaryFactory.com; No Reproduction Permitted.
[ Tap Anywhere to Close ]
Image container
[ Tap Anywhere to Close ]
Cockpit
While traditional jobs involve workstations, office desks, or cubicles, aircraft provide operators with their own unique, ever-changing view of the world below.
Cockpit image
[ Click to Enlarge ]
Power & Performance
Those special qualities that separate one aircraft design from another. Performance specifications presented assume optimal operating conditions for the Lockheed EC-130H Compass Call Electronic Countermeasures (ECM) Aircraft.
4 x Allison T56-A-15 turboprop engines developing 4,591 horsepower each.
Propulsion
300 mph
483 kph | 261 kts
Max Speed
25,000 ft
7,620 m | 5 miles
Service Ceiling
2,295 miles
3,694 km | 1,995 nm
Operational Range
City-to-City Ranges
Operational range when compared to distances between major cities (in KM).
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Structure
The nose-to-tail, wingtip-to-wingtip physical qualities of the Lockheed EC-130H Compass Call Electronic Countermeasures (ECM) Aircraft.
13
(MANNED)
Crew
96.1 ft
29.30 m
O/A Length
130.2 ft
(39.70 m)
O/A Width
37.4 ft
(11.40 m)
O/A Height
101,000 lb
(45,813 kg)
Empty Weight
153,772 lb
(69,750 kg)
MTOW
Design Balance
The three qualities reflected below are altitude, speed, and range. The more full the box, the more balanced the design.
RANGE
ALT
SPEED
Armament
Available supported armament and special-mission equipment featured in the design of the Lockheed EC-130H Compass Call Electronic Countermeasures (ECM) Aircraft .
No conventional weapons nor munitions carried.
Variants
Notable series variants as part of the Lockheed EC-130H Compass Call family line.
EC-130H - Base Series Designation; 14 examples produced in all with all serving actively in the inventory of the USAF.
EC-130H Block 30 - Program Upgrade; revised mission area; upgraded software.
EC-130H Block 35 - Program Upgrade; Additional jamming capability; improved Early Warning and Acquisition systems; extended frequency ranges; digital signal processing.
Operators
Global customers who have evaluated and/or operated the Lockheed EC-130H Compass Call. Nations are displayed by flag, each linked to their respective national aircraft listing.

Total Production: 14 Units

Contractor(s): Lockheed; L-3 Communications - USA / BAe Systems - UK
National flag of the United States

[ United States ]
Relative Max Speed
Hi: 400mph
Lo: 200mph
Aircraft Max Listed Speed (300mph).

Graph Average of 300 MPH.
Era Crossover
Pie graph section
Pie graph section
Showcasing Aircraft Era Crossover (if any)
Max Alt Visualization
Small airplane graphic
Production Comparison
14
36183
44000
Entry compared against Ilyushin IL-2 (military) and Cessna 172 (civilian) total production.
MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030
Aviation Timeline
EarlyYrs
WWI
Interwar
WWII
ColdWar
Postwar
Modern
Future
1 / 10
Image of the Lockheed EC-130H Compass Call
High-angled left side top view of the Lockheed EC-130H Compass Call
2 / 10
Image of the Lockheed EC-130H Compass Call
Underside right view of an incoming Lockheed EC-130H Compass Call; note equipment pods under wings
3 / 10
Image of the Lockheed EC-130H Compass Call
Top view of the Lockheed EC-130H Compass Call in flight
4 / 10
Image of the Lockheed EC-130H Compass Call
A Lockheed EC-130H Compass Call is serviced in a USAF hangar
5 / 10
Image of the Lockheed EC-130H Compass Call
A Lockheed EC-130H Compass Call is refueled in midair by a USAF tanker
6 / 10
Image of the Lockheed EC-130H Compass Call
View from the refueling USAF aircraft over a Lockheed EC-130H Compass Call
7 / 10
Image of the Lockheed EC-130H Compass Call
Left side view of the Lockheed EC-130H Compass Call
8 / 10
Image of the Lockheed EC-130H Compass Call
An operator station aboard a Lockheed EC-130H Compass Call
9 / 10
Image of the Lockheed EC-130H Compass Call
High-angled left side top view of a Lockheed EC-130H Compass Call in flight
10 / 10
Image of the Lockheed EC-130H Compass Call

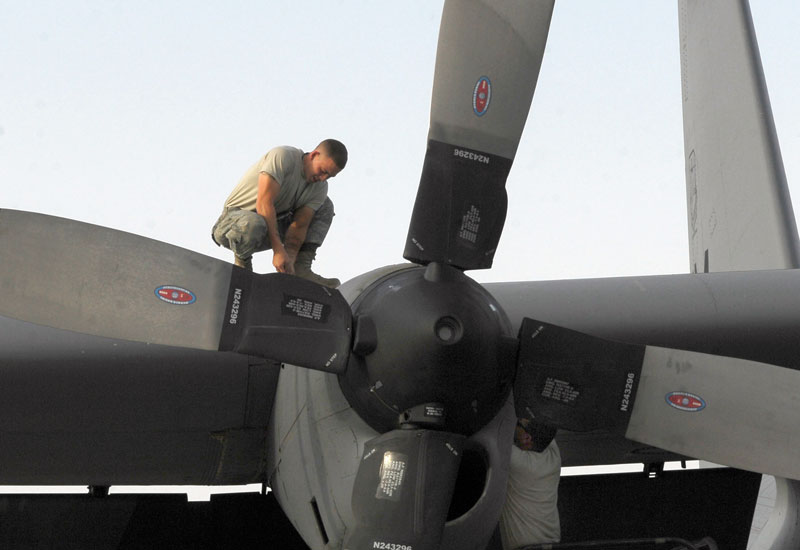

The turboprop propeller size is shown to good effect in this view
