Sikorsky H-34 / CH-34 Choctaw


Transport / Close-Support Helicopter (1954)


Aviation / Aerospace

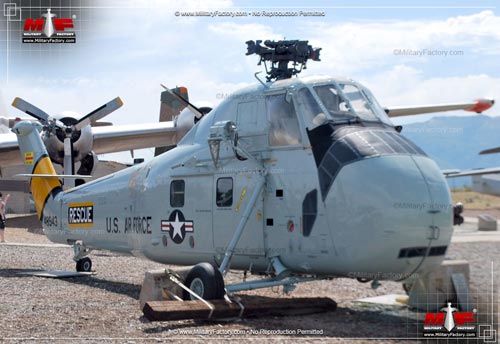

1 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
2 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
3 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
4 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
5 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
6 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
7 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
8 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
9 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
10 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
11 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
12 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
13 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
14 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
15 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
16 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
17 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
18 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
19 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
20 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
21 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
22 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
23 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
24 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
25 / 25
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.

Jump-to: Specifications

The Sikorsky H-34 Choctaw served with the USAF, US Army, USMC, USN and the USCG during its tenure in American hands.



Authored By: Staff Writer | Last Edited: 05/16/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.
Advertisements
The H-34 Choctaw was a multi-purpose, radial-powered utility helicopter produced by Sikorsky in the United States. It was developed as a replacement for the similar Korean War-era UH-19 Chickasaw series of helicopters and designed from the outset as an Anti-Submarine Platform for use by the United States Navy. Its operational capabilities eventually led to its use by the United States Army, United States Air Force, the United States Marine Corps and the United States Coast Guard. The Choctaw also went on to prove a commercial success, being fielded in the ranks by no fewer than 27 foreign partners including some limited license production of the type. The Choctaw saw notable service in the Vietnam War. First flight of the system was achieved on March 8th, 1954.

Visibly, the Choctaw wasn't going to win any design awards based on looks alone. It was a far cry from being the best looking of Cold War creations but it was an vast upgrade from the utilitarian approach of the H-19 Chickasaw before it. Design of the H-34 was stout, featuring a large set rounded nose with a raised flightdeck. The pilot and co-pilot sat in their raised positions ahead of the powerplants and above and forward of the passenger/cargo cabin. Entry into the system was provided for by a large rectangular access door (sliding aft) located on the starboard side of the lower fuselage. The underside of the fuselage maintained a predominantly straight appearance, giving the Choctaw its unique profile. The undercarriage was fixed and consisted of two main landing gears supported by exposed struts and a single tail wheel. The main landing gear systems were positioned just forward of the passenger cabin and fitted with a large single wheel each. Power was generally supplied by a Wright R-1820-84 Cyclone radial engine delivering up to 1,525 horsepower and driving a four-bladed main rotor and a four-bladed tail rotor. While the operational crew amounted to two personnel, the cabin had space for up to 16 combat-ready troops, 18 passengers or 8 medical litters. A top speed of 173 miles-per-hour was listed as was a range of 182 miles.

The Choctaw lived a long service live under many guises beginning as the HSS-1 "Seabat" for the United States Navy (in its Anti-Submarine Warfare role). This was coupled with the similar HUS-1 "Seabat" utility transport. The "Seabat" series consisted of US Navy Choctaws built to anti-submarine warfare specifications initially appearing as three Sikorsky S-58 models for evaluation as XHSS-1 prototype systems. The XHSS-1 then became the YHSS-1 before ultimately being re-designated to YSH-34G. The first production models became the HSS-1 "Seabat". The HSS-1N "Seabat" was of note as it was a dedicated bad weather/night version fitting improved autopilot and avionics systems. Seabats fell under the designation of SH-34 beginning in 1962.

The "Seahorse" series was operated primarily by the US Marine Corps and the US Coast Guard. These were noted by their designation of "HUS" as in the HUS-1, HUS-1A, HUS-1G, HUS-1L and the HUS-1Z. These eventually became the UH-34 "Seahorse" series beginning in 1962. The United States Coast Guard operated the Choctaw from 1959 through 1962.

The US Army fielded the H-34A model (later becoming the CH-34). It was the US Army, in fact, that gave the helicopter the name of "Choctaw" beginning in 1962 to which the USAF also applied to their delivered units. These were fitted with R-1820-84 radial engines of 1,525 horsepower. A staff transport version was also developed and noted for the use of "V" in its designation (VH-34A). The slightly different H-34B and H-34C soon followed as did several developmental weapon test beds. The US Army operated the Choctaw well into the early 1970's, by which time Sikorsky had completed all production of the type.
Advertisements
It should be noted that the US military restructuring of 1962 forced a change to all designations of operational aircraft at the time, hence the mentions above. As such, the H-34A were now referred to as the CH-34A. Likewise, the H-34B was now the CH-34B and so on. See the variants listing for a full report of the designation changes.

Commercial Choctaws were available in a variety of configurations. These were noted by their Sikorsky "S-" designations becoming the S-58 base cargo model, the S-58B improved cargo model, the S-58C passenger airliner/transport model, the S-58D freighter/airliner model, the S-58T conversion models fitted with turboshafts instead of radials, the S-58 "Heli-Camper" fitting Wright Cyclone R-1820-24 series engines and the "Orlando Airliner" 18-seat passenger transport.

The Choctaw was produced overseas via license-production in France and in Britain. The French received one batch of 134 Choctaws in parts from the United States and assembled them under the Sud-Aviation banner. A further 166 were manufactured on French soil as new-build Choctaws for the French Army, Navy and Air force, these again produced by Sud-Aviation. The British took to building their Choctaws under the Westland brand label and afforded the system the designation of "Wessex" with the Royal Navy becoming a notable operator of these machines (turbine-powered), utilizing them in the Anti-Submarine Warfare (ASW) role. Other British-produced Wessex's were marketed to foreign military and civilian operators.

Operators of the Choctaw covered the globe with use by Argentina, Australia, Belgium, Brazil, Canada, France, Germany, Greece, Indonesia, Japan, Israel, Italy, Philippines, South Vietnam, Spain, Turkey and Thailand to name a few.

Perhaps its most notable use was in the hands of US forces in the Vietnam War. Though initially delayed into action, some twenty US Army CH-34's made their way into the theater and was utilized wherever necessary. This included MEDEVAC roles, cargo transport for supply and resupply and as an offensive weapons platform. In the latter role, the CH-34 became one of the earliest attempts by American warplanners to arm a helicopter to be used as a gunship. These Choctaws (known as "Stingers") sported two M60C series general purpose machine guns and 2 x 2.75" 19-shot rocket pods comprising the TK-1 (Temporary Kit-1) later used on the successful Bell UH-1 "Huey" line of gunships. The Choctaw operated in the theater for a surprisingly lengthy period of time, proving a reliable workhorse in the process. Even the arrival of the fabled Huey systems did not force the Choctaw completely from the action as Choctaws were still in service with the USMC even after the introduction of the UH-1 series. All remaining CH-34's were eventually handed over to the South Vietnamese government as American involvement in the conflict drew to a close.

Some 1,800 Choctaws were eventually produced.

Specifications



Service Year
1954

Origin
United States national flag graphic
United States

Status
RETIRED
Not in Service.
Crew
2

Production
1,800
UNITS


Sikorsky Aircraft - USA / Westland - UK / Sud-Aviation - France
National flag of Argentina National flag of Australia National flag of Belgium National flag of Brazil National flag of Canada National flag of Chile National flag of France National flag of modern Germany National flag of Greece National flag of Indonesia National flag of Iran National flag of Israel National flag of Italy National flag of modern Japan National flag of Nicaragua National flag of Peru National flag of the Philippines National flag of Spain National flag of Taiwan National flag of Thailand National flag of Turkey National flag of the United States National flag of Uruguay National flag of Vietnam Argentina; Australia; Belgium; Brazil; Cambodia; Canada; Chile; Taiwan; Costa Rica; France; Germany; Greece; Haiti; Indonesia; Italy; Iran; Israel; Japan; Katanga; Laos; Nicaragua; Philippines; Peru; South Vietnam; Spain; Turkey; Thailand; United States; Uruguay
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Special-Mission: Anti-Submarine Warfare (ASW)
Equipped to search, track, and engage enemy underwater elements by way of specialized onboard equipment and weapons.
Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.
Commercial Aviation
Used in roles serving the commercial aviation market, ferrying both passengers and goods over range.
VIP Service
Used in the Very-Important-Person (VIP) passenger transport role, typically with above-average amenities and luxuries as standard.
Training (General)
Developed ability to be used as a dedicated trainer for student pilots (typically under the supervision of an instructor).


Length
56.7 ft
(17.28 m)
Width/Span
56.0 ft
(17.07 m)
Height
15.9 ft
(4.85 m)
Empty Wgt
7,899 lb
(3,583 kg)
MTOW
13,999 lb
(6,350 kg)
Wgt Diff
+6,100 lb
(+2,767 kg)
(Showcased structural values pertain to the Sikorsky H-34A / CH-34A Choctaw production variant)
Installed: 1 x Wright R-1820-84 radial engine developing 1,525 horsepower and driving a four-bladed main rotor and a four-bladed tail rotor.
Max Speed
173 mph
(278 kph | 150 kts)
Ceiling
9,498 ft
(2,895 m | 2 mi)
Range
182 mi
(293 km | 543 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Sikorsky H-34A / CH-34A Choctaw production variant. Compare this aircraft entry against any other in our database. View aircraft by powerplant type)
OPTIONAL, VARIOUS: Dependent upon on mission parameters. As a gunship, the Choctaw was fitted with:

2 to 4 x 7.62mm M60C General Purpose Machine Guns (GPMGs) on outboard structure assembly.
2 x 18-tube 2.75" rocket launchers on outboard structure assembly.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of aircraft aerial rockets


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 2
Mounting Points




-
-
-
-
5
-
-
-
4
-
-
-
-
HARDPOINT(S) KEY:
X

15
13
11
9
7
5
3
1
2
4
6
8
10
12
14


COLOR KEY:
Fuselage Centerline
Fuselage Port/Wingroot
Fuselage Starboard/Wingroot
Wing/Underwing
Wingtip Mount(s)
Internal Bay(s)
Not Used

Note: Diagram above does not take into account inline hardpoints (mounting positions seated one-behind-the-other).


H-34A - US Army Variant; fitted with R-1820-84 engine of 1,525 horsepower; 359 examples produced; 21 Army models sent to US Navy; re-designated to CH-34A beginning in 1962.
JH-34A - Developmental H-34A model used in weapons testing.

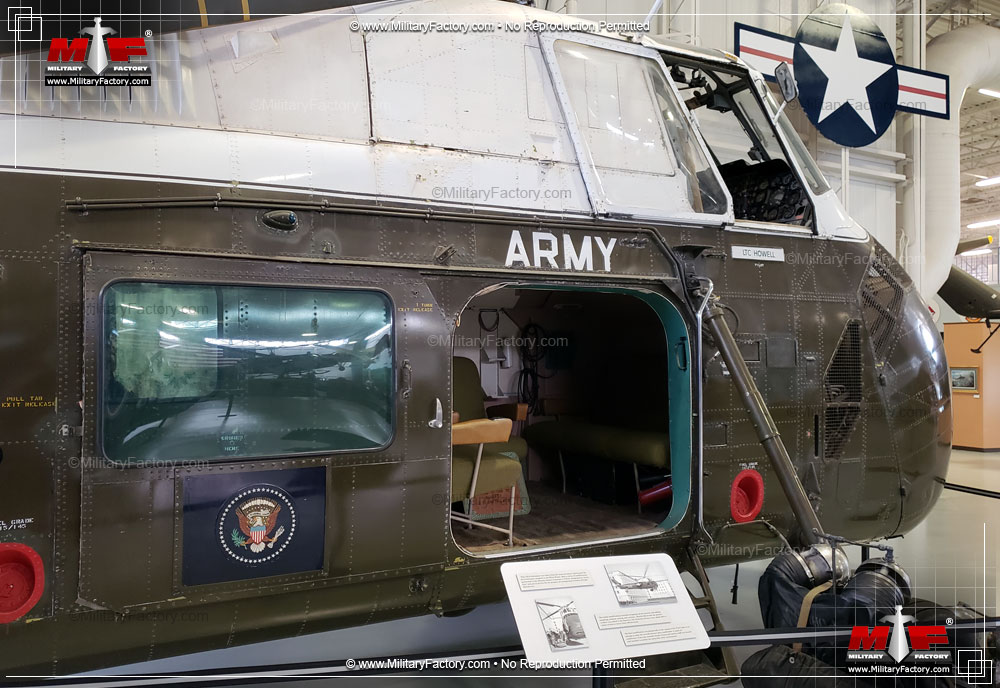

VH-34A - Staff Transport Model based on the H-34A/CH-34A.
H-34B - Based on H-34A/CH-34A production models with subtle changes; re-designated to CH-34B beginning in 1962.
H-34C - Based on H-34B/CH-34B production models with subtle changes; redesignated to CH-34C beginning in 1962.
JH-34C - Developmental Model based on H-34C/CH-34C used in weapons testing.
VH-34C - Staff Transport Model based on the H-34C/CH-34C.
HH-34D - Choctaws given USAF serial numbers for transfer under the Mutual Defense Assistance Act.
LH-34D - Re-designated from HUS-1L beginning in 1962.
UH-34D - Re-designated from HUS-1 beginning in 1962; at least 54 production examples appeared as "new-build" models.
VH-34D - Re-designated from HUS-1Z beginning in 1962; staff transport model.
UH-34E - Re-designated from HUS-1A beginning in 1962.
HH-34F - Re-designated from HUS-1G beginning in 1962.
YSH-34G - Re-designated from YHSS-1/XHSS-1 beginning in 1962.
SH-34G - Re-designated from HSS-1 beginning in 1962.
SH-34H - Re-designated from HSS-1F beginning in 1962.
YSH-34J - Re-designated from YHSS-1N beginning in 1962.
SH-34J - Re-designated from HSS-1N beginning in 1962.
UH-34J - Based on the SH-34J; sans Anti-Submarine Warfare (ASW) equipment; utility transport and trainer model.
HH-34J - Former USN models now utilized by the USAF.
VH-34J - Based on the SH-34J; staff transport model.
XHSS-1 "Seabat" - US Navy evaluation Choctaws; three examples delivered as such; later re-designated to YHSS-1 then becoming the YSH-34G beginning in 1962.
HSS-1 "Seabat" - Anti-Submarine Warfare platform for use by the USN; 215 examples produced; re-designated to SH-34G beginning in 1962.
HSS-1F "Seabat" - Developmental Model based on HSS-1; fitted with 2 x General Electric YT-58-GE engines; re-designated to SH-34H beginning in 1962.
YHSS-1N "Seabat" - Single Prototype Model; HSS-1 converted to HSS-1N; re-designated to SH-34H beginning in 1962.
HSS-1N "Seabat" - Bad Weather/Night Model based on HSS-1; fitted with revised autopilot system and avionics suite; 167 examples produced; re-designated to SH-34J beginning in 1962.
HUS-1 "Seahorse" - USMC Transport Model based on the HSS-1; 462 examples produced; re-designated to UH-34D beginning in 1962.
HUS-1A "Seahorse" - Amphibious Conversion Model fitted with pontoons; 40 examples produced; becoming the UH-34E beginning in 1962.
HUS-1G "Seahorse" - USCG model based on the HUS-1; six total examples produced; re-designated to HH-34F beginning in 1962.
HUS-1L "Seahorse" - Antarctic Conversion Models; four examples converted in this fashion; re-designated to LH-34D beginning in 1962.
HUS-1Z "Seahorse" - VIP Passenger Transport; 7 HUS01 models converted as such; re-designated to VH034D beginning in 1962.
S-58 - Commercial Cargo Transport Model
S-58B -Commercial Cargo Transport Model
S-58C - Commercial Utility Model
S-58D - Commercial Utility Model
S-58T - Commercial Passenger Transport with turboshaft engines.
S-58 "Heli-Camper" - Commercial Passenger Transport; fitted with Wright Cyclone R-1820-24 engines.
Orlando Airliner - Commercial Transport Transport with seating for 18.
Westland Wessex - British license-production Choctaws as used by the Royal Navy in the ASW.
