Boeing 747 (Jumbo Jet)


Long-Range Passenger / Heavy Cargo Transport


United States | 1970



"The classic Boeing 747 Jumbo Jet is still well-represented across varied forms throughout the airports of the world."

Power & Performance
Those special qualities that separate one aircraft design from another. Performance specifications presented assume optimal operating conditions for the Boeing 747-200B (Jumbo Jet) Long-Range Passenger / Heavy Cargo Transport.
4 x Pratt & Whitney JT9D-7R4G2 OR General Electric CF6-50E2 OR Rolls-ROyce RB211-524D4 engines delivering 54,750lbf, 52,500lbf and 53,000lbf of thrust respectively.
Propulsion
587 mph
945 kph | 510 kts
Max Speed
45,000 ft
13,716 m | 9 miles
Service Ceiling
8,342 miles
13,425 km | 7,249 nm
Operational Range
Structure
The nose-to-tail, wingtip-to-wingtip physical qualities of the Boeing 747-200B (Jumbo Jet) Long-Range Passenger / Heavy Cargo Transport.
3
(MANNED)
Crew
231.6 ft
70.60 m
O/A Length
195.5 ft
(59.60 m)
O/A Width
63.3 ft
(19.30 m)
O/A Height
383,604 lb
(174,000 kg)
Empty Weight
832,999 lb
(377,842 kg)
MTOW
Variants
Notable series variants as part of the Boeing 747 (Jumbo Jet) family line.
747 - Base Series Designation.
747-100 - Initial Production Model.
747-100B - Reinforced airframe; increased MTOW.
747-100SR - Short-range variant of 747-100 model series per Japanese request; lower fuel capacity; higher passenger capacity.
747 SP - Lengthened fuselage; long-range / high-capacity model requested by Iran Air and Pan Am; 45 examples produced.
747-200 - Increased engine power; higher take-off weight; increased range.
747-200B - "Improved" 747-200 model.
747-200C "Convertible" - Dual passenger or freighter roles (or combination of both roles) based on need.
747-200F - Freighter Version of 747-200 series; optional side cargo door; 105 ton capacity.
747-200M - Also known as the "747-200 Combi"; combination model; side cargo door; rear freight section; passenger front area.
747-300 - Stretched upper deck; addition of 2 x emergency doors; flight crew galley added behind flight deck; straight upper deck stairway; introduced in 1980.
747-300M - Stretched upper deck; cargo area in rear of main deck; increased passenger capacity.
747-300SR - "Short Range" version of 747-300 series; higher passenger capacity model for domestic flights.
747-400 - "Improved" transport; increased range; two-main cockpit; new cockpit glass; revised and simplified instrument panel; revised cabin interior; integrated tail fuel tanks; new engines; entered service in February of 1989 (passenger).
747-400 LCF "Dreamlifter" - Originally "747 Large Cargo Freighter / LCF"; Boeing-instituted transports for moving Boeing 787 Dreamliner components; based on 747-400; up to four examples procured.
747-8 - Formally "Boeing 747 Advanced"; fitted with same engine and cockpit as Boeing 787 "Dreamliner"; stretched fuselage for increased internal capacity.
747-8I "Intercontinental" - Passenger version of the 747-8 cargo model; 467 passenger capacity.
747-8F "Freighter" - Cargo Model based on the 747-8 design; overhead nose-door; 154 ton cargo-carrying capacity; entering service in 2009.
747-300 "trijet" - Undeveloped Variant; short-body fuselage; 3 x engines.
747-500X - Undeveloped Variant; increased wingspan to 250 feet; increased engine power; revised landing gears; 462 passenger capacity; range of 10,000 miles.
747-600X - Undeveloped Variant; increased wingspan to 279 feet; 548 passenger capacity.
747-700X - Undeveloped Variant; wings of 747-600X with widened fuselage; 650 passenger capacity.
747X - Undeveloped Variant; increased wingspan to 229 feet; Engine Alliance or Rolls-Royce engines; Boeing 777 flightdeck; 430 passenger capacity; 10,000 mile range.
747X "Stretch" - Undeveloped Variant; lengthened version of the 747X; 500 passenger capacity; 9,000 mile range.
747-400XQLR "Quiet Long Range" - Undeveloped Variant; featured engine noise reduction and efficiency techniques; 9,200 mile range.


Authored By: Dan Alex | Last Edited: 02/01/2023 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site; No A.I. was used in the generation of this content.

Thanks to advances in jet engine technology during the 1950s and 1960s, passenger air travel blossomed during this period of aviation history and one of the more monumental aircraft designs came to be the Boeing 747 - also known as the "Queen of the Skies" - which began commercial service in 1970. At the time of its inception, the then-risky private venture became the largest passenger jet airliner, doubling the size of any jet-powered airliner to date - a title that the model would hold for nearly 40 years until the arrival of the competing French-originated Airbus A380 series now taking hold. It also brought about a whole new name of oversized aircraft classified as "Jumbo Jet" and introduced the now-popular concept of "wide-body" in airliner travel. Despite its 1960s origins, the 747 continues to fly today (March 2014) and fills the product gap between the 777 and newer 787 "Dreamliner" models in the Boeing aircraft stable.

The original Boeing 747 - the first ever built - was leased as a showpiece to the Seattle-area "Museum of Flight".

In the 1960s, moving people from all points on the globe became a greater challenge than ever before as more and more took to the skies to travel and aircraft opened all new avenues. In turn, aviation companies fought to keep pace and jet technology provided the basis for ever-improved aircraft of greater size and performance. Pan American specified a new, long-range passenger hauler requirement in 1966 and Boeing engineers set to work on an all-new, four-engined design intended to surpass the capabilities of preceding models available anywhere. The resulting product would be a long-haul-route performer, capable of moving hundreds of souls across vast oceans. Christened as the "747", the initial vehicle went airborne for the first time on February 9th, 1969. Pan American ordered twenty-five of the new aircraft for its stable - the Boeing "gamble" has paid off - and the first of these was introduced with Pan Am on January 22nd, 1970.

Boeing engineers elected for a deep fuselage to house two distinct operating floors as well as integrate a lower cargo hold. The aircraft was essentially an upscaled Boeing 707 model though heavily modified to suit the performance and internal volume requirements. The cockpit was set aft of a short nose cone, offering a commanding view of the scenery ahead. Wings were low-mounted and noticeably swept and each assembly held a pair of underslung engine nacelles for the needed power output. The empennage was raised and capped by a single vertical tail fin with swept horizontal planes fitted low. The mammoth size of the 747 required a complex undercarriage with multiple wheels - the nose leg alone featured a dual-tire design. Large flaps were affixed to the wing trailing edges. In all, the 747 was an engineering triumph for its time.

The initial 747 subvariant became the "747-100" hauler of 1970 and early forms utilized Pratt & Whitney turbofans until 1975 to which the line began use of both Rolls-Royce and General Electric-branded turbofan engines to help broaden market appeal. The 747-100 group included the modified-frame "707-100B" with its higher payload capacity and the "747-100SP" ("Special Performance") model which featured a reduced-length fuselage to serve in the higher-altitude, longer-range, non-stop hauling role. Boeing eventually manufactured some 250 units of the 747-100 mark with the final entry coming in 1986.

Next followed the "747-200" which entered service in 1971. The 747-200 was on design tables alongside the 747-100 though development time ensured it entered service later. This mark featured greater payload capacity over that of the 747-100 models but were more or less physically indistinguishable. The 747-200 airframe was further modified to serve in the freighter role (with optional side loading door) or a combination passenger-cargo hauler as the 747-200 "Convertible". The 747-200 "Combi" was similar in its multi-mission approach. Production of 747-200 aircraft totaled 393 units with the last delivered in 1991.

Content ©MilitaryFactory.com; No Reproduction Permitted.


The 747-300 entered service in 1983 and brought about use of improved, fuel-efficient turbofan engines, a lengthened upper deck and increase in passenger seating. Again, passenger, freighter and combination forms were the call of the day and overall production totaled 81 units, the last added in 1990.

The 747-400 appeared with improved aerodynamic qualities which made it a more efficient and reliable long-haul performer. The 747-400F became a freighter-minded offshoot capable of hauling some 154 tons of cargo. The base 747-400 alone could seat 467 passengers in a three-class, twin-aisle seating arrangement. The 747-400ER was an "Extended Range" version and a combination ("Combi") and domestic-minded version were also added in time.

The 747 has served in governmental and military levels within the United States. Two examples operate as "Air Force One" (VC-25) with the American government, shuttling the President and staff around the globe wherever needed. The pair were delivered to the United States Air Force in 1990. A further four 747-200 airframes were taken on by the USAF for use in the Airborne Emergency Command and Control (AECC) role, outfitted with specialized equipment and personnel, allowing the President and his commanders an aerial platform from which to govern a war in the event of a nuclear attack on the United States and allies from the Soviet Union. "C-19" designated 747s in service with Civil Reserve Air Fleet (CRAF) for use by the American military when required to move passengers or cargo with short notice. Still another 747 airframe was used by the NASA program for shuttling the Space Shuttle reusable vehicle to and from American air bases as required. The 747 "Dreamlifter" is a four-strong group of 747-related airframes specially modified to transport whole components related to the 787 "Dreamliner" program. As such, they feature extremely deep hulls (creating an abnormal-looking fuselage shape) and a "swing-out" tail section for access to the hold. Beyond the central fuselage, this group retains much of the physical appearance of the original 747 line.

The 747 continues to serve with many airliner companies today (2014). The 747-8 "Intercontinental" is the latest of the 747 product line by Boeing and marketed in the passenger/freighter role with additional seating, all-modern electronics and avionics, improved fuel efficiency, new wings and a revised passenger cabin as well as increased cargo storage. The 747-8 can seat up to 500 persons in multi-class internal configurations and can haul thousands of pounds of cargo anywhere in the world. The 747-8 is currently approved for operations across 225 airports around the globe.

Total 747 production/deliveries have since reached 1,484 examples heading into April 2014. Operators of the key Boeing product have included Afghanistan, Argentina, Australia, Brazil, Canada, Egypt, France, Germany, South Korea, New Zealand, Pakistan, Russia, the United Kingdom and the United States (among many, many others - see variants section for full listing). For some operators, the more economical Boeing 777 has been used to replace the earlier, "classic" Boeing 747-100 and -200 marks. The Boeing 747 service life has not been without issue - having been involved in 49 whole-hull-loss incidents resulting in the loss of 2,852 people throughout its storied career. It has also served as the stage to some 31 total hijackings since its inception. Undoubtedly the sheer number of passengers carried by the 747 aircraft makes it a key target for such crimes.

Despite its mammoth size, the Boeing 747 still comes in with a wingspan shorter than the famous Hughes H-4 "Hercules" transport prototype of World War 2, the new French Airbus A380 and the Cold War-era Russian/Ukrainian Antonov An-225 "Mriya". The An-225 is also longer than any aircraft in aviation history.

Carrier Delta Airlines, which operates approximately sixteen 747s currently, expects to retire the entire fleet by the end of the decade.

Content ©MilitaryFactory.com; No Reproduction Permitted.

November 2020 - Thai Airways is set to place its entire Model 747 and Model 777 fleet up for sale.

January 2023 - The final Boeing 747 (type 747-8F) was delivered to operator Atlas Air on January 31st, 2023, marking an end to a stellar production run for the mammoth aircraft.

Operators
Global customers who have evaluated and/or operated the Boeing 747 (Jumbo Jet). Nations are displayed by flag, each linked to their respective national aircraft listing.

Total Production: 1,484 Units

Contractor(s): Boeing Aircraft Company - USA
National flag of Afghanistan National flag of Algeria National flag of Angola National flag of Argentina National flag of Armenia National flag of Australia National flag of Azerbaijan National flag of Bahrain National flag of Bangladesh National flag of Belgium National flag of Bolivia National flag of Brazil National flag of Cameroon National flag of Canada National flag of Chile National flag of China National flag of Colombia National flag of the Dominican Republic National flag of Egypt National flag of Ethiopia National flag of France National flag of Gabon National flag of Georgia National flag of modern Germany National flag of Greece National flag of Iceland National flag of India National flag of Indonesia National flag of Iraq National flag of Iran National flag of Ireland National flag of Israel National flag of modern Jamaica National flag of modern Japan National flag of Kazakhstan National flag of Kuwait National flag of Lebanon National flag of Libya National flag of Luxembourg National flag of Malaysia National flag of Morocco National flag of Namibia National flag of the Netherlands National flag of New Zealand National flag of Niger National flag of Nigeria National flag of Oman National flag of Pakistan National flag of the Philippines National flag of Portugal National flag of Qatar National flag of Russia National flag of the Kingdom of Saudi Arabia National flag of Singapore National flag of South Africa National flag of South Korea National flag of Spain National flag of Sri Lanka National flag of Sudan National flag of Sweden National flag of Switzerland National flag of Syria National flag of Taiwan National flag of Tajikistan National flag of Thailand National flag of Turkey National flag of Uganda National flag of the United Arab Emirates National flag of the United States National flag of Venezuela National flag of Yemen

[ Afghanistan; Algeria; Angola; Argentina; Armenia; Australia; Azerbaijan; Bahrain; Bangladesh; Belgium; Bermuda; Bolivia; Brazil; Brunei; Cameroon; Canada; Chile; China; Colombia; Comorros; Democratic Republic of the Congo; Dominican Republic; Egypt; Ethiopia; Fiji; France; Gabon; Gambia; Georgia; Germany; Greece; Guam; Iceland; India; Indonesia; Iran; Iraq; Ireland; Israel; Ivory Coast; Jamaica; Japan; Kazakhstan; Kenya; Kuwait; Lebanon; Libya; Luxembourg; Madagascar; Malaysia; Mauritius; Morocco; Namibia; Netherlands; New Zealand; Niger; Nigeria; Oman; Pakistan; Philippines; Portugal; Qatar; Russia; Saudi Arabia; Sierra Leone; Singapore; South Africa; South Korea; Spain; Sri Lanka; Sudan; Suriname; Sweden; Swaziland; Switzerland; Syria; Taiwan; Tajikistan; Thailand; Trinidad and Tobago; Turkey; Uganda; United Arab Emirates; United kingdom; United States; Venezuela; Yemen ]
1 / 4

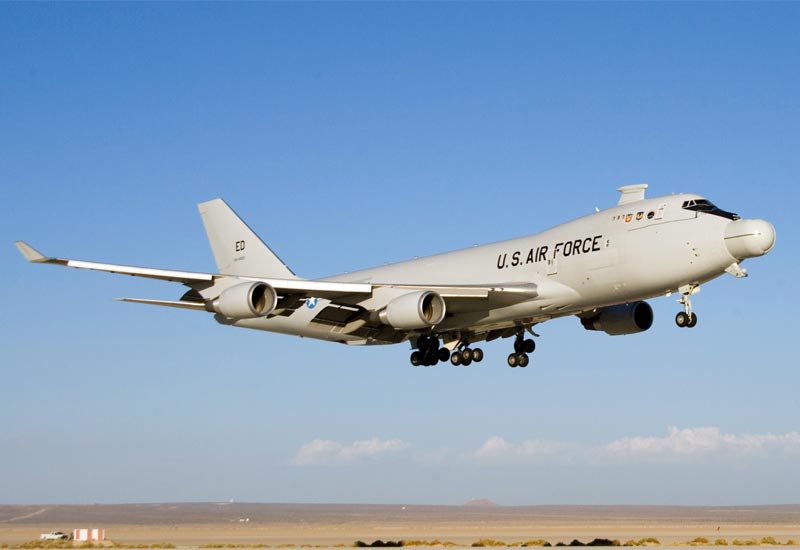

Image of the Boeing 747 (Jumbo Jet)
