Cessna A-37 Dragonfly (Super Tweet)


Light Attack / Observation and Control Aircraft [ 1967 ]



The jet-powered, straight-wing Cessna A-37 Dragonfly proved to be a successful close-support aircraft.



Authored By: Dan Alex | Last Edited: 08/20/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The United States Air Force (USAF) was already using the straight-wing, jet-powered Cessna T-37 "Tweet" as its primary trainer by the time of its involvement in the Vietnam War (1955-1975). The aircraft were introduced in 1957 and managed a role into 2009 with some 1,269 being built. As the American commitment to the war grew, so too did its needs and among these was for a stable, light-class ground attack platform of which a pair of T-37C models were evaluated for the role. From this was born a revised version of the Tweet family line, given the designation of "A-37" and the nickname of "Dragonfly" and over 600 of the type were eventually built/modified under the Cessna brand label. These went on to see service with the USAF, South Vietnamese forces, Chile and Peru among others.

Compared to the T-37, the A-37 was given several notable modifications for the light attack role. Its undercarriage and wings were reinforced and wingtip fuel tanks were increased in size to promote better loitering times and operational ranges. The fuselage also accepted an internal General Electric Minigun Gatling system for close-range strafing. The cockpit was updated to include modern USAF weapons support, navigation and communications equipment. Each wing was initially granted use of three hardpoints and cleared to carry various types of USAF ordnance in inventory. The crew of two remained from the original Tweet and were seated in a side-by-side arrangement complete with the original's dual control scheme. Vision was largely good thanks to the lightly-framed canopy. The aircraft was powered by 2 x General Electric J85-J2/5 turbojet engines with approximately 2,400lb of thrust output each.

From this revision was born the "YAT-37D" prototype used to prove the platform viable to USAF authorities. First flight was recorded in October of 1964 and, after a period of growing disinterest in the type which delayed service entry, mounting losses of other close-support systems forced USAF attention back onto the A-37 project. A second prototype was added during testing and this model included an additionally pair of weapons pylons for greater munitions support. The YAT-37D then graduated from its testing role into the "AT-37D" which then evolved to the finalized "A-37A" designation and subsequent production models.

As completed, the A-37 was given a wide, squat forward fuselage which tapered rather nicely to the rear. The wings were straight in their design and capped by wingtip fuel tanks. Underwing pylons were held well outboard of the fuselage. The twin engine arrangement, buried in the fuselage, was aspirated by a pair of small intakes to either side of the aircraft. The empennage included a single vertical tail fin with mid-set horizontal planes. The undercarriage was wholly retractable and short, leading to the aircraft having a very low profile when at rest.©MilitaryFactory.com
Advertisements
Thirty-nine conversions of T-37 aircraft made up the initial A-37A production models. These were then followed the definitive 577 "A-37B" model with its uprated General Electric J85-GE-17A turbojet engines of 2,850lbs thrust each. These aircraft also featured in-flight refueling capabilities as well as improved internal fuel stores to help offset the aircraft's inherent limited range. The airframe was further reinforced for the rigors of low-altitude flight and attack. The final Dragonfly variant to appear was the reconnaissance-minded OA-37B, born of the A-37B models, and serving in the armed reconnaissance role.

Over two dozen A-37As were delivered to Southeast Asia in August of 1967 for active evaluations in the theater by the USAF. These served primarily in the Close-Air Support (CAS) role, Forward Air Control (FAC), night attack, armed escort and armed reconnaissance roles. With a healthy stable of munition options, the little Dragonfly proved of great value as it could strafe targets with machine gun and cannon fire, drop conventional ordnance and fire unguided rockets via pods. While none were lost in the early-going, this period served to showcase some limitations of the system - namely in its operational reach. It was this that pushed a longer-endurance model that became the A-37B which arrived in prototype form during September 1967. Unlike the previously converted A-37A models, A-37B platforms were all "new-build" airframes from Cessna. Before the end of the Vietnam War, American A-37s were passed on to the South Vietnamese Air Force which, in turn, led them to be captured by the victorious North after the American withdrawal.

Beyond the Vietnam Conflict, other notable combat actions involving the A-37 was recorded during the Salvadoran Civil War where A-37Bs, delivered from U.S. stocks, were operated by the Salvadoran Air Force against rebels.

In all, operators of the A-37 proved plenty and many were delivered to customers across Central and South America - Colombia, Chile, Ecuador, El Salvador, Guatemala, Honduras, Peru and Uruguay. Southeast Asian operators included South Korea, South Vietnam, Thailand and Vietnam proper (captured specimens). Many A-37s exist as museum showpieces today while, rather amazingly, some 50 still operate in a frontline role (mainly across Central/South America).

Performance specifications included (A-37B) a maximum speed of 505 miles per hour, a cruising speed near 490 miles per hour and a ferry range out to 920 miles. Its combat radius equaled 460 miles while the aircraft could reach altitudes of nearly 42,000 feet. Rate-of-climb was approximately 7,000 feet per minute.

American Vietnam-era pilots affectionately referred to their Dragonflies as "Super Tweets" in honor of their origin.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1967

Origin
United States national flag graphic
United States

Status
RETIRED
In Limited Service.
Crew
2

Production
618
UNITS


Cessna Aircraft Company - USA
(View other Aviaton-Related Manufacturers)
National flag of Chile National flag of Colombia National flag of the Dominican Republic National flag of Ecuador National flag of Peru National flag of South Korea National flag of Thailand National flag of the United States National flag of Uruguay National flag of Vietnam Chile; Colombia; Dominican Republic; Ecuador; El Salvador; Guatemala; Honduras; Peru; South Korea; South Vietnam; Thailand; Uruguay; United States; Vietnam
(OPERATORS list includes past, present, and future operators when applicable)
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.


Length
28.2 ft
(8.60 m)
Width/Span
35.8 ft
(10.90 m)
Height
8.9 ft
(2.70 m)
Empty Wgt
6,206 lb
(2,815 kg)
MTOW
13,999 lb
(6,350 kg)
Wgt Diff
+7,793 lb
(+3,535 kg)
(Showcased structural values pertain to the Cessna A-37B Dragonfly production variant)
Installed: 2 x General Electric J85-GE-17A turbojet engines developing 2,850 lb.
Max Speed
506 mph
(815 kph | 440 kts)
Ceiling
41,765 ft
(12,730 m | 8 mi)
Range
932 mi
(1,500 km | 2,778 nm)
Rate-of-Climb
7,000 ft/min
(2,134 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Cessna A-37B Dragonfly production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
1 x 7.62mm GAU-2B/A Minigun in nose.

OPTIONAL (8 x Underwing hardpoints):
Conventional drop bombs, rocket pods, Napalm drop bombs, cluster bombs, gun pods and AIM-9 "Sidewinder" short-ranged air-to-air missiles.


Supported Types


Graphical image of an aircraft Gatling-style rotating gun
Graphical image of an aircraft machine gun pod
Graphical image of an air-to-air missile weapon
Graphical image of a short-range air-to-air missile
Graphical image of aircraft aerial rockets
Graphical image of an aircraft rocket pod
Graphical image of an aircraft conventional drop bomb munition


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 8


T-37 Dragonfly - Base Series Designation
YAT-37D - Prototype examples modified from two T-37C trainers.
YA-37A - YAT-37D redesignated; two examples
T-37A - Initial production model form converted T-3 Tweets; 39 examples; fitted with 2 x General Electric J85-GE-5 series turbojet engines; 7.62mm Minigun in nose assembly; 8 x underwing stores.
T-37B - Definitive production model numbering 577 examples; reinforced airframe; increased fuel stores; inflight refueling capable; 2 x General Electric J85-GE-17A series turbojet engines.
OA-37B - A-37B converted to armed reconnaissance.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
2 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
3 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
4 / 13

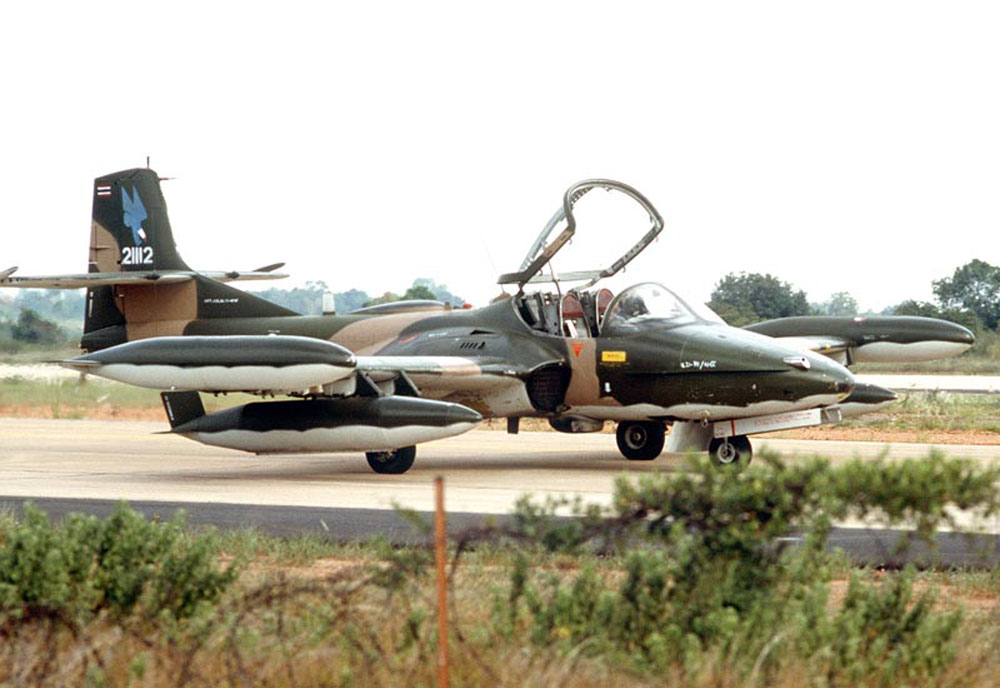

Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
5 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
6 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
7 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
8 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
9 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
10 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
11 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
12 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
13 / 13
Image of the Cessna A-37  Dragonfly (Super Tweet)
Image courtesy of the United States Department of Defense imagery database.
