North American Rockwell OV-10 Bronco


Observation / Light Attack / Close-Air Support (CAS) Aircraft [ 1966 ]



The North American Rockwell OV-10 Bronco provided a useful light strike and observation capability for various forces throughout the Cold War years.



Authored By: Staff Writer | Last Edited: 05/14/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The North American/Rockwell OV-10 Bronco was developed through the United States Marine Corps Light Armed Reconnaissance Aircraft (LARA) program to provide the service branch with a multi-faceted performer that could handle armed reconnaissance and light strikes while operating with high loitering times from short and rugged runways. North American produced the NA-300, which was ultimately selected to become the Bronco in August of 1964. Seven YOV-10A prototypes emerged from the development of the NA-300 . First flight of the Bronco was achieved on July 16th, 1965 and was followed by a production contract in 1966 for the initial OV-10A models.

Externally, design of the Bronco was very unique in nature, sporting a high-mounted, straight monoplane wing assembly with cut-off wing tips. Each wing fitted underslung engine nacelles with powerplants mounting three-bladed propeller systems. The undercarriage was conventional with two main gears (fitted with single wheels) retracting into each engine nacelle underside and a nose gear (also fitting a single wheel)retracting forward. The Bronco maintained a twin boom layout extending aft to two vertical tail fins with the booms joined by a high-mounted horizontal tailplane. The fuselage was made up of a central nacelle fitted between the engines and positioned at the middle of the wing span. Side fuselage "sponsons", containing the 7.62mm M60 machine gun armament, protruded from the lower rear fuselage area. The sponsons also contained four weapon station hardpoints underneath.

The pilot and co-pilot sat in tandem in a full-windowed "greenhouse-style" cockpit with generally great visibility from any direction but to the rear. The cockpit was positioned as such that forward seat was held out well past the engines themselves. Both cockpit positions were afforded ejection seats for improved crew survivability (helped along by the Broncos inherently rugged design and construction). The fuselage nacelle featured a cabin area at rear with space for could fit two medical litters and one medical attendant or five combat-ready infantrymen. Up to 3,200lb of supplies could also be taken aboard if need be.

As a close-support, low-flying, light strike aircraft, armament of the Bronco naturally became the system's forte. Standard fittings included 4 x 7.62x51mm M60C machine guns in fuselage sponsons (the prototype YOV-10D trialed a 1 x 20mm M197 cannon in their place). Up to 3,600lbs of mixed ordnance could be carried externally on one under-fuselage, four under-sponson and two underwing weapons store stations. Armament included air-to-surface rockets in 7- or 19-tube launchers firing 2.75" rockets or 2- or 4-shot launchers firing 5" rockets in either their Folding-Fin Aerial Rocket (FFAR - otherwise known as "Zuni") or WAFARs (Wrap-Around Fin Aircraft Rockets). The Bronco was also given the capability to engage aerial inbound targets by its provision for 2 x wing-mounted AIM-9 Sidewinder short-ranged air-to-air missiles. Other munitions include the mounting of the SUU-11/A or Mk 4 Mod 0 series gun pods while use of conventional bombs rounded out armament capabilities. External fuel tanks could take the place of armament if needed.

The OV-10A fitted two Garret-brand T76-G-410/412 series turboprops delivering up to 715 horsepower each engine. Performance included a top speed of 281 miles-per-hour, a cruise speed of 223 miles-per-hour, an operational range of 576 miles and a service ceiling upwards of 26,000 feet. The OV-10A represented the initial Bronco production model. The OV-10B and OV-10B(Z) were both target tugs produced for Germany, the latter fitted with a J85-GE-4 turbojet engine. Designations for the C-, E- and F-models were all for export to Thailand, Venezuela and Indonesia respectively and all based on the OV-10A production model.

The OV-10M was a modified OV-10A model exclusively for the Philippines Air Force. These Broncos were fitted with a new four-blade propeller system. Work was handled by Marsh Aviation.

The YOV-10D appeared as two modified OV-10A prototype forms for the USMC Night Observation Gunship System (NOGS) program during the Vietnam War. They were used operationally in the war and proved successful, being outfitted with an experimental 20mm XM197 three-barreled Gatling cannon in a belly-mounted turret and a combination FLIR/laser target designator in a nose-mounted turret. Engines were the standard 715 horsepower installations used prior. Despite their positive performance in combat, the design did not enter serial production and, instead, led to the OV-10D production variant which lacked the 20mm XM197 turreted cannon (the M197 was later featured on the Bell AH-1J Cobra attack helicopter).

The OV-10D-model was a second generation design developed for the United States Marine Corps based on the OV-10A, mounting FLIR for night operations, larger engines and larger fiberglass propeller blades. This model also featured a lengthened nose assembly for the extra equipment. Heat suppressors were also fitted to the exhaust stacks to reduce the threat of heat-seeking missiles. The OV-10D has since been upgraded in the OV-10+ variant program, also for the United States Marine Corps. This program consists of upgraded existing A- and D-models to a new standard that includes reinforced wing assemblies and new wiring throughout. The cockpit instrumentation has also been modernized. The lead in this upgrade project has been the MCAS Cherry Point Naval Air Rework Facility. The OV-10D fitted two Garrett T76-G-420/421 series turboprops delivering 1,040 horsepower each engine. Performance included an increased top speed of 288 miles-per-hour, an impressive range increase of 1,382 miles and a heightened service ceiling of up to 30,000 feet.©MilitaryFactory.com
The United States Air Force utilized the OV-10 primarily for its Forward Air Control role. The first USAF OV-10A was delivered in July of 1968 and was pressed into service in the Vietnam War on July 31st. These Broncos were part of the 19th Tactical Air Support Squadron taking part in active operational combat evaluation of the OV-10A through Operation Combat Bronco, conducting all sorts of combat-related sorties. By October of 1969, the Bronco was being fielded for the light strike role where its 4 x machine gun and rocket armament could be brought to effective bear. Laser targeting pods were eventually fitted to Broncos through project "Pave Nail". The USAF received up to 157 OV-10As during their usage term of which at least 64 of these were lost in the conflict. USAF Broncos were replaced by OA-10A Thunderbolt II and OA-37B Dragonfly observation/close-support aircraft in the early 1990's.

The United States Navy utilized the OV-10A Broncos as light attack aircraft, generally in support of related ground elements such as marine infantrymen and special force Navy SEAL teams. Operating as Light Attack Squadron FOUR (VAL-4), these Broncos were fielded in this fashion from April 1969 through April of 1972 to which some seven Broncos were lost.

The USMC was the first US service branch to receive the Bronco, delivered in both standard OV-10A and OV-10D night observation models. Combat losses in Vietnam amounted to 10 units.

The last combat engagement for United States Broncos was in Operation Desert Storm. Desert Storm proved a mish-mash of old and new aircraft technologies for the F-117 Nighthawk stealth fighter was equally fielded alongside the likes of Vietnam-era aircraft such as A-6 Intruders, F-4 Phantoms, B-52 Stratofortresses and the OV-10 Broncos. As the Bronco was originally designed for the rigors of tropical jungle operations, Desert Storm proved to be an "acting experiment" for the Bronco system. Some in the USAF were even reluctant to field the type for fear that the system would not match well in the modern conflict across unforgiving desert terrain.

Nevertheless, the USMC sent their Broncos into Saudi Arabia making up USMC VMO-1 and VMO-2. In the conflict, the first aircraft lost to enemy fire was an OV-10A from VMO-2. Since this aircraft was an A-model lacking the infrared suppressors on its exhaust stacks, it made relatively easy pickings for shoulder-launched heat-seeking missiles. These shoulder-launched mobile missile platforms were not yet a technological threat in the Vietnam conflict so it was a new threat to original Broncos int he Persian Gulf.

Despite both pilots ejecting safely, they were captured an tortured as Iraqi POWs till the end of the war. Typical Bronco weapon loadouts in the conflict included a single AIM-9 Sidewinder to counter enemy aircraft threats as well as rocket armament and their standard machine gun arrangements to counter ground elements. Broncos also spent their time assisting A-6 Intruders and AV-8B Harriers along with marking targets via white phosphorous rockets as well as spotting for naval-based artillery guns.

Over the run of her production life, operators of the OV-10 Bronco have also included Colombia, Germany, Indonesia, Morocco, Philippines, Thailand and Venezuela. Colombia, Philippines and Venezuela have kept active air branches of the type while Germany, Morocco and Thailand have since replaced theirs. Indonesian Broncos are currently listed as "grounded" and their replacement is forthcoming. Some American-fielded military-based Broncos have gone on to serve with other air forces as well as with the US State Department in drug interdiction roles throughout Latin America while others have also stood in as research assistants in NASA projects.

As of this writing (2012), interest in the OV-10 series is growing to the point that talk of restarting the production lines have been tossed about for both domestic and global markets. Boeing is currently considering such plans and would involve a complete redesign of the internal systems to bring the Bronco up to modern status. These revisions would include a complete all-digital cockpit and support for "smart" guided munitions. By all accounts, the external appearance of the new Bronco would stay the same as their Vietnam-era brethren.

Individual Bronco units carried a price tag of $480,000. Production completed in April of 1969.

Rockwell International merged with North American Aviation in 1967 to become North American Rockwell. Any future OV-10 production would fall under the Boeing Integrated Defense Systems banner as most of North American Rockwell's defense business had been sold to Boeing.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

March 2017 - Plans for a modernized OV-10 (the "OV-10X") have been scrapped as Boeing has chosen to not participate in the USAFss OA-X program.

October 2017 - The Philippines is actively seeking a replacement for its OV-10 Bronco line. The Brazilian Embraer Super Tucano is on the short list for the country with an initial procurement batch of six aircraft planned.

Specifications



Service Year
1966

Origin
United States national flag graphic
United States

Status
ACTIVE
In Limited Service.
Crew
2

Production
356
UNITS


North American Rockwell - USA
(View other Aviaton-Related Manufacturers)
National flag of Colombia National flag of modern Germany National flag of Indonesia National flag of Morocco National flag of the Philippines National flag of Thailand National flag of the United States National flag of Venezuela Colombia; Germany; Indonesia; Morocco; Philippines; Thailand; United States; Venezuela
(OPERATORS list includes past, present, and future operators when applicable)
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.


ARMORING
Survivability enhanced by armor allocated to protect pilot / crewspaces and / or critical operating systems.
MULTI-ENGINE
Incorporates two or more engines, enhancing survivability and / or performance.
RUGGED AIRFRAME
Inherent ability of airframe to take considerable damage.
EXTENDED RANGE PERFORMANCE
Capability to travel considerable distances through onboard fuel stores.
CREW-MANAGED
Beyond a pilot, the aircraft takes advantage of additional crew specialized in specific functions aboard the aircraft.
ENCLOSED CREWSPACE(S)
Features partially- or wholly-enclosed crew workspaces.
RETRACTABLE UNDERCARRIAGE
Features retracting / retractable undercarriage to preserve aerodynamic efficiency.


Length
41.7 ft
(12.70 m)
Width/Span
39.7 ft
(12.10 m)
Height
15.3 ft
(4.66 m)
Empty Wgt
6,969 lb
(3,161 kg)
MTOW
14,442 lb
(6,551 kg)
Wgt Diff
+7,474 lb
(+3,390 kg)
(Showcased structural values pertain to the North American Rockwell OV-10A Bronco production variant)
monoplane / shoulder-mounted / straight
Monoplane
Design utilizes a single primary wing mainplane; this represent the most popular mainplane arrangement.
Shoulder-Mounted
Mainplanes are mounted at the upper section of the fuselage, generally at the imaginary line intersecting the pilot's shoulders.
Straight
The planform involves use of basic, straight mainplane members.
(Structural descriptors pertain to the North American Rockwell OV-10A Bronco production variant)
Installed: 2 x Garrett T76-G-416/417 turboprop engines driving three-blade propellers.
Max Speed
281 mph
(452 kph | 244 kts)
Ceiling
23,999 ft
(7,315 m | 5 mi)
Range
228 mi
(367 km | 680 nm)
Rate-of-Climb
2,650 ft/min
(808 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the North American Rockwell OV-10A Bronco production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
4 x 7.62mm M60C General Purpose Machine Guns (GPMGs) in side fuselage sponsons.

OPTIONAL:
Mission-specific armament across seven (five fuselage, two underwing) can include a combination of the following:

2 x AIM-9 "Sidewinder" short-ranged, Air-to-Air Missiles (AAMs).
Conventional Lightweight Drop Bombs.
7-Shot 2.75" Folding-Fin Aerial Rockets (FAR) / WAFAR Rocket Pods.
19-Shot 2.75" FFAR/WAFAR Rocket Pods.
2-Shot 5" FFAR/WAFAR Rocket Pods.
4-Shot 5" FFAR/WAFAR Rocket Pods.
7.62mm SUU-11/A minigun pods.
Mk 4 Mod 0 Machine Gun Pods

OPTIONAL (SPECIAL):
External Fuel Tanks.
White Phosphorous Marking Rockets.
LUU-2 Parachute Flare Dispenser.

OF NOTE:
1 x 20mm M197 automatic cannon (fitted to YOV-10D).


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft automatic cannon
Graphical image of an aircraft Gatling-style rotating gun
Graphical image of an aircraft machine gun pod
Graphical image of an air-to-air missile weapon
Graphical image of a short-range air-to-air missile
Graphical image of aircraft aerial rockets
Graphical image of an aircraft rocket pod
Graphical image of an aircraft conventional drop bomb munition
Graphical image of an aircraft external fuel tank


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 7
Mounting Points




-
-
-
7
-
3
1
2
-
6
-
-
-
HARDPOINT(S) KEY:
X

15
13
11
9
7
5
3
1
2
4
6
8
10
12
14


COLOR KEY:
Fuselage Centerline
Fuselage Port/Wingroot
Fuselage Starboard/Wingroot
Wing/Underwing
Wingtip Mount(s)
Internal Bay(s)
Not Used

Note: Diagram above does not take into account inline hardpoints (mounting positions seated one-behind-the-other).


NA-300 - North American Company Model Designation.
YOV-10A - Prototype Designation; seven prototypes produced.
OV-10A - First Production Model
OV-10B - German Export Target Towing Variants; 6 examples delivered.
OV-10B(Z) - German Export Target Tug Model; fitted with J85-GE-4 series auxiliary turbojet in upper fuselage; 18 examples delivered.
OV-10C - Thailand Export Model; based on OV-10A
YOV-10D - Second Generation Bronco Prototype
OV-10D - Improved Bronco for USMC; revised airframe; fitted with FLIR night-vision and camera in elongated nose assembly; larger engines with fiberglass propellers; infrared exhaust suppression.
OV-10D "NOGS" - Proposed Bronco Program; "Night Observation Gunship System" model for potential use by the USMC; four OV-10A models converted to use a turreted FLIR system with slaved 20mm M197 cannon; funding issues cancelled further conversions.
NOS OV-10D - Evolved form of OV-10D NOGS program aircraft also fitting a laser target designator and removing the 20mm cannon armament.
OV-10D+ - Upgraded USMC Bronco A- and D-models; reinforced wings; revised wiring and instrument panel.
OV-10E - Venezuelan Export Model; based on OV-10A
OV-10F - Indonesian Export Model; based on OV-10A
OV-10M - Philippine Air Force Bronco; modified with four-bladed propellers as handled by the March Aviation company.
OV-10(X) - Proposed Modernized and Improved Light Attack Variant / CAS for the USAF; glass-cockpit; revised sensor equipment; provision for smart bombs.


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
92
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 300mph
Lo: 150mph
This entry's maximum listed speed (281mph).

Graph average of 225 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
North American Rockwell OV-10A Bronco operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Pie graph section
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (356)
356
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 15

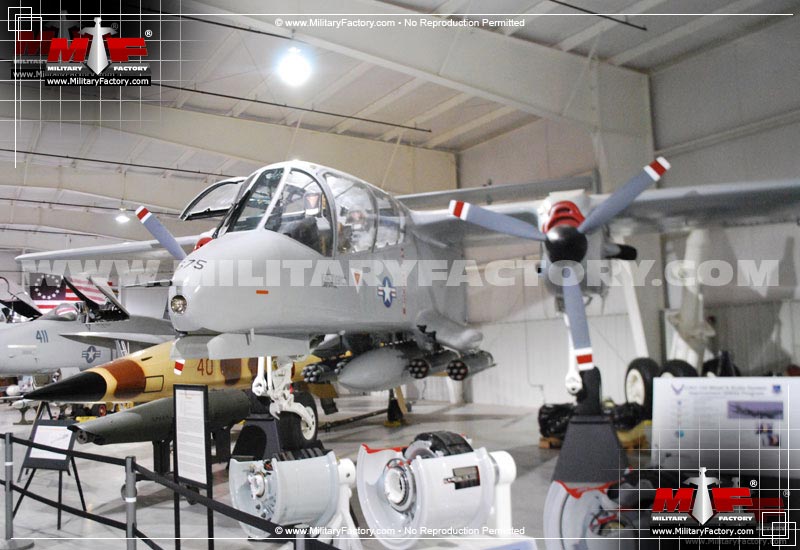

Image of the North American Rockwell OV-10 Bronco
Image copyright www.MilitaryFactory.com; no reproduction permitted
2 / 15
Image of the North American Rockwell OV-10 Bronco
Image copyright www.MilitaryFactory.com; no reproduction permitted
3 / 15
Image of the North American Rockwell OV-10 Bronco
Image copyright www.MilitaryFactory.com; no reproduction permitted
4 / 15
Image of the North American Rockwell OV-10 Bronco
Image copyright www.MilitaryFactory.com; no reproduction permitted
5 / 15
Image of the North American Rockwell OV-10 Bronco
Image copyright www.MilitaryFactory.com; no reproduction permitted
6 / 15
Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.
7 / 15
Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.
8 / 15
Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.
9 / 15
Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.
10 / 15
Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.
11 / 15
Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.
12 / 15
Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.
13 / 15
Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.
14 / 15
Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.
15 / 15

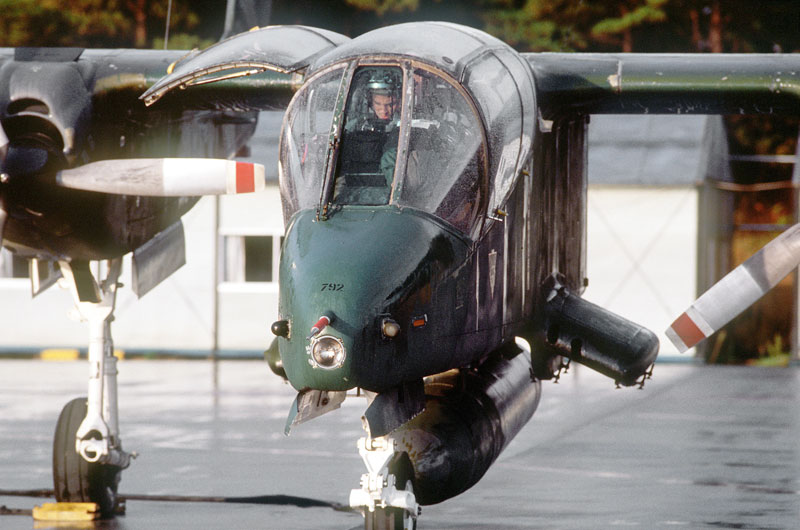

Image of the North American Rockwell OV-10 Bronco
Image from the United States Department of Defense imagery database.

Disclaimer | Privacy Policy | Cookies

2024 Military Pay Chart Military Ranks DoD Dictionary Conversion Calculators Military Alphabet Code Military Map Symbols

The "Military Factory" name and MilitaryFactory.com logo are registered ® U.S. trademarks protected by all applicable domestic and international intellectual property laws. All written content, illustrations, and photography are unique to this website (unless where indicated) and not for reuse/reproduction in any form. Material presented throughout this website is for historical and entertainment value only and should not to be construed as usable for hardware restoration, maintenance, or general operation. We do not sell any of the items showcased on this site. Please direct all other inquiries to militaryfactory AT gmail.com. No A.I. was used in the generation of this content; site is 100% curated by humans.

Part of a network of sites that includes GlobalFirepower, a data-driven property used in ranking the top military powers of the world, WDMMA.org (World Directory of Modern Military Aircraft), WDMMW.org (World Directory of Modern Military Warships), SR71blackbird.org, detailing the history of the world's most iconic spyplane, and MilitaryRibbons.info, cataloguing military medals and ribbons. Special Interest: RailRoad Junction, the locomotive encyclopedia.


©2023 www.MilitaryFactory.com • All Rights Reserved • Content ©2003-2023 (20yrs)
