FHI UH-2 (UH-X / Bell 412EPI)


Military Troop Transport Helicopter / Support Gunship [ 2022 ]



The Bell Model 412 was selected through the UH-X program for future frontline service in the JSDF.



Authored By: Staff Writer | Last Edited: 07/06/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
Fresh off the heels of becoming the first export customer of the tilt-rotor Bell V-22 "Osprey" platform, the Japanese Self-Defense Force (JSDF) has selected the Bell Model 412 as its new general transport amidst growing tensions with China in the South China Sea. The decision to go with the proven Model 412 is a sound one, promising low-cost procurement and on-time delivery. The Bell product - to be produced locally under license by Fuji Heavy Industries - beat out challengers from Kawasaki Heavy Industries (KHI) and Airbus Helicopters to secure Fuji a short-term future in the Japanese rotary-wing aircraft market. FHI owns an advantage in having teamed with Bell to produce earlier marks of the famous UH-1 "Huey" / "Iroquois" transport helicopter of Vietnam War fame. The product was one of the most iconic and popular helicopters of the Cold War decades. The last UH-1J built by FHI came in 2007.

The Model 412 formed the FHI submission for the JSDF's "UH-X" helicopter competition initially won by Kawasaki in 2012. Kawasaki lost its bid when the government cancelled its commitment due to bid-rigging accusations. Fuji had been pushing the Bell 412 since 2009 and was awarded the new contract in 2015 based on a proven track record, its experience with Bell products and its delivery and performance promises. The selection of the Model 412 means that the Huey line will continue in production and service for a time longer that ever envisioned, already over 55 years since the original single-engined UH-1 was introduced with American forces. A much-improved mark then followed with a twin-engine arrangement.

Fuji has manufactured the UH-1H as the UH-1J locally and these were produced with 2 x Allison T53-L-703 turboshaft engines of 1,800 horsepower each. A vibration-reduction system, night-vision equipment support and IR-based countermeasures were part of the local improvements.

In 1981, the Model 412 was introduced by Bell and since then over 870 examples have been delivered. This model was based on the earlier Bell 212 but had a composite four-bladed main rotor as part of its major improvements. The earlier Bell 212 featured a two-bladed main rotor. The Bell 412 also forms the basis of the Canadian Army's CH-146 "Griffon" series of 1995 to which 100 were built.©MilitaryFactory.com
Advertisements
The Model 412 has seen its fair share of variants produced since its inception. The Model 412 marked standard versions with Pratt & Whitney Canada (P&WC) PT6T-3B engines. The Model 412 EPI became a "glass cockpit" version outfitted with P&WC PT6T-9 electronically-controlled engines and represents the main American market variant. It is this model series that will be represented in the JSDF inventory. It is assumed that the Japanese military will remain largely faithful to the American product and will retain its PT6T engines (military designation of "T400") but with more modern onboard systems to suit JSDF over-water operations. The twin engine layout, a requirement of the UH-X program, will provide increased survivability over water when transporting Japanese troops to island hotspots in the region. These two engines driver power to a single-gearbox which, in turn, manages function of the four-bladed main rotor and a twin-bladed tail rotor (fitted to port side).

The UH-X Model 412 will no doubt also support mounting of various weapons including rocket pods, gun pods and door guns. The fixed landing skid will do away with a more complicated retractable undercarriage. Internal seating will be for two flight crew and up to eleven combat-ready troops. Beyond its obvious military applications, the UH-X is also expected to serve in humanitarian relief roles as called.

As of this writing (2015), the UH-X is expected to be procured in 150 total systems with development set to begin before the end of 2015. Production is set to span into the early 2040s extending the life of the UH-1 family that much further. A civilian market form will also be offered by FHI to help offset the gaps in the expected military batch orders. Possible customers may include regional partners in South Korea and elsewhere. Barring delays, the UH-X should become a JSDF mainstay in 2021.

The Japanese Navy is also currently on the lookout for its own general troop transport and has arranged a program under the "UH-X" designation as well, though the two programs are independent of each other adding an air of confusion.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

July 2018 - The Model 412EPI, now designated the "412EPX", has achieved certification. A prototype has been completed.

September 2018 - The UH-X remains on schedule with production by Subaru set to begin in April 2019 and first-deliveries set for 2021-2022.

December 2018 - The prototype UH-X flew for the first time on December 25th, 2018 completing a flight lasting 55 minutes over Utsunomiya. At least 150 UH-X units are required by the Japanese military to succeed an aging line of UH-IJ transports.

May 2021 - Subaru Corporation has delivered its first locally-produced Bell 412EPX example, ordered in 2019, to Iwate Prefecture Police force.

July 2022 - Japan forces have received their first production-quality UH-2 helicopters.

Advertisements

Specifications



Service Year
2022

Origin
Japan national flag graphic
Japan

Status
ACTIVE
In Limited Service.
Crew
2

Production
1
UNITS


Subaru (Fuji Heavy Industries - FHI) - Japan / Bell Helicopter - USA
(View other Aviaton-Related Manufacturers)
National flag of modern Japan Japan
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.


Length
55.8 ft
(17.00 m)
Width/Span
45.9 ft
(14.00 m)
Height
14.8 ft
(4.50 m)
Empty Wgt
6,790 lb
(3,080 kg)
MTOW
11,905 lb
(5,400 kg)
Wgt Diff
+5,115 lb
(+2,320 kg)
(Showcased structural values pertain to the Bell Model 412EPI production variant)
Installed: 2 x Pratt & Whitney Canada PT6T (T400) turboshaft engines developing 1,000 horsepower each and driving four-bladed main rotor and two-bladed tail rotor.
Max Speed
162 mph
(260 kph | 140 kts)
Ceiling
20,013 ft
(6,100 m | 4 mi)
Range
609 mi
(980 km | 1,815 nm)
Rate-of-Climb
1,350 ft/min
(411 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Bell Model 412EPI production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
OPTIONAL:
Support for rocket pods, gun pods, and door guns as required by mission.


Supported Types


Graphical image of an aircraft machine gun pod
Graphical image of aircraft aerial rockets
Graphical image of an aircraft rocket pod


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 2
Mounting Points




-
-
-
-
5
-
-
-
4
-
-
-
-
HARDPOINT(S) KEY:
X

15
13
11
9
7
5
3
1
2
4
6
8
10
12
14


COLOR KEY:
Fuselage Centerline
Fuselage Port/Wingroot
Fuselage Starboard/Wingroot
Wing/Underwing
Wingtip Mount(s)
Internal Bay(s)
Not Used

Note: Diagram above does not take into account inline hardpoints (mounting positions seated one-behind-the-other).


UH-2 - Base Series Designation.
Model 412 - Bell Helicopter product model based on the Bell Model 212 twin-engine UH-1 series.
Subaru-Bell UH-X - Original project designation; revised to XUH-2.
Subaru-Bell XUH-2 - Revised project designation from UH-X naming convention.
Model 412EPI
Model 412EPX - Commercial market version of the UH-X.


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
68
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 200mph
Lo: 100mph
This entry's maximum listed speed (162mph).

Graph average of 150 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Bell Model 412EPI operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (1)
1
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 2

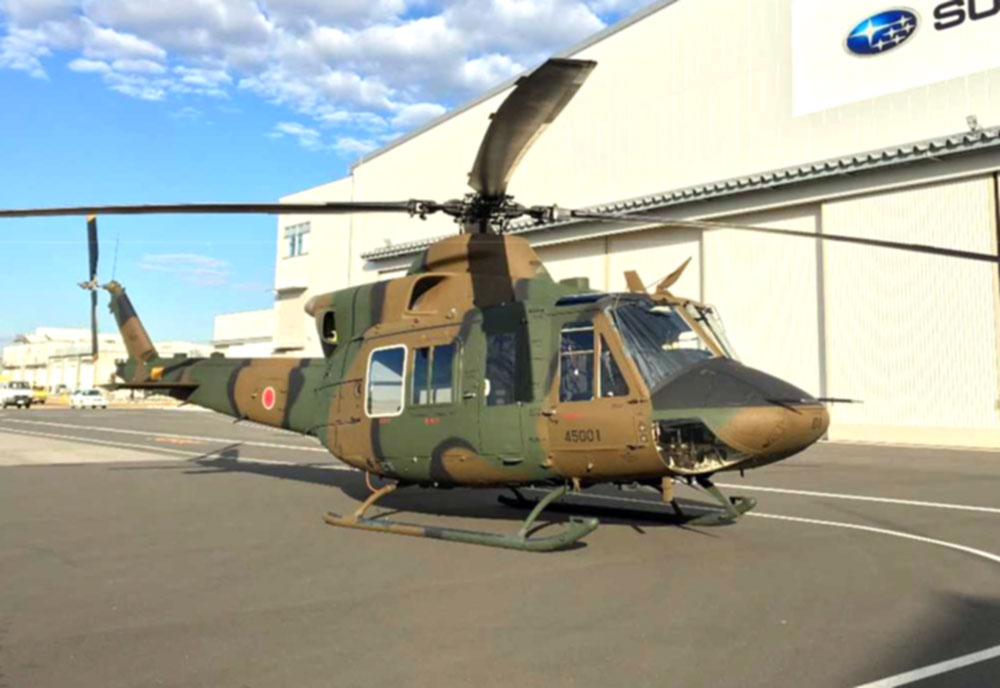

Image of the FHI UH-2 (UH-X / Bell 412EPI)
Image released by the Japanese Ministry of Defense.
2 / 2
Image of the FHI UH-2 (UH-X / Bell 412EPI)
Image from official Bell Helicopter marketing material; Model 412EPI configuration shown.
