Bell X-14 (Type 68)


Experimental VTOL Aircraft [ 1957 ]



The Bell X-14 VTOL test platform had an amazingly long life spanning from the late 1950s into the early 1980s.



Authored By: Staff Writer | Last Edited: 08/24/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
Vertical Take-Off and Landing (VTOL) with transitioning to conventional forward flying had filled the minds of aviation engineers for decades before the jet engine made such though possible. Bell Aircraft developed its Type 68 along these lines for testing by the United States Air Force (USAF) and NASA during the 1950s with the goal of utilizing a vectored thrust arrangement to provide the lift needed in taking off, landing, and hovering while also adapting the aircraft to conventional horizontal flight. While only one Type 68 was built for the program the vehicle generally flew trouble-free and was not retired until a crash in May of 1981. It was given the formal x-plane designation of "X-14".

To expedite construction and development of the vehicle, the Bell team delivered a rather gangly-looking aircraft that featured an open-air cockpit, long landing gear legs, low-mounted wing mainplanes, and dual engine layout consisting of a pair of British Armstrong Siddeley "Viper 8" turbojets rated at 1,750 lb thrust (each). The basic shape was formed from the body sections of a Beechcraft Bonanza civilian aircraft and a T-34 Mentor military trainer - both originally prop-powered airframes. Thrust deflectors were added to serve in guiding the resultant engine thrust forces in the required directions depending on the flight action at hand. A pair of circular intake openings dominated the nose section of the fuselage. Fuel tanks were fitted externally under each wing. Unfortunately for the pilot, no ejection seat was fitted as a weight-saving measure.

First flight of the X-14 was recorded on February 19th, 1957 and this accomplished the required vertical takeoff and landing action with a hovering effect managed in-between. The transition to forward flying was added in a test flight recorded on May 24th, 1958. In 1959, the aircraft was delivered to NASA for further testing and had its British engines replaced with General Electric J85 models producing the revised "X-14A" designation. Despite its appearance, the X-14 actually proved a valuable platform for VTOL research considering the Cold War was rife with VTOL projects in both the United States and Europe. NASA astronauts also trained some on the X-14 when personnel were expected to land the Lunar Lander on the surface of the moon during the Apollo rocket age.

Another engine change - this to the J85-GE-19 series - begat the revised designation of "X-14B" during 1971 which also saw an upgraded avionics suite added with fly-by-wire function. X-14B was a NASA test regular until it crashed on landing in a May 29th, 1981 accident - however, the crash yielded no injuries but did mark the X-14 as irreparable and the product's test life formally ended.

Only the three aforementioned designations were ever realized. A dedicated trainer was entertained under the "X-14T" designation but never furthered. Likewise, the "X-14C" was to include a more conventional enclosed cockpit but never evolved beyond the early design stage. The sole X-14 (X-14B) example was reclaimed from a scrapyard during 1999 by a private collector with the intent of bringing the aircraft back to showpiece condition.

Performance specifications for the X-14A (with British Viper engines installed) included a maximum speed of 172 miles per hour, a range out to 300 miles, and a service ceiling of 20,000 feet. Dimensions included a length of 7.6 meters, a wingspan of 10.4 meters, and a height of 2.4 meters.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1957

Origin
United States national flag graphic
United States

Status
RETIRED
Not in Service.
Crew
1

Production
1
UNITS


National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Length
25.0 ft
(7.62 m)
Width/Span
34.0 ft
(10.36 m)
Height
7.9 ft
(2.40 m)
Empty Wgt
3,086 lb
(1,400 kg)
MTOW
4,266 lb
(1,935 kg)
Wgt Diff
+1,179 lb
(+535 kg)
(Showcased structural values pertain to the base Bell X-14 (Type 68) production variant)
Installed: 2 x Armstrong Siddeley Viper 8 (later General Electric J85) turbojet engines developing 1,750 lb of thrust each.
Max Speed
172 mph
(277 kph | 150 kts)
Ceiling
19,997 ft
(6,095 m | 4 mi)
Range
300 mi
(482 km | 893 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Bell X-14 (Type 68) production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
None.


Supported Types




(Not all ordnance types may be represented in the showcase above)
X-14 - Base series designation; initial aircraft with Armstrong Siddeley Viper 8 engines.
X-14A - Fitted with General Electric J85 engines
X-14B - Fitted with General Electric J85-GE-19 engines
X-14C - Proposed variant with enclosed cockpit; never produced.
X-14T - Proposed trainer variant; never produced


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

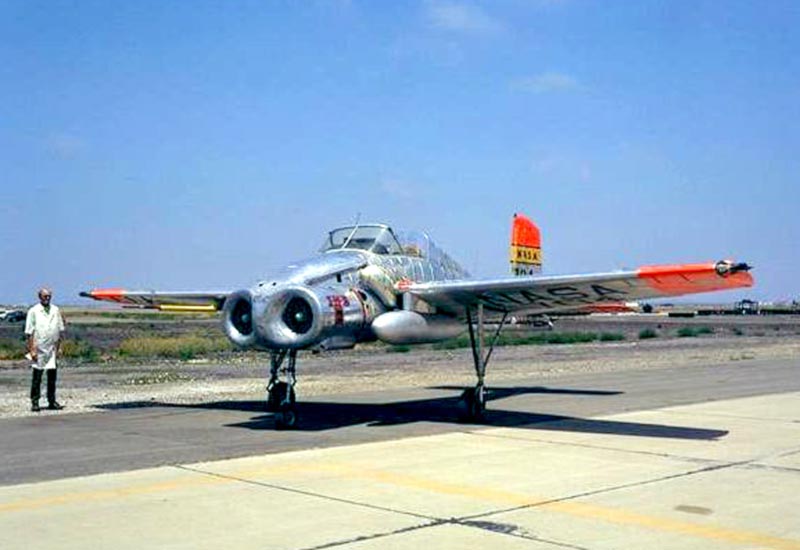

Image of the Bell X-14 (Type 68)
Image from the NASA image archives.
