Antonov An-26 (Curl)


Transport Aircraft [ 1969 ]



The Soviet-era Antonov An-26 Curl transport made a name for itself during the Cold War, produced in some 1,400 examples overall.



Authored By: Staff Writer | Last Edited: 03/02/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Antonov An-26 was developed from the An-24 of 1962 for the airliner passenger / general transport role. First flight of the An-26 product was on May 21st, 1969 and production spanned from then until 1986 to which 1,403 examples were ultimately realized. A plethora of variants then emerged and operators have ranged the globe with many airframes still in active service today (2014).

The original An-24 proved a design that was robust for the most harshest of conditions available across the vast Soviet empire - particularly in hard to reach areas of the frontier where few services were available. This propelled a new, modified form to gain traction, one in particular that included a powered loading ramp for ease of moving cargo pallets to and from the aircraft to awaiting bays or transport trucks. With a new ramp design finishing its testing phase, the installation commenced to produce the new working designation of An-26.

As finalized, the An-26 carried over much of the same form and function of the preceding An-24 model including its high-wing design and twin engine layout. The tail unit remained a single vertical fin with low-set horizontal planes. The flight deck was held at the extreme front end of the fuselage aft of a short nose cone. The cargo hold then made up a bulk of the available internal space remaining. Initial production models were recognized simply as "An-26" and were identified in NATO nomenclature as "Curl-A". A combo passenger/cargo-hauler form then became the An-26-100. The local Chinese variant became the Xian Y-7H military transport.

Other limited production variants followed including an Arctic reconnaissance platform with special mission equipment, an atmospheric air lab, an assault transport prototype, various testbeds, a fire-fighting platform, and other proposed (some unrealized) designs.

Operators have gone on to range from Angola and Belarus to Yemen and Zambia. Many military operators have since abandoned the type including Afghanistan, Pakistan, Poland, and Somalia. The United States operated An-26s through the 6th Special Operations Squadron of the United States Air Force from the period of 2003 to 2007. Soviet An-26s were passed on to the emerging states after the fall of the Soviet empire. Most current operators remain civilian in nature including fifteen operating in the Ukraine.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

March 2022 - Serbia has signed a deal to replace its aging fleet of Soviet-era An-26 tactical transports with CN295 types. Deliveries are expected to begin late 2023.

Specifications



Service Year
1969

Origin
Soviet Union national flag graphic
Soviet Union

Status
ACTIVE
In Active Service.
Crew
5

Production
1,403
UNITS


Antonov Design Bureau - Soviet Union
(View other Aviaton-Related Manufacturers)
National flag of Afghanistan National flag of Angola National flag of Bangladesh National flag of Belarus National flag of Bulgaria National flag of Chad National flag of China National flag of Cuba National flag of Czechia National flag of Denmark National flag of Ethiopia National flag of modern Germany National flag of East Germany National flag of Guinea National flag of Hungary National flag of Iraq National flag of Kazakhstan National flag of Kyrgyzstan National flag of Latvia National flag of Libya National flag of Lithuania National flag of Mozambique National flag of Namibia National flag of Nicaragua National flag of Niger National flag of Pakistan National flag of Peru National flag of the Philippines National flag of Poland National flag of Romania National flag of Russia National flag of Serbia National flag of Slovakia National flag of the Soviet Union National flag of Sudan National flag of Somalia National flag of Syria National flag of Tajikistan National flag of Tanzania National flag of Turkmenistan National flag of Ukraine National flag of the United States National flag of Uzbekistan National flag of Vietnam National flag of Venezuela National flag of Yemen National flag of Yugoslavia National flag of Zambia Afghanistan; Angola; Bangladesh; Belarus; Benin; Bulgaria; Cambodia; Cape Verda; Chad; China; Cuba; Czechoslovakia; Democratic Republic of the Congo; Denmark; East Germany; Ethiopia; Germany; Guinea-Bissau; Hungary; Iraq; Kazakhstan; Kyrgyzstan; Laos; Latvia; Libya; Lithuania; Madagascar; Mali; Moldova; Mongolia; Mozambique; Namibia; Nicaragua; Niger; North Yemen; Pakistan; Peru; Philippines; Poland; Puntland; Republic of Congo; Romania; Russia; Serbia; Slovakia; Somalia; Soviet Union; Sudan; Syria; Tajikistan; Tanzania; Turkmenistan; Ukraine; United States; Uzbekistan; Venezuela; Vietnam; Yemen; Yugoslavia; Zambia
(OPERATORS list includes past, present, and future operators when applicable)
TRANSPORT
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.


Length
78.1 ft
(23.80 m)
Width/Span
95.8 ft
(29.20 m)
Height
28.2 ft
(8.60 m)
Empty Wgt
33,069 lb
(15,000 kg)
MTOW
52,911 lb
(24,000 kg)
Wgt Diff
+19,842 lb
(+9,000 kg)
(Showcased structural values pertain to the base Antonov An-26 (Curl) production variant)
monoplane / high-mounted / straight
Monoplane
Design utilizes a single primary wing mainplane; this represents the most popular modern mainplane arrangement.
High-Mounted
Mainplanes are mounted at the upper-most position allowable along the dorsal line of the fuselage.
Straight
The planform involves use of basic, straight mainplane members.
(Structural descriptors pertain to the base Antonov An-26 (Curl) production variant)
Installed: 2 x Progress AI-24VT turboprop engines developing 2,820 horsepower each.
Max Speed
277 mph
(445 kph | 240 kts)
Ceiling
24,606 ft
(7,500 m | 5 mi)
Range
1,553 mi
(2,500 km | 1,350 nm)
Rate-of-Climb
1,575 ft/min
(480 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Antonov An-26 (Curl) production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
None.


Supported Types




(Not all ordnance types may be represented in the showcase above)
An-26 "Curl" - Base Series Designation; initial production aircraft.
An-26-100 - Passenger / cargo hauler
An-26A - Assault transport; single example.
An-26A SLK - Modernized variant
An-26B - Civilian cargo hauler
An-26B-100 - Passenger / cargo hauler
An-26BL - Alternative designation covering An-26L.
An-26BRL - Alternative designation covering An-26RL.
An-26D - Long-range variant
An-26KPA - Equipment testbed
An-26L - Testbed
An-26LL-PLO - Airborne testbed
An-26LP - Fire-fighting platform
An-26M - Airborne hospital
An-26P - Fire-fighting platform
An-26REP - Electronic CounterMeasures (ECM) platform.
An-26RL - Surveillance, reconnaissance and monitoring for Arctic circle.
An-26RR - Alternative designation covering An-26RT.
An-26RT - Communications relay platform
An-26RTR - Alternative designation covering An-26RT.
An-26S - VIP passenger carrier
An-26Sh - Navigator trainer platform
An-26ST - East German Air Force special-missions aircraft.
An-26Z-1 - Czech ELINT model
An-50 - Proposed jet-powered variant
Xian Y-7H - Chinese military transport model
Xian Y-14 - Chinese An-26 copy


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft

Images Gallery



1 / 1

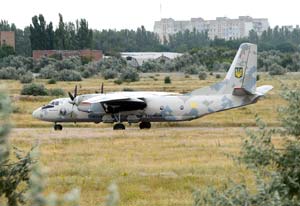

Image of the Antonov An-26 (Curl)
