Martin AM Mauler


Carrierborne Attack Aircraft [ 1948 ]



An order for 783 Martin Maulers became just 149 production examples with the end of World War 2 in 1945.



Authored By: Dan Alex | Last Edited: 05/21/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Martin AM Mauler was designed to a US Navy requirement during the critical middle years of World War 2. It appeared in competition with three other designs presented by Curtiss, Douglas and Kaiser-Fleetwings. By this time, the US Navy required a carrier-based single-seat, single-engine monoplane to undertake a dual-role position in its inventory, accepting and surpassing the capabilities of single-role dive bombers and torpedo bombers of the day. The aircraft would be powered by a Pratt & Whitney R-4360 Wasp Major radial piston engine. The US Navy commissioned two prototypes from the Glenn L. Martin Company on May 31st, 1944 under the developmental designation of "XBTM-1".

On August 26th, 1944, the prototype XBTM-1 completed its first flight. A second prototype was authorized and completed for additional flight testing thereafter. This was followed by some sixteen preproduction examples for formal evaluation and ironing out any recognized deficiencies in design. However, the war in Europe ended in May of 1945 with the Soviet capture of Berlin and the capitulation of Japan followed in August after the dropping of two atomic bombs, bringing about the formal end of World War 2. With the end of the war, the large procurement order that once numbered as many as 785 aircraft was decidedly trimmed down to a more manageable 132 production examples. This was followed in 1946 by a redesignation of the BTM-1 to AM-1 (generically as the "Martin AM Mauler"). The AM-1 proved fortunate, however, as many American aircraft projects were outright cancelled with the end of the conflict.

While initial deliveries to USN flight units began in July of 1947, technical issues with the tail hook design persisted which delayed the type's formal introduction until March of 1948. Once ironed out, the Mauler made a respectable - though limited - legacy for itself, proving a solid performer and handy hauler. It was noted that landing a fully-laden airframe required some skill even under experienced hands, particularly on the deck of a moving carrier. This was the cost of capability, however, for the Mauler was well-known for its ordnance-hauling capabilities cleared for up to a 4,500lb standard load out of externally-held ordnance though it was suggested that these airframes could field beyond double that if pressed as such.

Outwardly, the Mauler exhibited a typically designed propeller-driven aircraft frame with a front-mounted engine compartment, forward-set cockpit (under a clear view bubble canopy) and curved tail rudder atop the tapered empennage. The main wing assemblies were straight, low-mounted and set ahead of amidships with slight dihedral apparent. Horizontal planes were set low on the vertical tail fin to clear the airflow of the main wing elements. The radial piston engine powered a large, four-bladed propeller assembly, a deviation from the wide-accepted three-bladed types en vogue during the war. Perforated dive brakes were affixed to the trailing wing edges for the dive bombing/torpedo bombing roles. The undercarriage was wholly retractable and of the "tail-dragger" configuration with two main landing gear legs (single-wheeled) and a retractable tail wheel at rear. The tail hook intended to snag along one of the presented cables aboard American carrier decks was set under the tail in the conventional way and lowered when the aircraft was inbound and ready for landing. The main landing gear legs rotated and retracted flat against the wing undersides inboard of the wing's midway point. As a carrier-minded aircraft, the Mauler was purposely given a strong undercarriage and folding main wing units, the wings folding at their midway section, just outboard of the cannon housings.©MilitaryFactory.com
Standard armament of Maulers consisted of 4 x 20mm M2 cannons with 200 rounds per gun afforded, two cannons to each wing. Experience with machine gun-only armament in World War 2 showcased growing limitations especially against larger bomber-type aircraft, even when an aggressor was outfitted with six or eight such weapons. Cannon armament proved the future prior to the missile age and the Americans finally accepted this evolution (though the jet-era upcoming North American F-86 Sabre of the Korean War still fielded all-machine-gun armament). The cannons were set at the midway point of each wing with barrel muzzles protruding slightly ahead of the leading wing edges. External ordnance was primarily carried under the wings across multiple hardpoints. The Mauler was cleared to carry torpedoes and conventional drop bombs - one test flight featured 3 x torpedoes affixed as follows: one under the fuselage and two along the inboard section of each wings, just under the cannon housings. Drop bombs were then arranged six to a wing underside along a row of small hardpoints. It was this sort of formidable display that allowed the Mauler to accomplish both the dive bombing and torpedo bombing roles that proved so prevalent in the heavy fighting in the Pacific Theater of War against the Empire of Japan during World War 2.

Power for the Mauler was served through a Pratt & Whitney R-4360-4 Wasp Major radial piston engine outputting at 2,975 horsepower. This provided the airframe with a top speed of 367 miles per hour with a cruise speed closer to 188 mile per hour. Operational range was in the vicinity of 1,400 miles with a service ceiling measuring 27,000 feet. Rate-of-climb was listed at 2,780 feet per second. All specifications were roughly comparable to the competing Douglas A-1 Skyraider.

Hampered by the conclusion of war and its inherently beneficial wartime industry, the Mauler soldiered on as best it could. Douglas had begun development of the similar - though dimensionally smaller - carrier-based attack warplane all its own by the end of the war, first flight recorded on March 18th, 1945. This aircraft was already introduced in 1946 as the A-1 Skyraider and posed a direct threat to the future of the Mauler. Some 3,180 Skyraiders would eventually be purchased by the United States Navy compared to the far fewer Maulers.

With such a threats against its expansion, the Mauler led a rather limited service life ultimately overtaken by the Skyraider itself. Initially, Maulers served with US Atlantic-based fleets before being relegated to land-based service. From there, final Mauler units were in active in frontline service up until 1950 before being retired for good in 1953 to the tune of 151 examples completed. Seventeen new-build units were commissioned as two-seat radar countermeasures (Electronic CounterMeasures - ECM) platforms under the alternative designation of "AM-1Q". Martin proposed a Carrier Onboard Delivery (COD) version to the United States Navy as the JR2M-1 "Mercury" to no avail - these would have been specialized transport aircraft charged with resupplying at-sea carriers with fresh supplies - a role since handled by dedicated navalized aircraft and helicopters.

All told, the Martin AM Mauler was fielded through US Navy squadrons VA-44, VA-45, VA84, VA-85, VA-174 and VC-4. The aircraft was later used by reserve units during the vehicle's waning years. The Mauler was never used in anger, even through the Korean War (1950-1953), the stage set for the A-1 Skyraider's entrance into battle.

The original competing aircraft to the US Navy requirement - the Curtiss XBTC, Douglas XBT2D-1 and the Kaiser-Fleetwings XBTK-1 - all measured differently in their respective service lives. The XBTC was produced in just two prototype examples before being scrapped, the XBT2D-1 went on to become the legendary A-1 Skyraider of Vietnam War fame and the XBTK-1 fizzled after five prototypes. By this measure, the Martin Mauler was something of a limited success behind the A-1 Skyraider.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1948

Origin
United States national flag graphic
United States

Status
RETIRED
Not in Service.
Crew
1

Production
151
UNITS


National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Maritime / Navy
Land-based or shipborne capability for operating over-water in various maritime-related roles while supported by allied naval surface elements.


Length
41.2 ft
(12.55 m)
Width/Span
50.0 ft
(15.24 m)
Height
16.8 ft
(5.13 m)
Empty Wgt
15,432 lb
(7,000 kg)
MTOW
25,794 lb
(11,700 kg)
Wgt Diff
+10,362 lb
(+4,700 kg)
(Showcased structural values pertain to the base Martin AM Mauler production variant)
Installed: 1 x Pratt & Whitney R-4360-4 Wasp Major air-cooled radial piston engine developing 2,975 horsepower and driving a four-bladed propeller unit at the nose.
Max Speed
384 mph
(618 kph | 334 kts)
Ceiling
27,297 ft
(8,320 m | 5 mi)
Range
1,450 mi
(2,334 km | 4,323 nm)
Rate-of-Climb
2,780 ft/min
(847 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Martin AM Mauler production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
4 x 20mm M2 automatic cannons in wings (two guns to a wing).

OPTIONAL:
Up to 4,500lb of external ordnance. Cleared for aerial torpedoes and conventional drop bombs.


Supported Types


Graphical image of an aircraft automatic cannon
Graphical image of an aircraft conventional drop bomb munition
Graphical image of an aircraft aerial torpedo


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 15


XBTM-1 - Prototype designation; two examples completed.
BTM-1/AM-1 - Production model designation; 651 ordered; 132 examples produced.
AM-1Q - Radar countermeasures platform; 17 examples produced.
JR2M-1 "Mercury" - Proposed Carrier Onboard Delivery (COD) variant based on AM-1 airframe.


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
60
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 400mph
Lo: 200mph
This entry's maximum listed speed (384mph).

Graph average of 300 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Martin AM Mauler operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Pie graph section
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (151)
151
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 15

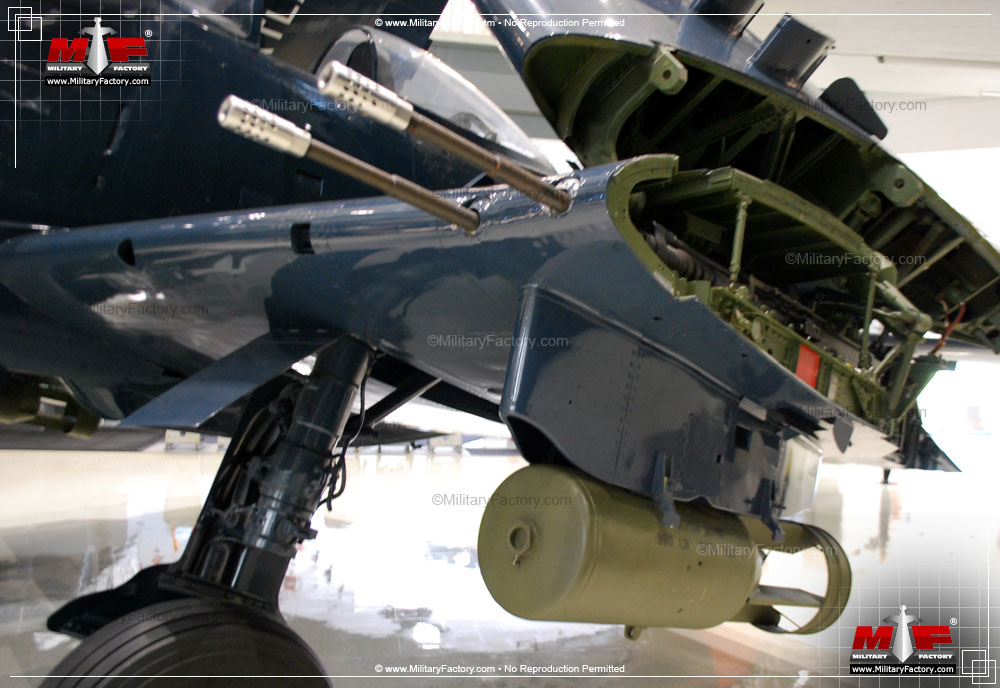

Image of the Martin AM Mauler
