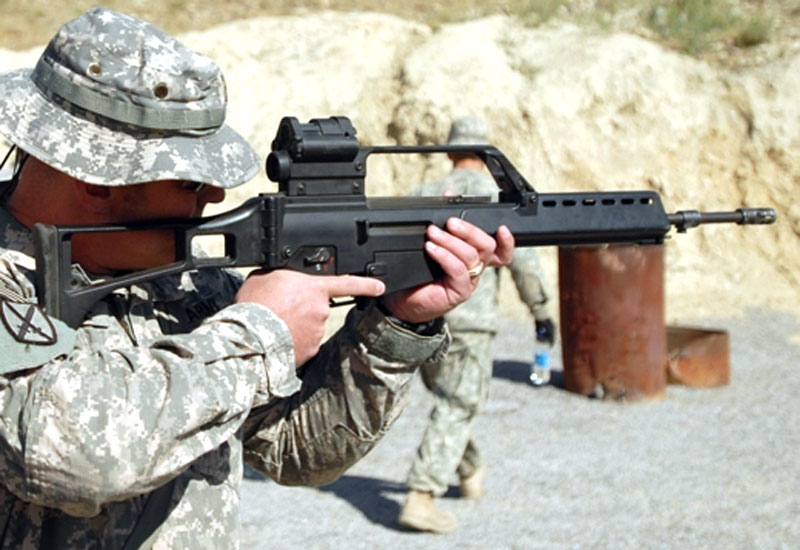

Heckler & Koch HK G36


Assault Rifle / Assault Carbine (1996)


Infantry Small Arms / The Warfighter

1 / 14
Image from the United States Department of Defense imagery database.
2 / 14
Image from the United States Department of Defense imagery database.
3 / 14
Image from the United States Department of Defense imagery database.
4 / 14
Image from the United States Department of Defense imagery database.
5 / 14
Image from the United States Department of Defense imagery database.
6 / 14
Image from the United States Department of Defense imagery database.
7 / 14
Image from the United States Department of Defense imagery database.
8 / 14
Image from the United States Department of Defense imagery database.
9 / 14
Image from the United States Department of Defense imagery database.
10 / 14
Image from the United States Department of Defense imagery database.
11 / 14
Image from the United States Department of Defense imagery database.
12 / 14
Image from the United States Department of Defense imagery database.
13 / 14
Image from the United States Department of Defense imagery database.
14 / 14
Image from the United States Department of Defense imagery database.

Jump-to: Specifications

The Heckler & Koch HK G36 assault rifle is the standard frontline service gun of the Germany Army.



Authored By: Staff Writer | Last Edited: 12/21/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.
The Heckler & Koch HK G36 series assault rifle was designed and developed to an exacting German Army requirement of the 1990s intended to replace the outgoing 7.62x51mm HK G3 series battle rifles - the standard German Army service rifle of the time. The 7.62mm cartridge held tremendous man-stopping capabilities and inherently good range but conformance to a NATO standard weapon firing the 5.56x45mm cartridge was in order. Heckler & Koch had given up the 4.7x33mm HK G11 "caseless" system after the collapse of the Soviet Union (funding and interest appropriately dried up). For a time, it was seen that the G11 could be paired with the 5.56x45mm HK G41 as the newest German Army additions, the G11 being fielded with frontline forces while the G41 stocked second line units. The measure was rather optimistic and would have undoubtedly proved an expensive short-term/long-term commitment as well as a logistical nightmare. Now that fate had intervened, the German Army was forced to quickly evaluate an all-new new HK design against that of the bullpup Steyr AUG. The HK design was selected as the winner and inducted into the German Army inventory as the "G36" in 1996.

The G36 was something of a departure for HK considering their previous designs centered primarily on the use of the tried-and-true roller-locked delayed blowback system. However, the German Army sought a lighter, less expensive solution so a new automatic system based on the proven gas-operated, rotating bolt action was developed utilizing plastics where possible. The result was a very modern-looking assault rifle that has since proven reliable, robust and adaptable. Design work on the G36 project spanned from 1990 to 1995 before seeing formal adoption into service.

Design of the G36 was decidedly Heckler & Koch with its all-black finish, steel and plastic construction and slab-sided - nearly featureless - receiver. The gas cylinder was fitted over the barrel assembly in a traditional fashion and shrouded over with an angular perforated heat shield/hand guard, the barrel protruding a short distance ahead. The barrel was capped by a slotted flash suppressor and could accept rifle grenades as normal, taking full advantage of the gas-powered firing action. The receiver held the major internal working components while the weapon featured a conventional pistol grip sans finger grooves with connected trigger guard encompassing a curved trigger assembly. The weapon fed from curved polymer magazines into a well fitted ahead of the trigger with the release/catch identified just aft of the well. The weapon fired the 5.56x45mm cartridge from an HK-standardized 30-round curved detachable box magazine though a 100-round Beta C-Mag double-drum magazine could be substituted for the heavy fire/suppression role (thusly becoming the "MG36 Light Support Weapon" with applicable heavy barrel and bipod installed). Of note is that the G36 was not designed to be compatible with STANAG magazines served by NATO, the HK polymer magazines being wholly proprietary which, in some cases, limited its foreign appeal. A large HK-style firing selector was fitted above both sides of the pistol grip (ambidextrous) and within easy reach of the firing hand's thumb for quick reaction. Fire modes included a safety, semi-automatic (single-shot) and full-automatic modes to suit the situation. The stock was hollowed out to reduce weight and cost and designed to fold over the right side of the receiver without impeding the firing function - this proving useful for airborne, special forces and vehicle troops who could appreciate a more compact size. The G36 was completed with a sighting block assembly incorporating a standard 3x optical sight for ranged firing as well as an integrated collimating reflex sight for quick-reaction firing within 120 meters. From this assembly, an integral carrying handle was devised running across the top of the receiver to its front end. The charging handle was situated inside of the carry handle's opening and accessible with either hand - another ambidextrous quality.
The G36 has since been modernized for the German Army under the "G36A2" designation. This form introduced a quick-detaching collimating sight device mated to a Picatinny accessories rail. The handguard was redesigned from aluminum with four accessory install points while the stock was of a more compact nature.

After introduction of the base G36 assault model, HK introduced the "G36E" for export (hence the "E" in the designation). However, this designation was eventually superseded by "G36V" (V = "Variant") some time later. The G36E/V marks were essentially the same German Army G36 service assault rifles with the exception of a NATO-standard bayonet mounting and a more limited 1.5x optical scope while also lacking the collimating reflex sight.

The "MG36" was a light machine gun modification of the base G36 system which fired from a 100-round Beta C-Mag dual-drum magazine. For the sustained fire role required of this type of weapon, a heavy duty barrel was utilized to counter the effects of overheating (deformation or cracking of the barrel assembly). The MG36 was of course offered for export as the "MG36E" though both have since been discontinued in production.

It was only natural to develop the G36 long gun into a shortened carbine as the G36K (K = "Kurz", meaning "short"). This compact weapon retained the key qualities of its assault rifle brethren save for a shorter barrel and forend assembly which reduced overall length. The resulting shorter barrel, however, lost the capability to fire rifle grenades though this could be offset by installation of the 40x46mm HK AG36 underslung grenade launcher. An accessories rail ran across the bottom of the forend to which various tactical accessories (foregrip, laser aimers, flashlights, etc...) could be fitted. Two versions of the G36K were eventually produced and these were differentiated from one another by one lacking the over-receiver carrying handle (iron sights with rail accessories support being fitted instead). The carbine variant existed in the export-minded G36KV (KV = "Kurz Variant") form.

A further evolution of the already-compact G36K produced the G36C (C = "Compact") which included an even shorter barrel and forend design while lacking the over-receiver carrying handle. A Picatinny rail was added for accessories mounting along the top of the receiver (as well as the sides and underside of the hand guard) and iron sights were used to compensate for the lack of integral sighting devices.

Since its inception, the G36 has proven globally popular and its use has gone beyond military-minded customers to include special forces, police and security forces. Beyond Germany, the G36 is actively operated by Australia, Belgium, Brazil, Canada, Croatia, the Czech Republic, Egypt, Finland, Georgia, Greece, Hong Kong, Iceland, Indonesia, Italy, Jordan, South Korea, Kosovo, Latvia, Lebanon, Libya, Lithuania, Malaysia, Mexico, Montenegro, Norway, Philippines, Poland, Portugal, Saudi Arabia, Serbia, Slovakia, Spain, Sweden, the United Kingdom and the United Sates. By many accounts, the HK G36 is a highly-regarded automatic weapon system.

Specifications



Service Year
1996

Origin
Germany national flag graphic
Germany

Classification


Assault Rifle / Assault Carbine


Heckler & Koch GmbH - Germany
National flag of Albania National flag of Australia National flag of Belgium National flag of Brazil National flag of Canada National flag of Croatia National flag of Czechia National flag of Egypt National flag of Finland National flag of Georgia National flag of modern Germany National flag of Greece National flag of Indonesia National flag of Iraq National flag of Italy National flag of modern Japan National flag of Jordan National flag of Lebanon National flag of Libya National flag of Malaysia National flag of Mexico National flag of Montenegro National flag of Norway National flag of the Philippines National flag of Poland National flag of Portugal National flag of the Kingdom of Saudi Arabia National flag of Serbia National flag of Slovakia National flag of South Korea National flag of Spain National flag of Sweden National flag of the United Kingdom National flag of the United States Albania; Australia; Belgium; Brazil; Canada; Croatia; Czech Republic; Egypt; Finland; Germany; Georgia; Greece; Hong Kong; Iceland; Indonesia; Iraq; Italy; Japan; Jordan; South Korea; Kosovo; Latvia; Lebanon; Libya; Lithuania; Malaysia; Mexico; Montenegro; Norway; Philippines; Poland; Portugal; Saudi Arabia; Serbia; Slovakia; Spain; Sweden; United Kingdom; United States
(OPERATORS list includes past, present, and future operators when applicable)
Automatic Function
Features a mechanical function to automate the firing action.
Assault Rifle
Modern class of long gun featuring select-fire properties, automatic internal function, and magazine feeding.
Fire Support
Capable of suppressing enemy elements at range through direct or in-direct fire.


Overall Length
999 mm
39.33 in
Barrel Length
480 mm
18.90 in
Empty Wgt
8.00 lb
3.63 kg
Sights


1x or 3x Optical Sight w Collimating Sight; backup iron sights


Action


Gas-Operated, Rotating Bolt

Rotating Bolt
System utilizes internal mechanism to lock the breech or rear barrel assembly prior to firing.
Gas-Operated
Gas-operated system is featured, typically involving a gas cylinder and rear-driven piston directing energy to the bolt component.
(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)


Caliber(s)*


5.56x45mm NATO

Sample Visuals**


Graphical image of a 5.56mm intermediate rifle cartridge
Rounds / Feed


30-Round Detachable Box; 100-round Beta C-Mag dual drum magazine
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.
Max Eff.Range
2,853 ft
(870 m | 951 yd)
Rate-of-Fire
750
rds/min
Muzzle Velocity
3,000 ft/sec
(914 m/sec)


G36 - Base Assault Rifle Model of the German Army.
G36A2 - Modernized G36 production model; quick-release reflex dot sighting device; Picatinny rail accessories support; G36C-style stock.
G36E - Export variant; featuring 1.5 x optical sight; sans collimating sight; NATO-standard bayonet mounting; redesignated to G36V.
G36V - Redesignation of G36E production models.
G36K ("Kurz") - Carbine with shorter barrel and handguard; accessories support; AG36 grenade launcher support.
G36KE - Export version of the G36K carbine model; redesignated to G36KV.
G36KV - Redesignation of G36KE
MG36 - Light Machine Gun modification; heavy barrel.
MG36E - Export variant of the MG36 LMG
G36C ("Compact") - Improved compact form of the G36K carbine; shorter barrel and handguard; reworked internals to compensate for shorter length; Picatinny accessories rail support; four point handguard accessories support.
