Heckler & Koch HK MP7

Submachine Gun (SMG) / Machine Pistol (MP) [ 2001 ]

The HK MP7 is designed as a very compact weapon system, firing the 4.6x30mm cartridge from a 20-, 30- or 40-round detachable box magazine.

Authored By: Staff Writer | Last Edited: 08/07/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

By and large, submachine gun class weapons were largely designed around existing pistol-type cartridges which, for their time, offered good man-stopping capabilities as targets were generally unarmored. However, throughout the 1980s, body armor technology allowed users wider access to lighter - yet still effective - protection which inspired new breeds of cartridge - and corresponding weapons - to take shape. NATO saw a similar need and issued a 1989 charge for such a cartridge, prompting several competing firearms firms to develop new solutions.

One submission became the Heckler & Koch HK MP7 chambered for the HK 4.6x30mm cartridge. The HK firm of Germany had long held a lead in the submachine gun market, their HK MP5 submachine gun (chambered in 9mm) becoming its ubiquitous product line. the HK MP7 followed the tried and proven measures that made the MP5 such a successful weapon including use of heavy duty composites and attention to design. However, the MP7 would be keenly different from the preceding MP5 design for it was intended to function as a machine pistol, submachine gun and "personal defense weapon" (PDW) all in one. Therefore, it could be issued to special forces operatives, paratroopers (airborne soldiers), security personnel, police units and second-line/logistical troops without loss of firepower.

The HK MP7 is, therefore, very compact and can be utilized in a traditional three-point hold (two-handed and up against the shoulder) or a standard two-hand hold as with a pistol. The weapon is relatively light-weight at 2.6lbs unloaded and maintains a running length of 25 inches. Utilizing the collapsing stock, the weapon can be brought down to a more manageable 16 inch length when space is a luxury. The barrel itself measures in at 7 inches while the receiver, at its thickest, is just 2 inches wide.

The key design element of the HK MP7 is the proprietary HK 4.6x30mm cartridge. The cartridge was first introduced in 1999 and began widespread use in 2001 is of a rimless bottleneck design. Its design is such that the cartridge offers very little recoil yet can still penetrate armored subjects at range - the smaller diameter being the driving quality here. Since its inception, the cartridge had evolved into a family of solutions including the basic penetrator, a hollow point offering, and a full metal jacket design. The HP MP7 is the only weapon that currently makes use of the HK 4.6x30mm cartridge aside from the cancelled HK UCP pistol. All told, the HK MP7 and UCP were direct competitors to the Belgian FN-Herstal FN P90 submachine gun and Five-Seven pistol - these chambered for the proprietary 5.7x28mm cartridge.

HK utilized the action of their successful HK G36 assault rifle in the HK MP7, this being a gas-operation system utilizing a short-stroke piston with a rotating bolt assembly. The prototype was known as the PDW (Personal Defense Weapon) and debuted in 1999. After a period of evaluation, it entered serial production under the company designation of HK MP7 in 2001.©MilitaryFactory.com
The MP7 is given a rate-of-fire of 950 rounds per minute with a 2,400 feet per second muzzle velocity. Effective range is approximately 200 meters. The weapon can be fed from a 20-, 30- or 40-round detachable box magazine, this being inserted in an UZI-style magazine well that makes up the pistol grip handle. Firing controls (selector, safety) are all ambidextrous to accommodate left- and right-handed users. Sighting is through a front and rear folding/adjustable iron sight installation as well as a Tritium-illuminated flip-up type night sight.

The external design of the HK MP7 series is typical Heckler & Koch, utilizing sharp clean lines in an all-black finish. There are Picatinny accessory rails along the top of the receiver and both sides (newer model) of the forend. The gas cylinder is mounted over the barrel which is largely shrouded by the forend cover. The magazine/pistol grip is mounted near the center of the design for a good balanced hold. This lets the rear of the receiver come over the forearm to which the stock is fitted. Being collapsible in nature, the stock can be brought in or pulled out as needed. One design feature of note is the folding forward vertical grip that is hinged to collapse along the underside of the forend, just ahead of the trigger. The trigger itself is encased in an oblong ring that allows use of a gloved hand. The fire selector switch is easily found near the thumb with the typical HK graphical settings in white and red. The single white bullet indicates the safety while the single red bullet allows for single-shot, semi-automatic fire. The four inline bullets indicate full-automatic fire.

The HK MP7 is designed to accepted a variety of tactical accessories including a sound suppressor over the barrel, flashlights, laser aimers, reflex sights and various scopes.

The MP7 design was updated with a new grip, smoother contours, side-mounted Picatinny rails and revised stock in 2003. From this point on, it carried the company model designation of "MP7A1". There exists a semi-automatic-fire-only version of the weapon - the "MP7-SF". Production of the MP7 continues as of this writing (2012).

To date, the MP7/MP7A1 is utilized by Albania, Australia, Austria, Croatia, Germany, Ireland, Italy, Jordan, Malaysia, Norway, Oman, South Korea, the United Kingdom and the United States. Many are being issued to special forces groups or police units. The weapon has seen combat actions in Afghanistan since the American-led invasion of 2001.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.


Service Year

Germany national flag graphic


Submachine Gun (SMG) / Machine Pistol (MP)

National flag of Albania National flag of Australia National flag of Austria National flag of Egypt National flag of modern Germany National flag of Ireland National flag of Italy National flag of modern Japan National flag of Jordan National flag of Malaysia National flag of Norway National flag of Oman National flag of Russia National flag of South Korea National flag of the United Kingdom National flag of the United States Albania; Australia; Austria; Egypt; Germany; Ireland; Italy; Japan; Jordan; Malaysia; Norway; Oman; Russia; South Korea; United Kingdom; United States
(OPERATORS list includes past, present, and future operators when applicable)
Special Purpose
Special purpose weapon for a specially defined battlefield role.

Overall Length
638 mm
25.12 in
Barrel Length
180 mm
7.09 in
Empty Wgt
4.19 lb
1.90 kg

Adjustable Iron Front and Rear; Optional Optics


Gas-Operated; Rotating Bolt

Rotating Bolt
System utilizes internal mechanism to lock the breech or rear barrel assembly prior to firing.
Gas-operated system is featured, typically involving a gas cylinder and rear-driven piston directing energy to the bolt component.
(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)


HK 4.6x30mm

Rounds / Feed

20-, 30- or 40-round detachable box magazine
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.
Max Eff.Range
656 ft
(200 m | 219 yd)
Muzzle Velocity
2,411 ft/sec
(735 m/sec)

HK PDW ("Personal Defense Weapon") - Prototype Designation.
HK MP7 - Base Series Designation appearing in 2001; base production model; top Picatinny rail.
HK MP7A1 - Refined MP7 model; revised pistol grip surface; shortened stockl revised receiver lines; trigger safety; side-mounted Picatinny rails.
HK MP7-SF - Semi-Automatic-Fire-Only Model

Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2

Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery

1 / 1

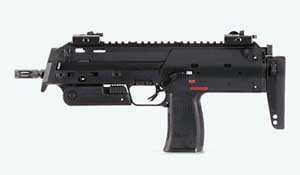

Image of the Heckler & Koch HK MP7
