40mm Single-Shot, Breech-Loading Under-Barrel Grenade Launcher (UBGL) [ 1969 ]



The M203 grenade launcher can be fitted to a variety of non-M16/M4 rifles, increasing its global use.



Authored By: Staff Writer | Last Edited: 04/09/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The M203 is a single-shot, reusable 40mm grenade launcher designed to extend the reach of the standard infantryman, allowing him to become a more balanced warfighter. The system is attached under the barrel of an assault rifle or carbine-type weapon and used without extensive modifications to the base weapon. The M203 debuted in 1969 and entered service shortly thereafter. Prior to the arrival of the M203, the US Army relied on the stand-alone M79 single-shot grenade launcher - particularly during the Vietnam War - but limitations for the operator were soon apparent: the operator had nothing more than a sidearm pistol as his secondary weapon. Likewise, the experimental Colt Firearms XM148 single-shot underslung grenade launcher (fitted to an M16 service rifle) became another viable option at the time and, although field-tested with mixed results during the conflict, the weapon failed to gain a larger foothold. This period of development ultimately led to AAI Corporation's M203 which subsequently replaced both the M79 and XM148 series.

The M203 was initially designed and developed specifically for use with the Colt M16 series of rifles and the related carbines of the time as these remained the standard issue firearms of the United States military. The grenade launching system was attached under the forward part of the gun, just under the barrel, and featured an integrated trigger unit. Since there was no pistol grip available, the operator would rely utilize the M16's magazine as the forward grip when actuating the M203. Iron sights for ranging were provided as standard and operated apart from the standard rifle sights.

As it saw more widespread use, the M203 proved itself a versatile weapon as showcased by its many operators across the globe. The weapon could fire eight distinct 40mm grenade projectiles including the M406 HE (High-Explosive) round, the M433 HE DP (High-Explosive, Dual-Purpose) armor penetrator round, the M585 White Star Cluster illuminator round, the M651 Tactical CS crowd control CS gas round, the M781 Practice round for training, the Star Parachute illuminator/signaler in white, green and red colors, Ground Marker in red, green and yellow for marking targets or positions and the Buckshot round for close-quarters room clearing. Each M203 weighed approximately 3 pounds and raised the overall weight of a standard M16A2 series rifle (already at 8.79lbs) to an acceptable operating weight of just under 12lbs. An effective precision range of 492 feet was reachable while an area out to 1,148 could be targeted depending on environmental conditions. The official maximum range of the M203 was 1,312 feet with a minimum effective range of just over 100 feet (the latter for safety reasons). M203 units were shipped from the manufacturer complete with leaf sights, quadrant range sight and the hand guard.

Variants of the M203 have included the original, base M203 for use with the M16A1, M16A3 and M16A3 series of rifles as well as the M4 and M4A1 series of carbine systems. This particular model featured a 12-inch barrel. The M203A1 was offered as a complement to the M4 and M4A1 and given a shorter 9-inch barrel length. The M203A2 was developed for use with the M16A4 MWS (Modular Weapon System) and fielded a 12-inch length. The M203 PI was developed to fit the M203 grenade launcher to non-M16/M4 systems. The M203 had proven so popular for its time that foreign weapon companies were forced to design indigenous M203 attachment options for specific rifles and submachine guns.

Though the Mk 19 automatic grenade launcher also fires the 40mm round, it is of a slightly different caliber (40 x 53mm) and fires at a higher velocity than the 40mm (40 x 46mm) round used in the M203.

The new M320 single-shot, double-action, side-loading grenade launcher is set to replace the M203 in service with US military forces, bringing an end to the M203's legacy in the US military inventory. Several other nations have also retired the type from service.

The M203 has been produced by AAI Corporation, Colt Defense, Diemaco, Airtronic USA, RM Equipment, US Ordnance, Knight's Armament Company and Lewis Machine & Tool Company. While AAI was the original producer of the weapon, they were not set up for large-scale manufacturing and thusly Colt was awarded the new production contract by the US DoD. AAI was responsible for only the first 10,000 units. Colt versions were faithful to the original AAI design.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1969

Origin
United States national flag graphic
United States

Classification


40mm Single-Shot, Breech-Loading Under-Barrel Grenade Launcher (UBGL)


AAI Corporation; Colt Defense; Airtronic USA; RM Equipment - USA / Pindad - Indonesia
(View other Arms-Related Manufacturers)
National flag of Australia National flag of Austria National flag of Bangladesh National flag of Brazil National flag of Canada National flag of Chile National flag of Denmark National flag of Egypt National flag of France National flag of Greece National flag of Indonesia National flag of Iraq National flag of Ireland National flag of Israel National flag of Italy National flag of modern Japan National flag of Jordan National flag of Lebanon National flag of Malaysia National flag of Mexico National flag of New Zealand National flag of the Philippines National flag of Portugal National flag of the Kingdom of Saudi Arabia National flag of Singapore National flag of South Korea National flag of Sri Lanka National flag of Sweden National flag of Thailand National flag of Turkey National flag of Ukraine National flag of the United Kingdom National flag of the United States National flag of Vietnam Australia; Austria; Bangladesh; Brazil; Cambodia; Canada; Chile; Columbia; Denmark; Egypt; France; Greece; Indonesia; Iraq; Ireland; Israel; Italy; Japan; Jordan; Lebanon; Malaysia; Mexico; New Zealand; Philippines; Portugal; Saudi Arabia; Singapore; South Korea; Sri Lanka; Sweden; Thailand; Turkey; Ukraine; United Kingdom; United States; Vietnam
(OPERATORS list includes past, present, and future operators when applicable)
Fire Support
Capable of suppressing enemy elements at range through direct or in-direct fire.
Special Forces
Qualities of this weapon have shown its value to Special Forces elements requiring a versatile, reliable solution for the rigors of special assignments.


Overall Length
380 mm
14.96 in
Barrel Length
305 mm
12.01 in
Empty Wgt
3.00 lb
1.36 kg
Sights


Quadrant Sight; Ladder Sight when fitted to rifle


Action


Single-Shot

(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)


Caliber(s)*


40x46mm

Sample Visuals**


Graphical image of a 40mm grenade cartridge
Rounds / Feed


Single-Shot
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.
Max Eff.Range
480 ft
(146 m | 160 yd)
Rate-of-Fire
6
rds/min
Muzzle Velocity
250 ft/sec
(76 m/sec)


M203 - Base Model; compatible with M16A1, M16A2 and M16A3 rifles as well as M4 and M4A1 carbines; 12-inch rifled barrel.
M203A1 - Compatible with M4 and M4A1 carbines; 9-inch barrel; also manufactured by Diemaco (Colt Canada) with different mounting system for the M16A1 rifle.
M203A2 - Compatible with M16A4 MWS (Modular Weapon System); 12-inch barrel.
M203 PI - Custom attachment for non-M16 rifles and M4 carbines.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 9

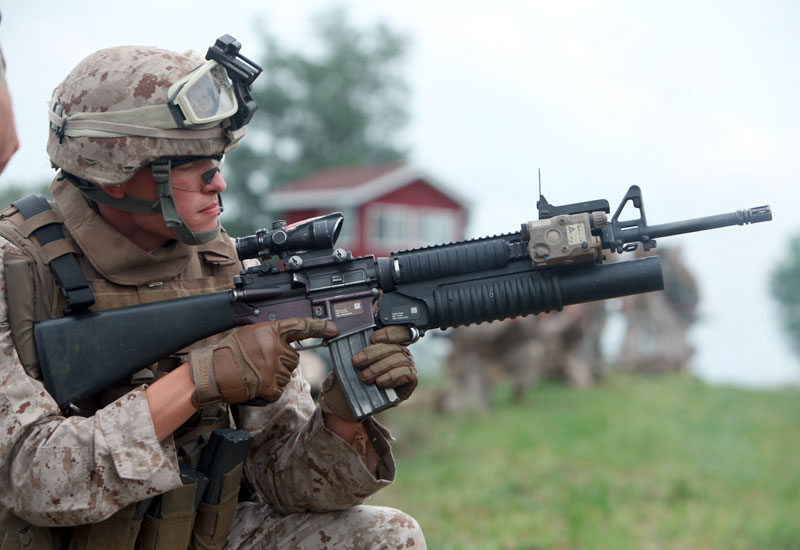

Image of the Colt / AAI M203
