Aerojet XM174

40mm Automatic Grenade Launcher Prototype [ 1968 ]

The XM174 was a prototype 40mm automatic grenade launcher trialled during the Vietnam War.

Authored By: Staff Writer | Last Edited: 05/12/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

The XM174 was an experimental 40mm automatic grenade launcher born from the fighting during the Vietnam War. The design emerged in 1968 from the Aerojet Ordnance Manufacturing Company and attempted to mate the form and function of the Browning M1919A4 air-cooled .30 caliber machine gun with the firepower of the 40mm grenade. The repeat-fire function would allow gunners to suppress enemy forces or dislodge dug-in foes through direct or indirect fire. The weapon was tested exclusively during the Vietnam conflict but was never formally adopted by US armed forces.

The XM174 retained much of the appearance of the original M1919A4 machine gun including its rectangular receiver, obvious charging handle and rear-set grip handle. The principle visual change was integration of the large barrel assembly intended to project the 40x46mm low-velocity grenade. This naturally forced a reworking of the internals of the M1919 system and ammunition was fed from a 12-round detachable drum magazine affixed to the left side of the receiver. Spent shell casings were ejected through a port along the right side. Sighting was through an iron flip-up aperture ahead of the receiver. The XM174 recorded a rate-of-fire of 350 rounds-per-minute firing from a basic recoil-induced action. Overall weight of the system was 7.25 kilograms.

The XM174 was trialled through several methods - as a portable crew-served implement and as a vehicle-mounted support weapon. For the former, the weapon was tied to a heavy-duty tripod assembly which supported traversal and elevation. The pointed feet allowed the weapon to be firmly dug into the soil, two legs reaching rearwards and a single leg at front. This then required the crew to sit behind the weapon in a conventional fashion or fire from a semi-prone position if under fire themselves. For the latter method, the weapon system was fitted to a pintle mount to allow for trainable fire. This meant that the XM174 could be installed across both land vehicles and aircraft such as helicopter gunships. In either case, the system provided a hefty amount of ranged firepower though the ammunition supply was rather limited. The XM174 was such a weapon that it could be used in an offensive or defensive manner as well, allowing for greater tactical flexibility.

The US Army, USMC and USAF Security Police elements all evaluated the type in service. Throughout the war, the 40mm M79 single-shot, break-action grenade launcher proved the norm for US forces. other developmental alternatives were issued though none formally accepted in number. The M79 eventually graduated to become the underslung 40mm M203 of today and the automatic grenade projecting system of choice went on to become the belt-fed Saco Defense Mk 19 first used in 1968.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.


Service Year

United States national flag graphic
United States


40mm Automatic Grenade Launcher Prototype

Aerojet Ordnance Manufacturing Company - USA
(View other Arms-Related Manufacturers)
National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
Fire Support
Capable of suppressing enemy elements at range through direct or in-direct fire.
Special Purpose
Special purpose weapon for a specially defined battlefield role.

Overall Length
712 mm
28.03 in
Empty Wgt
15.98 lb
7.25 kg

Flip-Up Forward Iron


Recoil-Operated; Repeat-Fire

(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)



Sample Visuals**

Graphical image of a 40mm grenade cartridge
Rounds / Feed

12-round detachable drum magazine
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.

XM174 - Base Developmental Series Designation; tripod- or vehicle-mounted.

Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2

Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery

1 / 2
Image of the Aerojet XM174

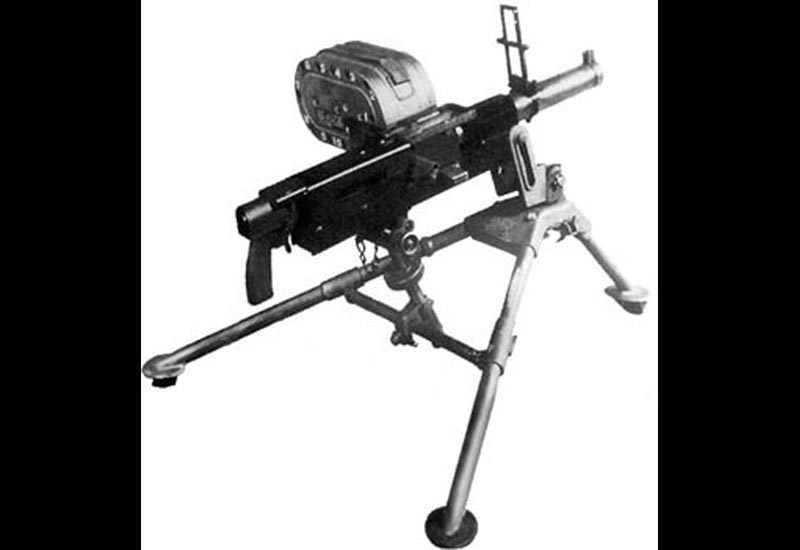

Rear right side view of the XM174 grenade launcher; note tripod mount and side canister
2 / 2
Image of the Aerojet XM174
Rear right side view of the XM174 grenade launcher; note ammunition canister removed
