USS Sturgeon (SSN-637)


Nuclear-Powered Attack Submarine (1967)


Naval Warfare

1 / 1
Image from the Public Domain.

Jump-to: Specifications

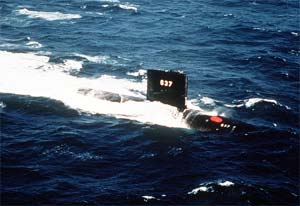

USS Sturgeon SSN-637, lead ship of the all-important Sturgeon-class, served the United States Navy from 1967 until decommissioned in 1994.



Authored By: Staff Writer | Last Edited: 11/20/2017 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.
At the heart of the American undersea fleet during the Cold War period (1947-1991) was the Sturgeon-class nuclear-powered attack submarine. Thirty-seven of the boats were built from the span of 1963-1975 and the group served from 1967 until 2004 - all since having been retired. The class was succeeded in service by the potent Los Angeles-class submarines and the USN submarine fleet was further reinforced with the arrivals of the Virginia-class and the limited-quantity Seawolf-class boats in time.

Sturgeon Lineage


The Sturgeon-class was essentially an enlarged and, ultimately, an improved form of the preceding Permit-class submarines. The Permit-class numbered fourteen boats in all and began appearing in the late-1950s, themselves an improvement of the earlier Skipjack-class of the mid-1950s. The main advantage of the newer Sturgeon-class was in the attention paid to noise reduction techniques and to improvements to the electrical systems - making for a more potent undersea vessel.

USS Sturgeon (SSN-637) became lead ship of the new class and the boat was ordered on November 30th, 1961, assigned to shipbuilder General Dynamics Electric Boat of Groton, Connecticut. Her keel was laid down on August 10th, 1963 and she was formally commissioned into service on March 3rd, 1967.

Specifics


As built, the boat displaced 4,010 tons under light loads and 4,310 tons under full loads. Her bow-to-stern length reached 292 feet and the beam measured 32 feet. The draught was 29 feet. Power was supplied by a General Electric S3G (Submarine, 3rd Gen, GE) nuclear reactor unit coupled to a Westinghouse S5W (Submarine, 5th Gen, Westinghouse) steam plant. This arrangement allowed the boat to reach speeds of up to 28 knots when submerged and its operational range was essentially unlimited (restricted primarily by onboard food stores and crew fatigue). The hull was tested to depths of 1,350 feet. Aboard there were 14 offers and 95 enlisted personnel. Armament was 4 x 21" (533mm) torpedo tubes all mounted at the bow.

Walk-Around


Externally, the boat held a traditional appearance as modern submarines go. The bow section was rounded to promote strong hydrodynamic qualities and the sail was positioned ahead of midships. At the stern there was a cruciform tailplane pattern with the propeller extended a short distance away. The hull was rounded in the usual way and the overall design a sleek and slim in appearance.

Service Record


Sturgeon's shakedown cruise took place along the American East Coast and in Caribbean waters during the latter part of the 1960s. In service, the Sturgeon-class boats were designated primarily for intelligence-gathering against the Soviet Union where their speed and silence were put to good use. This also involved supporting national security endeavors and special forces missions as called upon. USS Sturgeon was involved in Anti-Submarine Warfare (ASW) exercises for the very early part of her ocean-going career and then assisted in trying to locate the missing submarine USS Scorpion (SSN-589) near the Azores. In 1969 she was awarded the Meritorious Unit Commendation for her excellent service to date.

In 1971, the boat was given an overhaul to refresh her systems and other vital internal workings. More ASW exercises followed but the vessel ran aground near St. Croix in May of 1973 which damaged her bow and forced a return to the American East Coast for June of that year. From then on, she was part of the American Navy Atlantic force and managed training of future seamen afterwards before sailing to the Mediterranean. From there she partook in "ICEX 89" in Arctic waters and was refitted at Charleston, South Carolina later that year.

With the Cold War over following the demise of the Soviet Empire - and technology having passed her by - USS Sturgeon was decommissioned from service on August 1st, 1994 and struck from the Naval Register soon after. Once her powerplant was properly disposed of and the hull stripped of its military usefulness, she was sold off for scrap. Both her sail and her control station survived the scrapman's torch and these were put on display at the Naval Undersea Museum and the Submarine Force Library and Museum, respectively.

Specifications



Service Year
1967

Origin
United States national flag graphic
United States

Complement
109
PERSONNEL


Class
Sturgeon-class
Number-in-Class
37
VESSELS
Ships-in-Class


Sturgeon (SSN-637); Whale (SSN-638); Tautog (SSN-639); Grayling (SSN-646); Pogy (SSN-647); Aspro (SSN-648); Sunfish (SSN-649); Pargo (SSN-650); Queenfish (SSN-651); Puffer (SSN-652); Ray (SSN-653); Sand Lance (SSN-660); Lapon (SSN-661); Gurnard (SSN-662); Hammerhead (SSN-663); Sea Devil (SSN-664); Guitarro (SSN-665); Hawkbill (SSN-666); Bergall (SSN-667); Spadefish (SSN-668); Seahorse (SSN-669); Finback (SSN-670); Pintado (SSN-672); Flying Fish (SSN-673); Trepang (SSN-674); Bluefish (SSN-675); Billfish (SSN-676); Drum (SSN-677); Archerfish (SSN-678); Silversides (SSN-679); William H. Bates (SSN-680); Batfish (SSN-681); Tunny (SSN-682); Parche (SSN-683); Cavalla (SSN-684); L. Mendel Rivers (SSN-686); Richard B. Russell (SSN-687)


National flag of the United States United States (retired)
(OPERATORS list includes past, present, and future operators when applicable)
Submerged Attack
Traveling under the surface to search, track, and / or engage or reconnoiter areas.
Maritime Patrol
Active patroling of vital waterways and maritime areas; can also serve as local deterrence against airborne and seaborne threats.
Fleet Support
Serving in support (either firepower or material) of the main surface fleet in Blue Water environments.


Length
292.0 ft
89.00 m
Beam
32.0 ft
9.75 m
Draught
29.0 ft
8.84 m
Displacement
4,000
tons


Installed Power: 1 x General Electric S3G Core 3 nuclear reactor with 1 x Westinghouse S5W steam plant driving power to 1 x shaft astern.
Surface Speed
15.0 kts
(17.3 mph)
Submerged Speed
28.0 kts
(32.2 mph)
Range
Essentially Unlimited


kts = knots | mph = miles-per-hour | nm = nautical miles | mi = miles | km = kilometers

1 kts = 1.15 mph | 1 nm = 1.15 mi | 1 nm = 1.85 km
4 x 533mm (21") torpedo tubes (bow-facing) (Mk 48 torpedoes).

Support for UUM-44A SUBROC missiles, UGN-84A/C Harpoon anti-ship missiles, Mk 57 naval mines and Mk 60 CAPTOR naval mines.


Supported Types


Graphical image of an aircraft aerial torpedo
Graphical image of an aircraft anti-ship missile
Graphical image of a naval mine


(Not all weapon types may be represented in the showcase above)
None.
