USAV GEN Frank S. Besson, Jr. (LSV-1)


Logistics Support Vessel [ 1988 ]



Logistical support, as brought about through ships like the USAV Bessen, have always served as the backbone to any land army.



Authored By: JR Potts, AUS 173d AB | Last Edited: 07/19/2017 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
Today, up to 90% of all supplies delivered to US forces are by waterborne logistics. Army watercraft help provide Army and joint forces in theater opening missions or resupply operations. The Army has close to 300 watercraft vessels, built for varied missions, ranging from tugs to LSV's. The primary purpose is to provide delivery of all needed tonnage through fixed ports or beaches not accessible to deep draft vessels in order to sustain deployed forces.

In 1982, the US Army decided to officially name seagoing vessels built for, used by and manned by Army personnel. Up until that time, the US Army simply identified support vessels by their alpha-numeric assigned ID's. Logistic vessels needing to support Army operations by sea were divided into three types - LVS (Logistics Support Vessel), FS (Freight Supply Ship) and BDL (Beach Discharge Lighter). The decision in 1984 was to combine all types into one class - this being LVS. ©MilitaryFactory.com
The General Frank S. Besson-class is a Logistics Support Vessel (LSV) able to complete a number of mission types - from delivering humanitarian aid to island countries like Haiti in the Caribbean to service in the Middle East such as Iraq. The Besson-class is the largest support vessel in the United States Army and is designed to give the Army a global strategic capacity to deliver vehicles and cargo with a maximum gross tonnage of 2,000 short tons (though some vessels in the class have greater capacity). The ship has a flat bottom with bow and stern ramps and the ability to beach in as little as 6 ft of water. Operations in underdeveloped countries often have limited ports and capacity's to serve military sealift missions. The vessels that best support this type of use have shallow drafts able to transport varieties of cargoes with the ability to remain on station for long periods. The LSV has been built for supporting this mission. The bow, as advertised, was streamlined allowing the ship to move through rough water. When viewing the vessel from the front, the bow looks nearly flat and, with her flat bottom, the vessel's sea-keeping seems poor-to-average at best. She seems a perfect fit for costal missions and use in major rivers but perhaps not for those "deep blue" water voyages. However, her crew has already indicated two trips to Iraq with each crossing taking 45 days to complete from her home port.

The vessel's cargo deck is 10,500 square feet and designed to handle any vehicle currently in the US Army inventory and can carry 26 x main battle tanks or 30 x M2/M3 Bradley's. If the mission required it, the ship could hold 45+ x Light Armored Vehicles (LAV) or 37 x M1127 Strikers acting as an intra-theater line haul roll-on/roll-off cargo ship. On humanitarian-type missions, the load capacity can accommodate 48 or more 20 ft double-stacked cargo containers and, if needed, electrical power hook ups to handle refrigerated containers.

During Operation Desert Shield and Operation Desert Storm, Army watercraft delivered tanks, ammunition and food stuffs to many locations along the Persian Gulf Coast.

Logistics Over-the-Shore missions (LOTS) using the LSV's moving at 12 knots or less meant getting nowhere fast. The US Army decided a need was at hand and the TSV (or Theater Support Vessel) was devised. The TSV will fill the same mission as the LSV's except with a greater capacity (1,250-ton) and helicopter pads suitable for large military helicopters and a two-part, hydraulic vehicle ramp that allows rapid loading and discharge of vehicles from the stern or port/starboard sides. The greatest modification is speed increases up to four times as much as an LSV. Additional advantages include the ability to better maneuver at greater distances off shore than the LSV while also reducing the number of vessels needed for a particular mission. In 2002, the Army leased the ship "Spearhead" from an Australian company. If all works out, the fleet is expected to increase to 17 vessels.

Today, as with the men and women that have gone before them in times past, the US Army soldier needs to be resupplied with ammunition, food, parts and more in order to sustain the mission at hand. The US Army family of watercraft supplying this logistical need is just what the doctor ordered.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1988

Origin
United States national flag graphic
United States

Complement
31
PERSONNEL


Class
Besson LSV-class
Number-in-Class
8
VESSELS
Ships-in-Class


GEN Frank S. Besson, Jr. (LSV-1); CW3 Harold C. Clinger (LSV-2); GEN Brehon B. Sommervell (LSV-3); LTG William B. Bunker (LSV-4); MG Charles P. Gross (LSV-5); SP/4 James A. Loux (LSV-6); SSGT Robert T. Kuroda (LSV-7); MG RObert Smalls (LSV-8)


National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)


Length
273.0 ft
83.21 m
Beam
60.0 ft
18.29 m
Draught
12.0 ft
3.66 m
Displacement
13,910
tons


Installed Power: 2 x Electro motive Diesel engines (EMD) 16-646E2 producing 1,950 horsepower each at 999rpm and driving 2 x shafts.
Surface Speed
12.0 kts
(13.8 mph)
Range
12,875 nm
(14,816 mi | 23,844 km)


kts = knots | mph = miles-per-hour | nm = nautical miles | mi = miles | km = kilometers

1 kts = 1.15 mph | 1 nm = 1.15 mi | 1 nm = 1.85 km
5 x Browning M2 .50 cal heavy machine guns with 3,400 rounds.
4 x M2 5.56mm light machine gun with 7,530 rounds
21 x M16A2 5.56mm semi-automatic assault rifles
2 x MK19 40mm automatic grenade launcher with 384 LKD grenades.
2 x M203 40mm grenade launcher attached to an M16A2 with 48 HEDP grenades.
8 x 9mm pistols with 360 rounds
4 x Shotguns with 80 00 buck shells


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun


(Not all weapon types may be represented in the showcase above)
None.


Military lapel ribbon for the Cold War period
Military lapel ribbon for early warship designs
Military lapel ribbon for the Falklands War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Attack on Pearl Harbor
Military lapel ribbon for the Russian Invasion of Ukraine
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective naval campaigns / operations / periods.

Images Gallery



1 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)
Bow view of the USAV Besson with primary loading ramp
2 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)
USAV Besson bridge view detail
3 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)
View of bridge from bow ramp; smaller aft ramp light slit just visible in the darkness beyond
4 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)

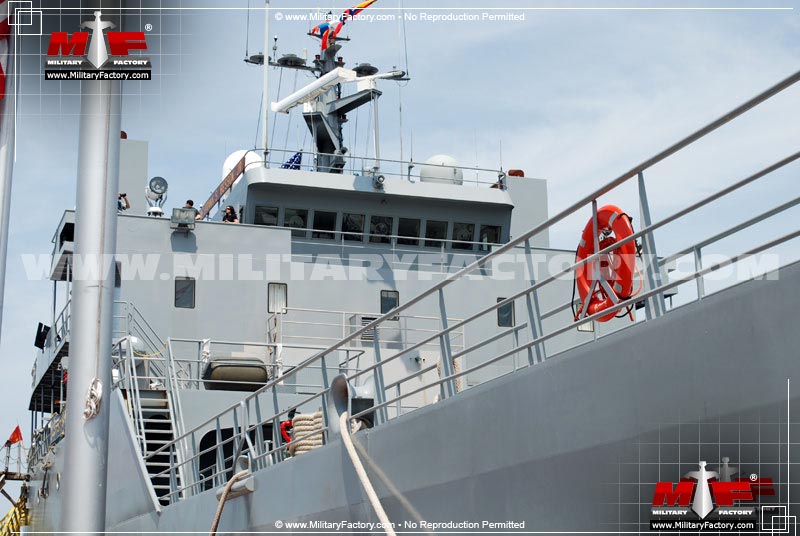

Viewing the bridge of the USAV Besson from down below
5 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)
Side bow view of forward ramp
6 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)
View of bow ramp from stowage deck showcasing crew causeway
7 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)
View of bow from bridge - note gang ways along both sides, winches and containers
8 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)
Small hallways aboard the USAV Besson allow for good footing in rough seas
9 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)
Zodiac rubber rescue boat aboard the USAV Besson
10 / 10
Image of the USAV GEN Frank S. Besson, Jr. (LSV-1)
Detail view of the Mk 19 40mm automatic grenade launcher on the USAV Besson
