Wheeled Armored Fighting Vehicle (AFV) [ 2001 ]

Nearly 600 of the Italian Iveco Puma wheeled armored vehicles have been built since inception in 2001.

Authored By: Staff Writer | Last Edited: 05/21/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

Iveco has been designing, developing and building military vehicles since founded in 1975 out of Turin, Italy. When the Italian Army required a new multi-role, multi-wheeled armored vehicle to keep pace on the modern battlefields with its 8x8 wheeled "Centauro" tank-killers (detailed elsewhere on this site), the company set about creating an all-new wheeled design. The first pilot vehicle was readied in 1988 and the stock grew to five before the end of 1990. From there, the Italian Army commissioned for a stock of six "special-mission" vehicles (mortar carriers, ATGM platform, etc...) for additional evaluation and ultimately awarded Iveco the long-sought contract for 540 total Pumas in 1999 - these to come in 240 4x4 wheeled forms and 300 6x6 wheeled forms.

Pumas have been in operation since 2001 and were manufactured under the Iveco-OTO-Melara brand label. Production ran from 2001 until 2004 and operators grew to include Argentina, Djibouti and Libya.

The vehicle sports an 8-ton weight and has an overall length of 5 meters with a beam of 2 meters and a height of 1.67 meters. The operating crew numbers two with room for four passengers. Armament is versatile, running the gamut of pintle-mounted 7.62mm and 12.7mm machine guns as well as a 40mm Automatic Grenade Launcher (AGL) over the hull roof. A Remote Weapon Station (RWS) can take the place of the manned position. Smoke grenade launchers are carried for a self-screening effect. Drive power is from an Iveco 4-cylinder turbocharged diesel engine unit outputting 160 horsepower. This is mated to a 5-speed automatic transmission system offering the vehicle a road speed of 110 kmh with an operational range out to 700 kilometers.

Internally, the vehicle mounts the powerpack to the front-right. This moves the driver to the front-left of the hull. The passenger area is therefore set to the rear of the hull with entry points had at both sides and the rear of said hull. Access hatches are also provided along the hull roof line. The driver has his own roof hatch and the vehicle commander (seated directly aft of the driver) manages his own hatch as well.

As mentioned, there are two distinct wheel bases for the Puma - a 4x4 and a 6x6 model form. The latter sees an increase to the hull length and the addition of another axle / wheel pair. This model looks more the part of Armored Personnel Carrier (APC) whereas the 4x4 form appears very much like an armored car. The two forms share the same automotive components which allows for streamlined logistics in supporting both products.

The Argentina Army acquired a pair of Puma vehicles for peacekeeper training and Djibouti followed with three units all their own. The Libyan National Army (Libya being a former Italian colony) received twenty Pumas (4x4 wheeled forms) directly from the Italian Army to strengthen its ranks against internal threats following the removal of Muammar Gaddafi from power in the 2011 uprising.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.


Service Year

Italy national flag graphic


National flag of Argentina National flag of Italy National flag of Libya Argentina; Djibouti; Italy; Libya
(OPERATORS list includes past, present, and future operators when applicable)
Armored Car
Design, of typically lightweight nature, providing onroad/offroad capabilities for the scouting or general security roles.
Can conduct reconnaissance / scout missions to assess threat levels, enemy strength, et al - typically through lightweight design.

16.6 ft
5.07 m
6.9 ft
2.1 m
5.5 ft
1.67 m
13,999 lb
6,350 kg
7.0 tons
(Showcased structural values pertain to the base IVECO Puma production variant. Length typically includes main gun in forward position if applicable to the design)
Powerplant: 1 x Iveco 4-cylinder turbo-charged diesel-fueled engine developing 160 horsepower.
68.4 mph
(110.0 kph)
435.0 mi
(700.0 km)
(Showcased performance specifications pertain to the base IVECO Puma production variant. Compare this entry against any other in our database)
Variable: 1 x 7.62mm machine OR 1 x 12.7mm machine gun OR Remote Weapon Station (RWS); Smoke Grenade Launchers.

Supported Types

Graphical image of a tank medium machine gun
Graphical image of a tank heavy machine gun
Graphical image of tank /armored vehicle smoke grenade dischargers

(Not all weapon types may be represented in the showcase above)
Dependent upon armament fit.

Puma - Base Series Name
Puma 4 - 4x4 Wheeled Variant
Puma 6 - 6x6 Wheeled Variant

Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles

Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery

1 / 1

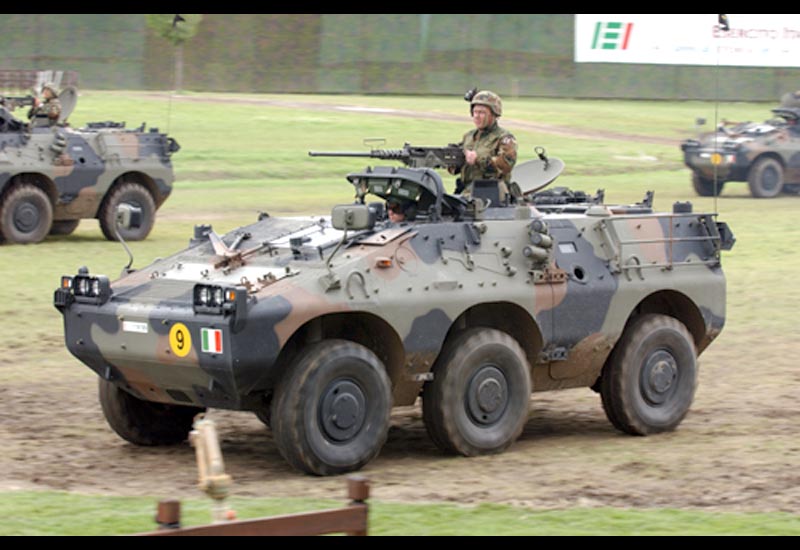

Image of the IVECO Puma
