Type 120 O-I


Super-Heavy Tank Project [ 1945 ]



The Type 120 O-I Super Heavy Tank may have only existed on paper, though one example is believed to have made its way to Manchuria.



Authored By: Staff Writer | Last Edited: 09/25/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The Germans, Soviets, British and Americans were not the only ones seriously considering the development of "super heavy tanks" during the course of World War 2 - the Imperial Japanese Army proposed the "O-I" initiative to, itself, create an indigenous super heavy tank all their own. An initial plan called for a 120-ton tank to be armed with a 105mm main gun in a main turret with smaller turrets mounting smaller-caliber weaponry. All told, the vehicle would require 11 personnel to manage its various functions. Another O-I plan - the 100-ton "Type 100 Ultra Heavy Tank O-I" - foresaw the construction of a mammoth vehicle showcasing as many as four turrets with large and small caliber armaments added to the mix. While this design fell to naught, the 120-ton endeavor did see life to a certain extent before the end of the war.

The design direction involving the use of multiple turrets here is an interesting one. The multi-turret tank concept gained steam in the decades following the close of World War 1 and it was the British and Soviets that primarily took to indigenous attempts at such a combat vehicle. However, actions in World War 2 quickly shown the limitations of the multi-turret concept and the single turret was then largely accepted as the norm, a norm continuing today with the Main Battle Tank. Nevertheless, the Japanese must have still seen some value in the multi-turret tank concept for their O-I tanks and continued in their design.

Outwardly, the 120-ton design attempt - otherwise known under the designation of "Type 120 O-I Super Heavy Tank" - exhibited a most conventional appearance and followed the much accepted straight-line-and-boxy-form design of previous Japanese armor attempts. The vehicle was suspended atop eight road wheels to a track side, the tracks running the entire length of the hull and protected along its upper regions by armor skirting that was bolted onto the side of the upper hull. The glacis plate was near-horizontal in its setting with the driver's compartment at front center. There was a short hull superstructure for the crew within and a main gun turret was fitted atop the hull roof. A pair of smaller turrets would have been added ahead of the main turret in order to house additional armament. The main turret featured at least two access hatches along the roof with another at the rear facing. Additional fuel stores could be carried in drums along the rear of the hull as a vehicle this large was sure to drink through the available internal stores rather quickly. The powerplant would have been set to the rear of the hull with access panels allowing for ease of maintenance of the large twin gasoline installations.©MilitaryFactory.com
Advertisements
Primary armament was intended to be 1 x 105mm main gun which would have made for an excellent mobile artillery system against Allied armor in 1945. This gun was more than likely to be based on an existing field artillery system - thought to be the five-ton Type 92 - for it would have been a proven commodity and require some modification to fit into a turret - thus curtailing development times concerning an all-new 105mm gun development. The gun was fitted into a fully-traversing turret with an overlapping rear section. The main armament would have been backed by secondary weapons in the form of 1 x 37mm anti-tank cannon fitted to a smaller traversing turret at the front hull, just ahead and under the main gun turret. Anti-infantry defense would have stemmed from the use of up to 3 x 7.7mm Type 97 series machine guns, one fitted to another front-mounted turret and the others elsewhere. Ammunition counts included 60 projectiles for the 105mm gun, 100 projectiles for the 37 cannon and as much as 7,470 rounds of 7.7mm ammunition.

Dimensionally, the Type 120 was to have exhibited a running length equal to 10 meters with a width of 4.2 meters and a height of 4 meters. Indeed she would have made for a large and slow target on the battlefields of World War 2 - particularly to low flying attack aircraft overhead. Base armor values indicated a thickness of up to 200mm. Overall weight was in the vicinity of 120 tons - hence the designation. Her plodding nature would have assumed that the tank be fielded with infantry protection and medium and light tank support to avoid being overrun by enemy personnel.

Power was to be supplied by a pair of V12 series gasoline-fueled engines rated at 500 horsepower each. The engines would be conventionally installed in a rear compartment of the armored hull. As the Type 100 was nothing more than a proposed conceptual tank, performance specifications were never truly made available leaving to an estimated top speed of 25 kilometers per hour.

While the Type 120 was thought to have been built, its "completeness" has always been suspect - perhaps maybe an unfinished hull existed at some point. It is believed that the single existing example was shipped under the direction of a project engineer to Manchuria after 1944 though its whereabouts today remain lost to history. Additionally, no known photographs of the vehicle exist. The Type 100 is believed to never have been constructed at all before the collapse of the Japanese Empire in 1945.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1945

Origin
Imperial Japan national flag graphic
Imperial Japan

Crew
11
CREWMEN
Production
1
UNITS


State Factories - Imperial Japan
(View other Vehicle-Related Manufacturers)
National flag of modern Japan Imperial Japan
(OPERATORS list includes past, present, and future operators when applicable)
Fire Support / Assault / Breaching
Support allied forces through direct / in-direct fire, assault forward positions, and / or breach fortified areas of the battlefield.
Tank-vs-Tank
Engage armored vehicles of similar form and function.


Length
32.8 ft
10 m
Width
13.8 ft
4.2 m
Height
13.1 ft
4 m
Weight
240,000 lb
108,862 kg
Tonnage
120.0 tons
HEAVY
(Showcased structural values pertain to the base Type 120 O-I production variant. Length typically includes main gun in forward position if applicable to the design)
Powerplant: 2 x V12 gasoline engines developing 550 horsepower at 1,500rpm.
Speed
15.5 mph
(25.0 kph)
(Showcased performance specifications pertain to the base Type 120 O-I production variant. Compare this entry against any other in our database)
Type 120:
1 x 105mm main gun in main turret
1 x 37mm Type 1 cannon in forward turret
1 x 7.7mm Type 97 machine gun in forward turret
2 x 7.7mm Type 97 machine guns

Type 100:
1 x 105mm main gun in main turret
1 x 37mm Type 1 cannon in forward turret
1 x 37mm Type 1 cannon in rear turret
1 x 7.7mm Type 97 machine in forward turret
2 x 7.7mm Type 97 machine guns


Supported Types


Graphical image of a tank cannon armament
Graphical image of a tank automatic cannon
Graphical image of a tank medium machine gun


(Not all weapon types may be represented in the showcase above)
60 x 105mm projectiles
100 x 37mm projectiles
7,470 x 7.7mm ammunition


Type 120 O-I Super Heavy Tank - Base Series Designation; 2 x gasoline engines; 120-ton operating weight; three turrets; single example may have been completed.
Type 100 O-I Ultra-Heavy Tank - Proposed 100-ton development of the Type 100 with four turrets.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 1
Image of the Type 120 O-I

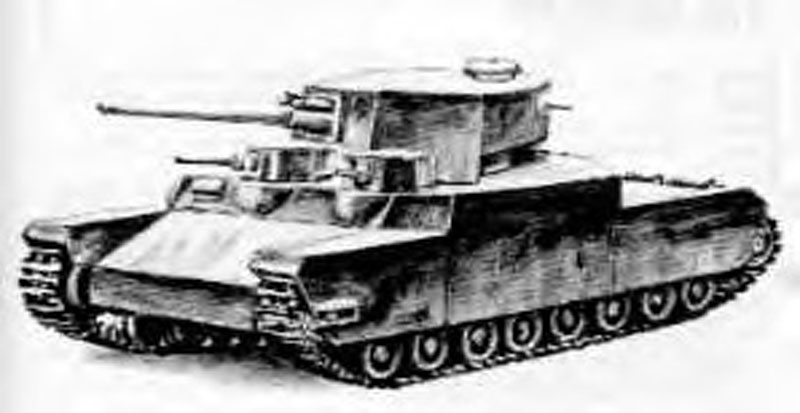

Artist impression of the Type 120 O-I Super Heavy Tank
