Single-Seat, Twin-Engine Heavy Fighter / Fighter-Bomber Aircraft [ 1939 ]
The Lockheed P-38 Lightning garnered the nicknamed of Forked-Tailed Devil from the Germans due to its effectiveness and rather unique configuration for a fighter.
The Lockheed P-38 Lightning, nicknamed the "Fork-Tailed Devil" - Der Gabelschwanz Teufel - by the Germans, was the brainchild of Lockheed engineer Kelly Johnson. The name "Lightning" was believed bestowed on the aircraft by the British who, for a short time, considered the fighter for their own inventory. The famous and highly identifiable P-38 would go on to serve the United States armed forces quite well throughout World War 2, particularly in the air battles over the Pacific, and become one of America's classic and highly recognizable warbirds.Some 10,038 P-38 Lightnings were ultimately produced with nearly 4,000 of these being the P-38L model.
The Lightning's twin-boom design was a major departure from most any military-minded aircraft in the skies at the time with most aircraft engineers electing to go the more conventional single-fuselage, monoplane design route. A new United States Army Air Corps (USAAC) specification in 1937 called for an high-level, high-speed interceptor with excellent range. As such, the unique twin-boom design was utilized to provide the power of, not one, but two fully-operating engines. Each engine (spinning three-bladed propellers) would be housed in their own slender "boom" installations complete with turbocharger support for added muscle at high operating altitudes with the single-seat cockpit held in a centralized nacelle between the two booms. Engines were also arranged in a "counter-rotating" fashion meaning that each engine counter-affected the another's inherent torque - negating the "pull" action apparent with single engine designs since the dawn of the piston engine. A short wing surface area - essentially the wing root - connected the booms to the pod-shaped cockpit at the forward end of the aircraft while a broad horizontal elevator plane joined the booms at rear of the aircraft. Part of the specification also called for the fighter to be substantially armed and the P-38 was thusly fitted with a base armament of 1 x 37mm cannon (later downgraded to a 20mm caliber) and a battery of 4 x 12.7mm Browning machine guns, all mounted in the nose. The twin-boom arrangement of the aircraft meant that the nose offered an unfettered vantage point for the pilot so placement of all armament in a single fitting was a logical choice. All said, the revolutionary Lightning was a heavy machine, categorized as a fighter but achieving the same weight class as lighter bombing platforms of her time. The undercarriage was fully retractable and, in another departure from the norm, was of a tricycle arrangement featuring a pair of single-wheeled main legs and a single-wheeled nose landing gear leg.
Overall vision out of the cockpit was rather good although the necessary wing area and forward-held engines blocked some of view. The cockpit sat directly between either engine nacelle and made vision to the lower right or left difficult without banking the entire aircraft. The installation of all armament in the nose, however, provided the pilot with a more accurate attack "cone" when compared to wing-mounted armament common to traditional fighters of the time. The armament was also quite formidable against anything unfortunate to come within the range of the attack cone - machine guns offered up greater rates-of-fire while the cannon could render engines useless with a single direct shot.
When British interest had peaked on the development of the American P-38, several test variants were shipped across the Atlantic for evaluation, sans the superchargers as there remained a ban on American supercharger technology at the time. Thusly the exported P-38 systems woefully under-performed when evaluated by British test pilots and interest in the Lockheed product dissipated. Nevertheless, United States military planners themselves liked what they saw in the P-38 (with the superchargers installed) and would soon be utilizing them across every theater of war around the globe during World War 2. It was soon after production began that the rather forgiving airframe was modified to carry fuel drop tanks to be issued for longer ranges, promoting long distance bombing runs or bomber escort duty and rail-launched rockets (held within structural support "trees" under the wings) could be added, allowing Lightning pilots to field up to 10 x high-explosive, air-to-surface unguided rockets (5 per wing) for use against ground structures, convoy vehicles, concentrations of enemy troops and trains.
The prototype aircraft became the XP-38 which recorded its first flight in January of 1939. On February 11th, 1939, pilot Ben Kelsey completed a coast-to-coast flight that set a new aviation record, completing the feat in just 7 hours and 48 minutes. The ensuing press coverage made the Lockheed P-38 Lightning something of a household name. The only blemish to the feat was the resultant crash landing.
Regardless, development continued in what was already a promising aircraft design amidst rising costs and its inherently complicated technological nature. Thirteen pre-production evaluation aircraft were then delivered as YP-38s with the first one flying on September 16th, 1940 under power from V-1710 series piston engines. These were armed with 1 x 37mm cannon and 4 x 12.7mm heavy machine guns. However, all was not rosey in the P-38s development for there remained a recurring issue encountered along the tail surfaces during high speed dives. It was only later in its development that the issue was ironed out for the better with the introduction of the P-38D and its revised tail section. 36 of the type were produced and these also incorporated self-sealing fuel tanks. The P-38 was therefore formally accepted into service in August of 1940 with serial production of the initial model - the P-38E - beginning in September. At least 210 of this version were delivered by Lockheed and now modified with 1 x 20mm cannon and 4 x 12.7mm heavy machine guns.
The P-38F soon arrived and introduced underwing pylon hardpoints for the carrying of external munitions to augment the cannon/machine gun armament. The F-model was specifically developed for the humid, at-sea nature of the Pacific Theater and fitted with V-1710 49/53 series engines. The P-38G and its V-1710-89/91 engines was next in line with production commencing in August of 1942. Bombload was increased and 2,970 examples were produced. Naturally, this was superseded by the improved P-38H mark fitting 2 x Allison V-1710 series inline piston engines in May of 1943 to which 601 examples were delivered. By August of that year, The P-38J was brought online with a bulletproof windscreen for when engaging enemy aircraft head on, a standard cockpit heating element useful when operating at icy-cold high altitudes, improved flight controls, increased fuel stores under the wing surface area and improved engine cooling. The engine improvements allowed for better climbing and higher overall speeds while the increase in internal fuel, as well as use of drop tanks, allowed P-38J pilots to take-off from bases on UK soil, fight German pilots over Europe, and return home under their own power. A specially-devised two-seat "lead Lightning" was developed from the P-38J to act as a lead plane in formation during a bombing run. This type was fitted with the fabled Norden bombsight and signaled the following aircraft when to drop their bombs during level bombing sorties. The P-38L began deliveries in June of 1944 and went on into August of 1945 with some 3,923 examples produced. these featuring provision for underwing rockets and V-1710-111/113 engines. The P-38M existed as a two-seat nightfighter based on the P-38L- production models with radar systems installed.
The long-range, high-speed nature naturally made the P-38 airframe suitable for aerial reconnaissance work and this produced the unarmed F-4 and F-5 designations, their armament replaced by photographic cameras.The F-4-1-LO was fitted with 4 x K-17 series cameras and V-1710-21-29 engines while the RF-4-1-LO was used to redesignate these mounts at a later date. F-5 signified the "light" reconnaissance form.
The British brought about their own designations for the evaluation models they received. This included the Lightning Mk.I (P-38E sans turbochargers) and the Lightning Mk.II (P-38G) models. The latter were subsequently overtaken on the production lines by the Americans upon declaration of war with the Empire of Japan.
The P-38's distinct design could work both for and against the pilot in a given dogfight. Many-a-Japanese-pilot in post-war accounts told of how the P-38 was difficult to spot when viewed from the front or behind thanks to its slim front and rear profiles. However, the aircraft yielded a much noticeable and larger profile when viewed from above or below, making the aircraft instantly recognizable even from great distances - dogfighting at even the most fundamental level was all about spotting the enemy first to help gain the advantage. As such, spotting the P-38 twin boom design before it came upon the enemy with guns blazing offered many advantages to Axis pilots.
P-38 Lightning's would be credited with more enemy kills in the Pacific Theater than any other aircraft type, which is impressive considering the amount of carrier-based battles occurring throughout the war. Early combat action forced the introduction of hydraulic control systems to aid pilots coming out of steep dives whereas before they were left to their own strength and knowledge of the systems to accomplish this feat. While an inherently fast aircraft in straight-line flight, the P-38 airframe could be pushed to 550 miles per hour in steep dives as a defensive maneuver against pursuing foes. The addition of assisted flight controls made the P-38 one of the first documented production instances of its use in aircraft to be found anywhere in the world and in many ways mirrored the importance of advancements such as "fly-by-fire" controls found most common in modern fighters.
The P-38s dominance in Europe and the Pacific began to take second place with the arrival of more capable air mounts arriving in ever growing numbers, particularly in Europe. The P-38 was, therefore, relegated more and more to undergo strike sorties and less and less needed for the bomber escort or air dominance roles. In the Pacific, it was a different matter when the endless surface of ocean required a long range fighter like the P-38 from established air bases. No fewer than 27 squadrons were fielded in this theater and seven of the top eight aces in the Pacific all flew P-38s.
In the end, the P-38 Lightning would become the symbolic trademark of Lockheed's first and hugely successful foray into the world of military aviation design (and production for that matter). The P-38 would also become a much beloved classic warfighter at air shows around the globe in the decades following, showcasing its war-winning design with distinct performance and acrobatic capabilities. Several other unique attempts designed at "benefitting" the existing system failed to advance beyond the prototype stage. Among those were the XP-49 "Super Lightning" and the XP-58 "Chain Lightning" - both detailed elsewhere on this site.
Perhaps the most notable single mission involving a P-38 in World War 2 came about on April 18th, 1943, which saw a P-38 take down a seemingly average Japanese G4M "Betty" transport aircraft - and with it - Japanese Commander-in-Chief Admiral Isoroku Yamamoto, surely an irreplaceable blow to the Japanese war effort. Lt Thomas Lanphier, credited with the downing of Admiral Yamamoto's aircraft, went on to become a Lockheed test pilot. The legend of the Lightning would live on in the Lockheed annals as the company later bestowed the designation of "Lightning II" to their new F-35 multirole fighter platform, ensuring the excellent legacy continues for future aviation generations.
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Australia; Dominican Republic; France (Free French); Honduras; Kingdom of Italy; Portugal; United Kingdom; United States
(OPERATORS list includes past, present, and future operators when applicable)
✓Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
✓Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
✓Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.
ARMORING
Survivability enhanced by armor allocated to protect pilot / crewspaces and / or critical operating systems.
MULTI-ENGINE
Incorporates two or more engines, enhancing survivability and / or performance.
RUGGED AIRFRAME
Inherent ability of airframe to take considerable damage.
HIGH-SPEED PERFORMANCE
Can accelerate to higher speeds than average aircraft of its time.
HIGH-ALTITUDE PERFORMANCE
Can reach and operate at higher altitudes than average aircraft of its time.
EXTENDED RANGE PERFORMANCE
Capability to travel considerable distances through onboard fuel stores.
SUPER PERFORMANCE
Design covers the three all-important performance categories of speed, altitude, and range.
BAILOUT PROCESS
Manual process of allowing its pilot and / or crew to exit in the event of an airborne emergency.
ENCLOSED CREWSPACE(S)
Features partially- or wholly-enclosed crew workspaces.
RETRACTABLE UNDERCARRIAGE
Features retracting / retractable undercarriage to preserve aerodynamic efficiency.
Length
37.8 ft (11.53 m)
Width/Span
52.0 ft (15.85 m)
Height
9.8 ft (2.99 m)
Empty Wgt
12,800 lb (5,806 kg)
MTOW
21,601 lb (9,798 kg)
Wgt Diff
+8,801 lb (+3,992 kg)
(Showcased structural values pertain to the Lockheed P-38J production variant)
monoplane / mid-mounted / straight
Monoplane
Design utilizes a single primary wing mainplane; this represent the most popular mainplane arrangement.
Mid-Mounted
Mainplanes are mounted along the midway point of the sides of the fuselage.
Straight
The planform involves use of basic, straight mainplane members.
(Structural descriptors pertain to the Lockheed P-38J production variant)
(Showcased performance specifications pertain to the Lockheed P-38J production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
1 x 20mm Automatic cannon in the nose assembly.
4 x 0.50 caliber Browning Heavy Machine Guns in nose assembly.
OPTIONAL:
10 x 5" high-explosive aerial rockets.
2 x Fuel Drop Tanks.
2 x 500lb Conventional Drop Bombs.
Up to 4,000lb (908kg) of underwing stores.
Supported Types
(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 2
Mounting Points
-
-
-
-
-
3
-
2
-
-
-
-
-
HARDPOINT(S) KEY:
X
15
13
11
9
7
5
3
1
2
4
6
8
10
12
14
COLOR KEY:
Fuselage Centerline
Fuselage Port/Wingroot
Fuselage Starboard/Wingroot
Wing/Underwing
Wingtip Mount(s)
Internal Bay(s)
Not Used
Note: Diagram above does not take into account inline hardpoints (mounting positions seated one-behind-the-other).
XP-38 - Prototype Model Designation
YP-38 - Evaluation Model Designation; 13 examples produced; V-1710 inline piston engines; 4 x 12.7mm machine guns and 1 x 37mm cannon.
P-38D - Revised tail unit; Self-sealing fuel tanks; 36 examples produced.
P-38E - Revised nose armament of 1 x 37mm cannon and 4 x .50 caliber machine guns to 1 x 20mm cannon and 4 x .50 caliber machine guns.
P-38F - Specifically designed for Pacific Theater of War service featuring V-1710 49/53 engines.
F-38G - V-1710-55/55 engines and provision for 2,000lbs of ordnance.
P-38G - V-1710-89/91 engines and greater bomb loadout; 2,970 examples produced.
P-38H - 601 examples produced.
P-38J - Increased wing fuel stores capacity; bulletproof windscreen; cockpit heating; improved engine cooling; improved speed and climbing capabilities.
P-38L - Provision for underwing rockets; Nose radar is some variants or bomb-aimer; Featuring V-1710-111/113 engines; 3,923 examples produced.
P-38M - Two-seat nightfighter based on P-38L model; fitted with radar.
F-4-1-LO - Conversion model unarmed reconnaissance model with V-1710-21-29 engines; 4 x K-17 cameras.
RF-4-1-LO - Redesignated F-4-1-LO model.
F-5 - Unarmed "light" reconnaissance model.
Lightning MK.I - Export P-38E Evaluation Model Designation for British trials sans turbochargers.
Lightning Mk.II - Export P-38G models for British use; overtaken and consequently used by the USAAF.
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
94
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 500mph
Lo: 250mph
This entry's maximum listed speed (414mph).
Graph average of 375 miles-per-hour.
City-to-City Ranges
NYC
LON
LON
PAR
PAR
BER
BER
MOS
MOS
TOK
TOK
SYD
SYD
LAX
LAX
NYC
Lockheed P-38J operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Showcasing era cross-over of this aircraft design.
Unit Production (9,923)
9923
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>
Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.
Images Gallery

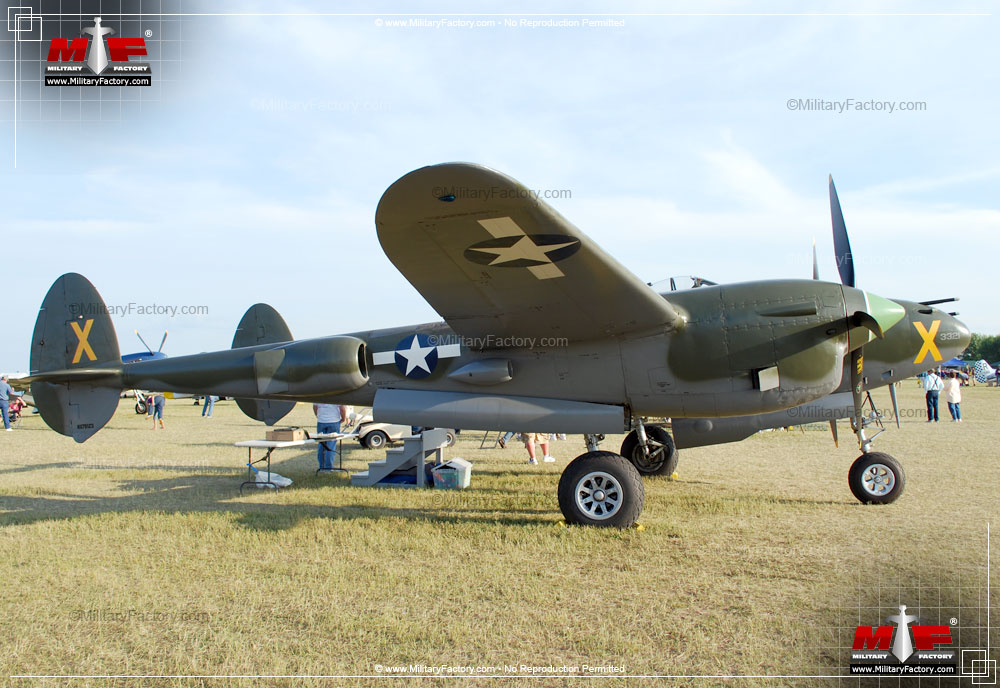

1 / 15
