Junkers Ju 287


Jet-Powered Heavy Bomber Prototype [ 1944 ]



The Junkers Ju 287 was one of the more unique green-lighted German jet-powered aircraft projects to appear during World War 2.



Authored By: Staff Writer | Last Edited: 08/24/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Junkers Ju 287 certainly proved one of the most unique of the approved late-war, jet-powered designs for the German nation - now fighting a war on multiple fronts. The aircraft was intended as a high-speed heavy bomber which strayed away from previous conventional German thinking of the time which leaned towards light-to-medium-weight bomber projects - though a focus on fast bombers still remained at this point. Indeed, the German Luftwaffe fielded a limited collection of four-engined bombers during the war and this proved a strategic and tactical limitation throughout 1944 and into 1945.

Hans Wocke worked for Junkers and, in 1943, proposed a swept-forward wing concept for a fast jet bomber capable of outrunning any known enemy air defenses - including interceptors and ground-based cannon networks. The use of a forward-swept-wing, Wocke argued, would promote improved high-speed qualities and improve on low-speed handling when compared to straight-wing, jet-powered designs being regularly put forth. Design of the Ju 287 was headed by Ernst Zindel.

The new Junkers product was conceived in one working prototype and, to expedite its development, borrowed whole components from existing aircraft. The nosewheel was from an American Consolidated B-24 "Liberator" heavy bomber while the main wheels emerged from a Junkers Ju 352 "Herkules" transport. The Junkers Ju 388 "Stortebeker" heavy fighter made up a large portion of the empennage while the fuselage was taken from the Heinkel He 177 "Grief" heavy bomber.

With Flugkapitan Siegfried Holzbauer at the controls, initial prototype V1 went airborne for the first time on August 16th, 1944. Power was provided through 4 x Junkers Jumo 004B-1 turbojet engines - one under each wing and one to either side of the forward fuselage. This had to be augmented by 4 x Walter 109-501 rocket pods added to each jet installation for the required lifting-off thrust. The rocket pods were then jettisoned after their fuel had been spent.

The V1 would enjoy some developmental success during its short time aloft, completing as many as seventeen flights. Reported values included a maximum speed of 350 miles per hour with a cruising speed of 320 miles per hour, range out to 975 miles and a service ceiling of 30,850 feet. Rate-of-climb measured 1,900 feet per minute. The aircraft exhibited an empty weight of 27,560lb and 44,100lb when fully-laden. Dimensions included a wingspan of 66 feet, a fuselage length of 60 feet and a height of 15 feet, 5 inches. Due to operating altitudes and speeds, the Ju 287 would have utilized a pressurized crew cabin (for two) and ejection seats.

Proposed armament was to be up to 8,800lb of internally-held ordnance and an unknown defensive-minded cannon arrangement in a rear-facing, remote-controlled barbette.

Despite the promising aspects of the Ju 287, the program was slowed and interest in the high-speed jet bomber fell with the German Air Ministry (RLM). It was not until the desperation of March 1945 that the RLM knew what it had and made a move to order serial production of the Ju 287. In time, a V2 and V3 prototype were added to the fold, the V2 envisioned with 6 x Junkers Jumo 004B-1 turbojet engines. However, the war was quickly over by May 1945 and these two had only entered early construction before being taken over by advancing Soviet forces.

The Ju 287 program continued, to an extent, in the Soviet Union during the immediate post-war years, furthered into 1947 as the GOZ-1 "OKB-1 EF 131", this based on the proposed V3 prototype.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1944

Origin
Nazi Germany national flag graphic
Nazi Germany

Status
CANCELLED
Development Ended.
Crew
2

Production
1
UNITS


National flag of modern Germany National flag of Nazi Germany Nazi Germany
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Length
60.0 ft
(18.30 m)
Width/Span
66.0 ft
(20.11 m)
Height
15.4 ft
(4.70 m)
Empty Wgt
27,558 lb
(12,500 kg)
MTOW
44,092 lb
(20,000 kg)
Wgt Diff
+16,535 lb
(+7,500 kg)
(Showcased structural values pertain to the Junkers Ju 287 V1 production variant)
Installed: 4 x Junkers Jumo 109-004B-1 turbojet engines developing 1,985 lb of thrust.
Max Speed
347 mph
(558 kph | 301 kts)
Ceiling
30,840 ft
(9,400 m | 6 mi)
Range
963 mi
(1,550 km | 837 nm)
Rate-of-Climb
1,900 ft/min
(579 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Junkers Ju 287 V1 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
PROPOSED STANDARD:
2 x 13mm heavy machine guns in remote-controlled tail barbette.

PROPOSED OPTIONAL:
Up to 8,800 lb of conventional drop bombs held in an internal bay.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun
Graphical image of an aircraft conventional drop bomb munition


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 0


Ju 287 V1 - Initial prototype with 4 x Junkers Jumo jet engine layout and Walter rocket-assist.
Ju 287 V2 - Proposed second prototype with 6 x Junkers Jumo jet engine layout; never completed.
Ju 287 V3 - Proposed third prototype; never completed.


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
36
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 400mph
Lo: 200mph
This entry's maximum listed speed (347mph).

Graph average of 300 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Junkers Ju 287 V1 operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (1)
1
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 2

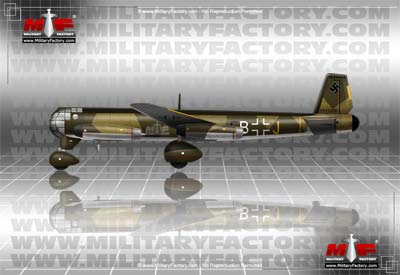

Image of the Junkers Ju 287
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
2 / 2

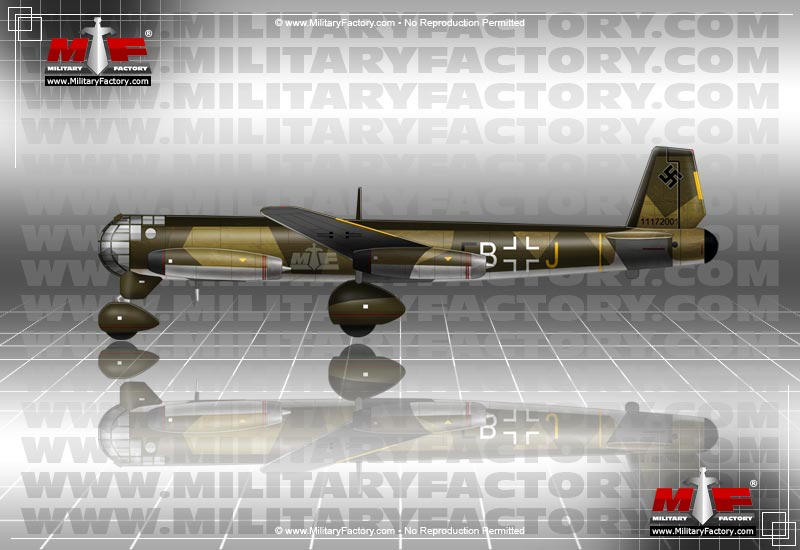

Image of the Junkers Ju 287
Image from the Public Domain.
