Republic XP-47H Thunderbolt


High-Performance Fighter Prototype Aircraft [ 1945 ]



The Republic XP-47H was developed from the D-model Thunderbolt to test the Chrysler XI-2220 series inline engine during World War 2 - it failed to make a mark.



Authored By: Staff Writer | Last Edited: 06/26/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
Like many of the American war-winning fighter aircraft of World War 2 (1939-1945), the Republic P-47 "Thunderbolt" was the subject of many experiments, modifications, and offshoots to help extract additional power and performance from the excellent airframe. The P-47D model became the definitive wartime production model and the promising, yet-developmentally troubled, P-47M was limited to just 130 examples before the company moved on the follow-up P-47N - which was given extended fuel stores to better cope with long ranges of the Pacific Theater. More radical conversions were still had between these more notable forms and the XP-47H was a late-war attempt to turn the "Jug" into an inline-engined fast fighter.

The XP-47H was born from two P-47D-15-RA production airframes ("Razorback" models) set aside specifically to test the new Chrysler XI-2220-11 16-cylinder inverted-Vee liquid-cooled inline engine promising up to 2,500 horsepower. These aircraft were pulled from Republic's production line in Evansville, Indiana, a facility set up to help offset the heavy industrial need for Thunderbolts in the American war effort. The H-model more or less retained the form and function of the P-47D but the new, and utterly complex, Chrysler engine installation meant that the rather basic fuselage of the P-47D would need to undergo considerable modification to accept the powerplant.

As a test bed, the fighter was stripped of all of its armament and "military" equipment. Unlike the "open-nosed" air-cooled radial piston engine fitted to the original D-models, the XP-47H was given an all-new forward section shaped around the liquid-cooled inline engine. The nose was very pointed thanks to the spinner which was streamlined with the general shape of the aircraft. The engine drove a four-bladed propeller unit and also caused the nose section to extend noticeably forward of the cockpit - limiting the pilot's forward vision. Under the nose was seated a cooling radiator air scoop designed to draw air as the aircraft reached speed and this gave the revised Thunderbolt a deeper side profile than normal and made a large aircraft appear even larger.

All other physical qualities of the D-model were retained including the elliptical wing mainplanes, single-finned tail unit, and tail-dragger undercarriage (retractable). The pilot sat at midships underneath a heavily-framed canopy which slid back on side rails. The raised fuselage spine of the Razorback Thunderbolts limited views to the critical rear of the aircraft - later remedied by the introduction of a bubble-style canopy design during the war.

The Chrysler inline proved more trouble than it was ultimately worth and delays incurred on that project naturally delayed the XP-47H program. As such, the H-model's prototype did not go airborne until July of 1945 and even then the intended axial flow supercharger tied to the engine was not in a ready state so a General Electric CH-5 turbosupercharger unit was substituted in its place.

With the program slowly progressing, engineers were optimistic for a maximum speed of around 490 miles per hour - making the H-model one of the fastest piston-engined fighters of the war. However, testing soon revealed that the XP-47H was a dead-end project - doomed by its troublesome engine, spotty development successes, and the end of the war in the Pacific come August 1945. During testing, the H-model recorded a maximum speed of 414 miles per hour, far short of the expected performance gains - and this without weaponry or military equipment fitted.

The project was eventually dropped by Republic despite the high investment already put into the fighter.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Republic Aviation - USA
Manufacturer(s)
United States (cancelled)
Operators National flag of the United States
1945
Service Year
United States
National Origin
Cancelled
Project Status
1
Crew
2
Units


AIR-TO-AIR COMBAT
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
INTERCEPTION
Ability to intercept inbound aerial threats by way of high-performance, typically speed and rate-of-climb.
X-PLANE
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


36.1 ft
(11.00 meters)
Length
40.8 ft
(12.45 meters)
Width/Span
14.6 ft
(4.45 meters)
Height
10,031 lb
(4,550 kilograms)
Empty Weight
17,637 lb
(8,000 kilograms)
Maximum Take-Off Weight
+7,606 lb
(+3,450 kg)
Weight Difference
monoplane / low-mounted / straight
Mainplane Arrangement
Monoplane
Design utilizes a single primary wing mainplane; this represents the most popular modern mainplane arrangement.
Low-Mounted
Mainplanes are low-mounted along the sides of the fuselage.
Straight
The planform involves use of basic, straight mainplane members.


1 x Chrysler XI-2220-11 liquid-cooled inline supercharged piston engine developing 2,500 horsepower driving a four-bladed propeller unit at the nose.
Propulsion
414 mph
(666 kph | 360 knots)
Max Speed
42,651 ft
(13,000 m | 8 miles)
Ceiling
746 miles
(1,200 km | 648 nm)
Range
3,200 ft/min
(975 m/min)
Rate-of-Climb


MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


None. Original Thunderbolt D-model armament and military equipment stripped.


XP-47H - Two prototype aircraft developed from the P-47D-15-RA production form.


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
20
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 500mph
Lo: 250mph
This entry's maximum listed speed (414mph).

Graph average of 375 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (2)
2
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for Special Forces
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft

Images



1 / 1

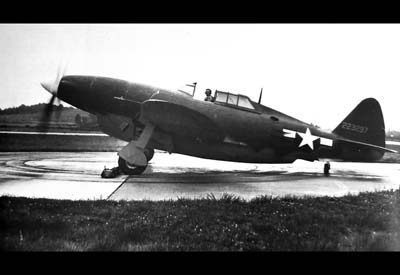

Image of the Republic XP-47H Thunderbolt
