PZL M.28 Skytruck (An-28)


Short Take-Off and Landing (STOL) Transport Aircraft (1993)


Aviation / Aerospace

1 / 12

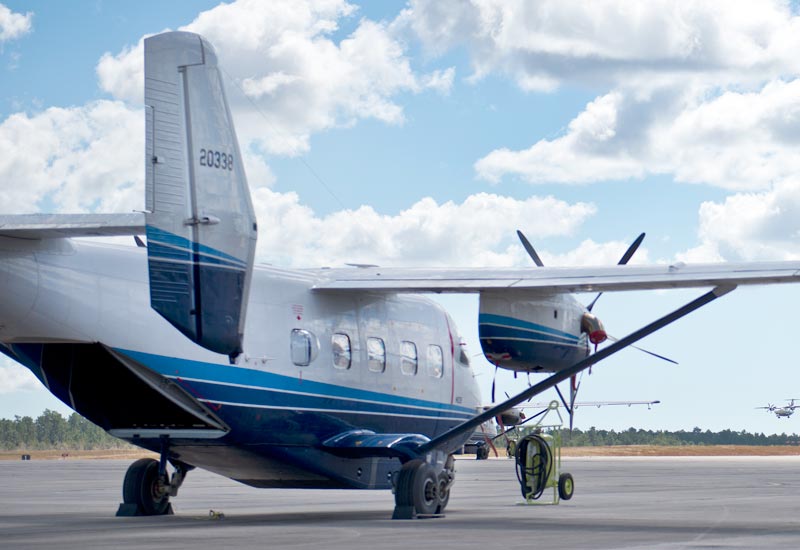

Image from the United States Department of Defense DVIDS imagery database.
2 / 12
Image from the United States Department of Defense DVIDS imagery database.
3 / 12
Image from the United States Department of Defense DVIDS imagery database.
4 / 12
Image from the United States Department of Defense DVIDS imagery database.
5 / 12
Image from the United States Department of Defense DVIDS imagery database.
6 / 12
Image from the United States Department of Defense DVIDS imagery database.
7 / 12
Image from the United States Department of Defense DVIDS imagery database.
8 / 12
Image from the United States Department of Defense DVIDS imagery database.
9 / 12
Image from the United States Department of Defense DVIDS imagery database.
10 / 12
Image from the United States Department of Defense DVIDS imagery database.
11 / 12
Image from the United States Department of Defense DVIDS imagery database.
12 / 12
Image from the United States Department of Defense DVIDS imagery database.

Jump-to: Specifications

The PZL M.28 Skytruck has proven itself a modest success on the world market.



Authored By: Staff Writer | Last Edited: 09/13/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.
In 1986, Ukrainian aircraft concern Antonov (then part of the Soviet Union) introduced to market the Antonov An-28, a light-class, twin-engined turboprop transport aircraft. One-hundred ninety-one were ultimately built in four major versions and both civilian and military operators took notice - from Armenia and Angola to the Venezuela and Vietnam. Among the list of operators became Poland and the country eventually took on local, licensed production of the series which led to a locally-refined model as the M.28 "Skytruck" by PZL Mielec.

The original Antonov An-28 was recorded a first-flight on July 22nd, 1984 and early production models still carried 2 x PZL-10S turboprop engines (the TVD-10B series under license) driving three-bladed propeller units as well as the An-28 designation.

At the core of the An.28's success was its high-wing arrangement which added natural lifting properties and improved on short-field operations. A rugged understructure and reinforced undercarriage also gave good rough-field operation. Beyond this, the An.28 was given a relatively compact footprint as transports go and held a deep fuselage with raised empennage to facilitate cargo movement into, out of, and around the aircraft. It was these qualities that have allowed the aircraft to continually find favor with civilian and military groups including special forces outfits around the world.

In addition to the stated, the aircraft also sported excellent handling and a rear cargo door allows for unfettered access to the hold within the fuselage. The interior could also be converted to suit various roles including passenger hauling. An anti-stall feature was also built-in.

After the fall of the Soviet Empire in 1991, PZL was free to maximum the An-28 for Western customers and took to installing a Western avionics fit, Western instrumentation and Pratt & Whitney Canada turboprop engines. The aircraft now flew with 2 x PT6A-65B engines of 1,100 horsepower and these drove five-bladed Hartzell propeller units. It is in this guise that the An-28 became the PZL M.28 "Skytruck" and achieved a first-flight on July 24th, 1993. Certification followed in March of 1996.

The M.28 seats a crew of two and can fit an additional nineteen passengers with a properly-equipped cabin. Its payload capability is 5,070lb. Overall length of the aircraft is 42.11 feet with a wingspan of 72.4 feet and a height of 16 feet. Empty weight is 9,310lb against an MTOW of 16,535lb. Power is from 2 x Pratt & Whitney Canada PT6A-65B turboprop engines rated at 1,100 horsepower each. Performance specs include a maximum speed of 220 miles per hour, a cruise speed of 170 mph, a range out to 930 miles and a service ceiling up to 25,000 feet. Rate-of-climb is 2,165 feet-per-minute.

The modern Polish Air Force and Navy services use a militarized form of the M.28 as the M.28B "Bryza" ("Sea Breeze"). These fly with 2 x PZL-10S series engines. Other Polish variants include the An.28TD basic transport, the M.28B improved model, the M.28B Bryza 1R maritime patroller, the M.28B Bryza 1E maritime ecological reconnaissance patroller, the M.28B Bryza 1RM bis maritime patroller (with submarine hunting functionality) and the M.28 05 Skytruck for the maritime patrol and Search and Rescue (SAR) roles.

The United States Air Force (Special Operations Warfare Center) is perhaps the most notable foreign Skytruck operator and fields their fleet (of sixteen aircraft) with 2 x Pratt & Whitney PT6A-65B turboprop engines. The type, designated locally as the "C-145A", is used in special mission roles but the line is being phased out as of this writing (some eleven are in storage as of 2017). C-145As has operated in the Afghanistan Theater of War.

The M.28+ "Skytruck Plus" is a proposed, extended fuselage model which has not been adopted.

September 2018 - PZL Mielec, owned by Sikorsky (which in turn is owned by Lockheed Martin), delivered a single M.28 aircraft to the Ecuadorian Army.

Specifications



Service Year
1993

Origin
Poland national flag graphic
Poland

Status
ACTIVE
In Active Service.
Crew
1

Production
176
UNITS


PZL Mielec - Poland / Sikorsky (Lockheed Martin) - USA / Antonov - Ukraine
National flag of Indonesia National flag of Jordan National flag of Poland National flag of the United States National flag of Vietnam National flag of Venezuela Guyana; Indonesia; Jordan; Nepal; Poland; Suriname; United States; Venezuela; Vietnam
(OPERATORS list includes past, present, and future operators when applicable)
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Special-Mission: Search & Rescue (SAR)
Ability to locate and extract personnel from areas of potential harm or peril (i.e. downed airmen in the sea).
Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.
VIP Service
Used in the Very-Important-Person (VIP) passenger transport role, typically with above-average amenities and luxuries as standard.
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.
Special Forces
Serving Special Forces / Special Operations elements and missions.


Length
43.0 ft
(13.10 m)
Width/Span
72.3 ft
(22.05 m)
Height
16.1 ft
(4.90 m)
Empty Wgt
9,039 lb
(4,100 kg)
MTOW
16,535 lb
(7,500 kg)
Wgt Diff
+7,496 lb
(+3,400 kg)
(Showcased structural values pertain to the PZL M.28 Skytruck production variant)
Installed: 2 x Pratt & Whitney Canada PT6A-65B turboprop engines developing 1,100 horsepower each and driving five-bladed propeller units.
Max Speed
221 mph
(355 kph | 192 kts)
Ceiling
25,000 ft
(7,620 m | 5 mi)
Range
932 mi
(1,500 km | 2,778 nm)
Rate-of-Climb
2,165 ft/min
(660 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the PZL M.28 Skytruck production variant. Compare this aircraft entry against any other in our database. View aircraft by powerplant type)
None.


M.28 Skytruck - Base Series Designation
An-28 - Original license-production Antonov aircraft by PZL; PZL-10S engines.
An-28TD - Base military transport variant
M.28B - Improved military transport
M.28B Bryza - Military transport
M.28B Bryza 1R - Maritime patroller and reconnaissance.
M.28B Bryza 1E - Maritime patroller and reconnaissance.
M.28B bryza 1RM bis - Maritime patroller and reconnaissance with submarine hunting equipment.
M.28.05 Skytruck - Maritime patroller with Search and Rescue capability.
M.28+ Skytruck Plus - Proposed lengthened fuselage form.
C-145A - USAF special forces variant
