Boeing P-26 Peashooter


Monoplane Fighter Aircraft [ 1932 ]



The Boeing P-26 Peashooter monoplane fighter became the first all-metal aircraft design for the United States of America.



Authored By: Staff Writer | Last Edited: 08/16/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The classic American-originated Boeing P-26 "Peashooter" arrived between the wars and was a product of its time. America's first all-metal fighter, the design still carried several more traditional elements of a bygone era of flight such as an open-air cockpit and fixed, spatted tail-dragging undercarriage. The P-26 would be the last quantitative fighter of the United States to feature these throw-back elements as the shift to more modern systems was had heading into World War 2 (1939-1945).

The P-26 began as a private venture by Boeing with the Model 248. This specimen, designed around the Pratt & Whitney R-1340 air-cooled radial piston engine, was brought to the attention of U.S. Army Air Corps (USAAC) authorities who became interested in the type back in September of 1931. In a short nine week period, a fully-flyable prototype (XP-936) was completed and first-flown on March 20th, 1932. Three prototypes eventually emerged for the program - all fitting the PW R-1340-21 "Wasp" radial.

The basic design incorporated low-mounted monoplane wings well-ahead of midships. The cockpit, too, was set ahead of midships with generally decent views over the nose and wings. A headrest was set behind the pilot and protruded from the dorsal spine line. The large radial engine sat ahead of the pilot and the tail incorporated a traditional single-finned arrangement. The large, spatted main landing gear legs were set under each wing. Performance from the engine was impressive for its time - allowing the aircraft to reach speeds of 227 miles per hour, much faster than anything available to the USAAC.

Armament centered on 2 x 0.30 caliber Browning M1919 air-cooled machine guns or a combination arrangement of 1 x 0.30 caliber and 1 x 0.50 caliber Browning M2 heavy machine gun. In addition to this, the fighter could take on light bombing sorties by carrying 2 x 100lb bombs into action. This could also be substituted with five anti-personnel bombs as needed.

The USAAC liked what it saw and ordered the type into service to succeed the line of Boeing P-12 biplane fighters (these managed a max speed of 190 miles per hour). Such was the interest in the nimble machine that the P-26 order became the largest in USAAC history when placed in January of 1933.

Initial models were the P-26A which sported a taller headrest to protect the pilot during nose-over accidents (one pilot was killed during such an accident, prompting a revision to the structure). 111 were produced to the standard and these were outfitted with the PW-1340-27 engine of 600 horsepower. Just two were completed in the P-26B guise which featured the fuel-injected R-1340-33 radial of 600 horsepower. The P-26C then followed in 23 examples and these were completed with carburated R-1340-33 radials sporting a new, revised fuel system. It was exported as the Model 281 by Boeing with eleven examples shipped to China and a single example delivered to Spain.

Beyond the United States, China, and Spain, the Peashooter was used by the Guatemalan Air Force and the Philippine Army Air Corps.

In practice, the lightweight fighter was a pilot favorite with key qualities being responsiveness and handling. Landing speeds were fast (about 73 mph), however, and took a steady experienced hand at the controls particularly when attempting a landing on a rough airstrip - split flaps were added to remedy this. Still, the P-26 remained the fastest USAAC fighter mount even into 1938

The P-26 was something of an outclassed relic by the time of the official American involvement in World War 2 as modern all-metal fighters with enclosed cockpits and retractable undercarriages were appearing in greater numbers. It was nonetheless pressed into service particularly by the Chinese in their war against the invading Japanese where the P-26 acquitted itself rather well as a bomber-interceptor. P-26s were also pressed into service during the Philippines campaign by the Americans and Filipinos and were in use as defenders over the critical Panama Canal Zone. During the war, Guatemala received their P-26 stock. In time, the value of the P-26 dwindled and it was overtaken / overshadowed by more advanced mounts. It continued to serve in second-rate air services globally and flew its last combat-minded sortie (with Guatemala) in 1954.

In all, 151 of the type were produced. The P-29 and XF7B-1 were both offshoots of the P-26 by Boeing as engineers attempted to advance the product along - though neither of these aircraft succeeded.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1932

Origin
United States national flag graphic
United States

Status
RETIRED
Not in Service.
Crew
1

Production
151
UNITS


Boeing Aircraft Corporation - USA
(View other Aviaton-Related Manufacturers)
National flag of China National flag of the Philippines National flag of Spain National flag of Taiwan National flag of the United States China (Taiwan); Guatemala; Panama; Philippines; Spain; United States
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.


Length
23.8 ft
(7.26 m)
Width/Span
28.0 ft
(8.52 m)
Height
10.4 ft
(3.17 m)
Empty Wgt
2,273 lb
(1,031 kg)
MTOW
3,012 lb
(1,366 kg)
Wgt Diff
+739 lb
(+335 kg)
(Showcased structural values pertain to the Boeing P-26A Peashooter production variant)
Installed: 1 x Pratt and Whitney nine-cylinder air-cooled radial piston engine developing 500 horsepower driving a two-bladed propeller unit at the nose.
Max Speed
227 mph
(365 kph | 197 kts)
Ceiling
27,395 ft
(8,350 m | 5 mi)
Range
360 mi
(579 km | 1,072 nm)
Rate-of-Climb
2,360 ft/min
(719 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Boeing P-26A Peashooter production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD, FIXED:
2 x 0.30 caliber Brownning M1919 machine guns OR 1 x 0.30 caliber with 1 x 0.50 caliber Browning Heavy Machine Gun (HMG).

OPTIONAL:
2 x 100 lb conventional drop bombs OR 5 x 31 lb anti-personnel drop bombs.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun
Graphical image of an aircraft conventional drop bomb munition


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 2


P-26 "Peashooter" - Base Series Designation
XP-936 - Prototype aircraft fitted with Pratt & Whitney R-1340-21 "Wasp" radial piston engine of 525 horsepower; three produced.
P-26A - Initial production model; PW R-1340-27 engine of 600 horsepower fitted; 111 examples completed.
P-26B - Fitted with PW R-1340-33 fuel-injected engine of 600 horsepower; 2 examples produced.
P-26C - Fitted with PW R-1340-33 carburated engine with revised fuel delivery system; 23 examples completed.
Model 281 - Export variant of the P-26C production model; 12 complete with eleven examples to China and one to Spain.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 10

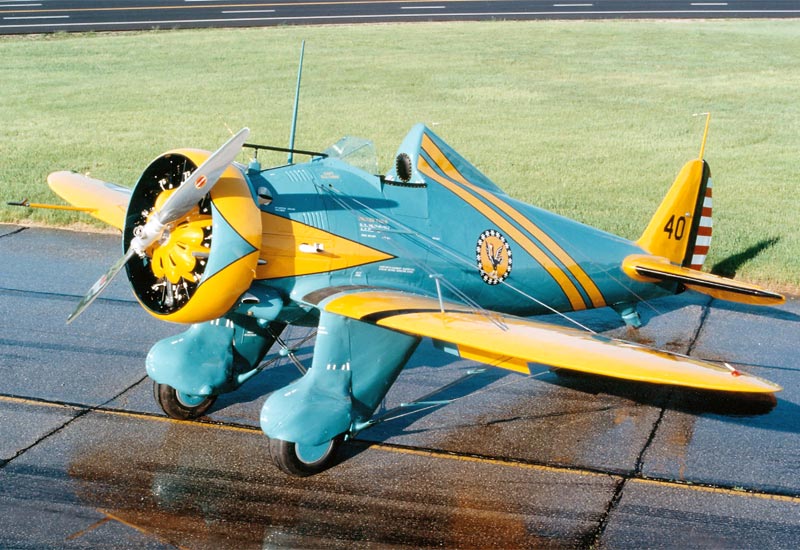

Image of the Boeing P-26 Peashooter
