AVIC AG-600 / TA-600


Flying Boat / Amphibious Aircraft [ 2022 ]



The Chinese-originated AVIC AG-600 Flying Boat is currently in development and set to become the largest amphibious aircraft in the world when it sees service introduction.



Authored By: Staff Writer | Last Edited: 04/08/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
In 1986, the Chinese Navy began operations of the Harbin SH-5, a large amphibious aircraft utilized primarily for maritime patrol and over-water Search and Rescue (SAR). The design emerged from work handled in the 1970s but only seven examples were taken on through production spanning from 1984 to 1985. The local Chinese concern of AVIC ("Aviation Industry Corporation of China") is now planning a successor based on the SH-5 as the "TA-600". This development will retain the former's amphibious capabilities and operate in largely the same roles as its Cold War-era predecessor. Beyond these military-minded roles, it is also envisioned that the TA-600 will be capable of firefighting over the vast, hard-to-reach Chinese wilderness - which will make range and water-hauling key qualities in the design. The TA-600 is expected to begin final assembly in 2015 for delivery during 2016 - this is a delay from the original 2014 delivery window.

The TA-600 has its roots in a 2009 initiative and, at this time, the aircraft retained many of the features seen in the original SH-5. Over the years, its silhouette has been slowly revised by way of modified float supports, a more blended, better-contoured cockpit roofline, and a "T-style" tail unit (as opposed to the split vertical tail fins of the SH-5). On the whole, the aircraft has continued use of flying boat basics - high, shoulder-mounted wings, two engines installed at each wing, and a boat-like hull for water landings. Its standard operating crew will be two pilots, a loadmaster, and any required mission specialists (sortie dependent). The hold will also support seating for up to 50 passengers. The resulting aircraft has proven heavier than previously planned at approximately 107,000lb, up from the original 98,000lb. The added weight has altered the expected operational range, reduced from 3,200 miles to 3,100 miles. Dimensions currently include a wingspan of 131.2 feet. Maximum Take-Off Weight (MTOW) is listed at 117,950lb.

Design plans are for all-new, Chinese-made turboprop engines to power the aircraft through constant speed propellers with an output of at least 5,000 horsepower per engine unit. The current selection remains the aged WJ-6 which is nothing more than the Chinese copy of the Soviet Ivchenko AI-20 series.

With China's ever-growing reach into the Pacific, aircraft like the TA-600 will play an ever-increasing role to asserting regional dominance over its neighbors and general instability in one of the most important commercial waterways on the planet.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

July 2016 - The AG-600 was unveiled to onlookers as a static display - this as an international tribunal sided against Chinese claims in the South China Sea.

November 2016 - The AG-600 amphibian was on public display as part of the 11th Zhuhai Air Show.

November 2016 - There are seventeen AG-600 committed to orders. A first-flight is tentatively scheduled for sometime in 2017.

December 2017 - An AG-600 aircraft recorded the series first-flight on December 24th, 2017. It remains under development heading into 2018.

October 2018 - The AG-600 has made its first-flight from water on October 20th, 2018. It flew for 14 minutes near the Jingmen Zhanghe Airport (Hubei). First-deliveries are scheduled for 2022.

April 2020 - The Chinese military has reported the AG-600 is being readied to undertake its first at-sea test flight.

Specifications



Service Year
2022

Origin
China national flag graphic
China

Status
IN-DEVELOPMENT
Program in Progress.
Crew
3

Production
1
UNITS


Aviation Industry Corporation of China (AVIC) - China
(View other Aviaton-Related Manufacturers)
National flag of China China
(OPERATORS list includes past, present, and future operators when applicable)
Special-Mission: Anti-Submarine Warfare (ASW)
Equipped to search, track, and engage enemy underwater elements by way of specialized onboard equipment and weapons.
Special-Mission: Anti-Ship
Equipped to search, track, and engage enemy surface elements through visual acquisition, radar support, and onboard weaponry.
Special-Mission: Search & Rescue (SAR)
Ability to locate and extract personnel from areas of potential harm or peril (i.e. downed airmen in the sea).
Maritime / Navy
Land-based or shipborne capability for operating over-water in various maritime-related roles while supported by allied naval surface elements.
Commercial Aviation
Used in roles serving the commercial aviation market, ferrying both passengers and goods over range.
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.


Length
121.1 ft
(36.90 m)
Width/Span
127.3 ft
(38.80 m)
Height
39.7 ft
(12.10 m)
Empty Wgt
70,548 lb
(32,000 kg)
MTOW
117,947 lb
(53,500 kg)
Wgt Diff
+47,399 lb
(+21,500 kg)
(Showcased structural values pertain to the AVIC AG-600 production variant)
Installed: 4 x WJ-6 (Ivchenko AI-20) Turboprop engines developing 5,100 horsepower each and driving 6-blded constant-speed propellers.
Max Speed
311 mph
(500 kph | 270 kts)
Ceiling
32,808 ft
(10,000 m | 6 mi)
Range
2,796 mi
(4,500 km | 8,334 nm)
Rate-of-Climb
2,100 ft/min
(640 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the AVIC AG-600 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
Currently none. Anti-Submarine Warfare (ASW) military models would include depth charges, naval mines, torpedoes, and provision for dropping conventional ordnance.


Supported Types


Graphical image of an aircraft conventional drop bomb munition
Graphical image of an aircraft aerial torpedo
Graphical image of a naval depth charge
Graphical image of a naval mine


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 4


AG-600 - Base Series Designation
TA-600 - Alternative Designation


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
44
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 400mph
Lo: 200mph
This entry's maximum listed speed (311mph).

Graph average of 300 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
AVIC AG-600 operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (1)
1
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

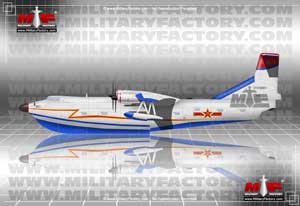

Image of the AVIC AG-600 / TA-600
