Reggiane Re.2005 Sagittario (Archer)


Fighter / Fighter-Bomber Aircraft [ 1943 ]



The Italian Reggiane Re.2005 fighter of World War 2 certainly benefited from its German Diamler-Benz DB 605 inline engine - though limited in service by the 48 total production examples.



Authored By: Staff Writer | Last Edited: 10/23/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The culmination of the Reggiane Re.2000 series of Italian-originated fighter aircraft of World War 2 became the Re.2005 Sagittario ("Archer"). This form experienced its first flight on May 9th, 1942 and was introduced during April-May of 1943, eventually fighting alongside both post-surrender Italian air services (co-belligerent forces and the Italian Social Republic) as well as the German Luftwaffe. However, only 48 of the type were ever produced which extremely limited its wartime contributions. The aircraft was highly-regarded by those who flew it and those who flew against her, considered by many to be one of the best of the Italian fighters in all of the war.

Throughout the evolution of the series, the aircraft utilized a series of inline and radial engines which changes its profile silhouette. The original radial-powered Re.2000 was rebuffed by the Italian Air Force (though taken up by Hungary and Sweden) which led to the Re.2001 design furthered by the availability of the German Diamler-Benz DB 601 inline engine. The upcoming Re.2002 went to a Piaggio radial piston engine. The Re.2003 became a "one-off", two-seat reconnaissance plane also carrying a radial engine and the sole prototype Re.2004 fighter-bomber took on an Isotta-Fraschini radial. By the time of the Re.2005, the Fiat R.A. 1050 RC58 "Tifone" ("Typhoon") was the engine of choice, this being a license-produced German Daimler-Benz DB 605A-1 inline engine of 1,475 horsepower.

The Re.2005 incorporated other refinements to her design including a revised undercarriage and a modified understructure. The key change, however, was in the use of the inline engine which again changed the Re.2000 line's profile - especially from that of the preceding radial-powered Re.2002 mark. Performance of the new aircraft included a maximum speed of 390 miles per hour, a cruising speed of 320 miles per hour, a range out to 610 miles, a service ceiling of 37,700 feet, and a rate-of-climb nearing 3,900 feet per minute.

Armament was 2 x 12.7mm Breda-SAFAT heavy machine guns in the upper frontal fuselage, synchronized to fire through the spinning propeller blades and to this was added a 20mm MG 151 cannon firing through the propeller hub. Rounding out the armament suite were 2 x 20mm MG 151 cannons fitted to the wings, one per wing. The 12.7mm machine guns were allowed 350 rounds while the hub cannon fired from a 150-round ammunition store. The wing cannons were each given 200 rounds per minute. The aircraft could also undertake strike sorties by carrying up to 2,550lbs of external stores under a fuselage centerline hardpoint and a hardpoint under each wing. The drop ordnance could be replaced by fuel drop tanks for increased range.

On the whole, the Re.2005 looked the part of all-modern fighter. It held a sleek, long-nosed design with a cockpit fitted over midships. The nose was well-streamlined thanks to its use of an inline engine. The system drove a three-bladed propeller unit which seated a large spinner at center. The wings were low-mounted on the fuselage sides just ahead of midships. The tail was highly conventional with a single vertical tail fin and low-mounted horizontal planes. The undercarriage was of a tail-dragger arrangement and retractable. Views out of the cockpit was limited due to its positioning (and raised fuselage spine) but still serviceable in the heat of battle. Pilots and adversaries both respected the design with its good performance values and hard-hitting front-facing armament. Its qualities allowed it to take on the roles of fighter, fighter-bomber, and interception with equal fervor - limited only by low production numbers and Italy's position throughout the war, first as a member of the Axis and then as a supporter of the Allies.

Following the Re.2002 into service, the Re.2005 was also adopted for serial production which began in September of 1942 and spanned into May of the following year. Deliveries followed in 1943 with total production reaching just the stated 48 examples and some available by the time of the Italian armistice of September 1943. These saw defensive-minded service over Naples, Rome, and Sicily.

Those Re.2005s that were not destroyed by their pilots or lost through combat attrition were either absorbed into the Italian co-belligerent forces, the Axis-aligned Italian Social Republic air service, or - as was the case with thirteen Re.2005 examples - taken on by the German Luftwaffe. Further attrition saw about a handful operational by the end of 1944 and the line was formally retired in 1945 following cessation of hostilities - the aircraft never truly realizing her full combat potential.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1943

Origin
Kingdom of Italy national flag graphic
Kingdom of Italy

Status
RETIRED
Not in Service.
Crew
1

Production
48
UNITS


National flag of modern Germany National flag of Nazi Germany National flag of Italy National flag of the Kingdom of Italy Kingdom of Italy; Nazi Germany
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
Interception
Ability to intercept inbound aerial threats by way of high-performance, typically speed and rate-of-climb.
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.


Length
28.6 ft
(8.73 m)
Width/Span
36.1 ft
(11.00 m)
Height
10.3 ft
(3.15 m)
Empty Wgt
5,732 lb
(2,600 kg)
MTOW
8,598 lb
(3,900 kg)
Wgt Diff
+2,866 lb
(+1,300 kg)
(Showcased structural values pertain to the base Reggiane Re.2005 Sagittario (Archer) production variant)
Installed: 1 x Fiat R.A. 1050 RC 58 Tifone ("Typhoon") liquid-cooled inline piston engine developing 1,475 horsepower.
Max Speed
391 mph
(630 kph | 340 kts)
Ceiling
37,730 ft
(11,500 m | 7 mi)
Range
609 mi
(980 km | 1,815 nm)
Rate-of-Climb
3,900 ft/min
(1,189 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Reggiane Re.2005 Sagittario (Archer) production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
1 x 20mm MG 151 cannon firing through the propeller hub.
2 x 20mm MG 151 cannons in wings (one per wing)
2 x 12.7mm Breda-SAFAT heavy machine guns in engine cowling.

OPTIONAL:
1 x 2,200lb bomb under fuselage centerline
2 x 350lb conventional drop bombs under the wings (one hardpoint per wing).


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun
Graphical image of an aircraft automatic cannon
Graphical image of an aircraft conventional drop bomb munition


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 3


Re.2005 "Sagittario" - Base Series Designation


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
60
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 400mph
Lo: 200mph
This entry's maximum listed speed (391mph).

Graph average of 300 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Reggiane Re.2005 Sagittario (Archer) operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (48)
48
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

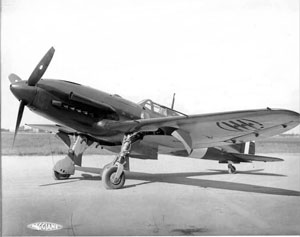

Image of the Reggiane Re.2005 Sagittario (Archer)
Image from the Public Domain.
