Harris M92


Bolt-Action Anti-Material Rifle (AMR) (1992)


Infantry Small Arms / The Warfighter

1 / 1

Jump-to: Specifications

The Harris M92 reworked the original Harris M87R heavy rifle to become a rather interesting bullpup-configured form.



Authored By: Staff Writer | Last Edited: 09/27/2016 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

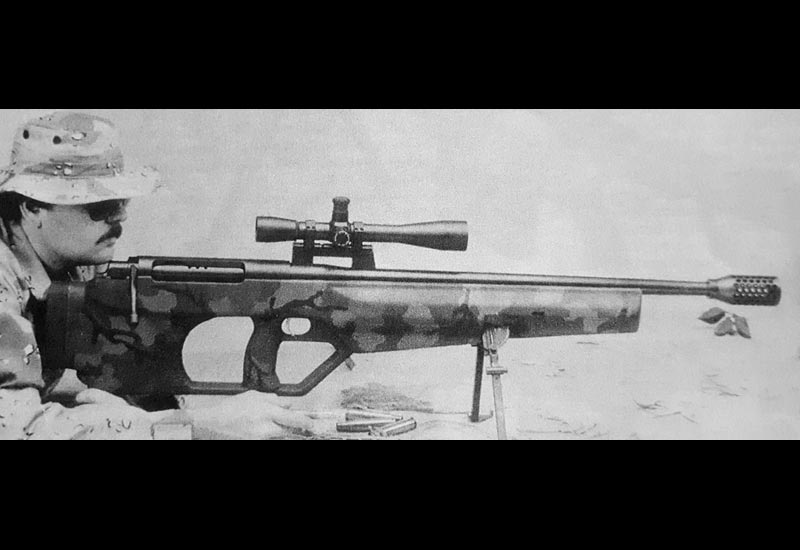

The Harris Model 92 (M92) was based on the original Harris Model 87R (M87R), though reworked into a bullpup configuration in an attempt to satisfy the growing market trend for such configured rifle systems. It retained its .50 BMG anti-material caliber and fed from a 5-round detachable box magazine. The action was a traditional manual bolt-action arrangement. Weight reached 11 kilograms and overall length was 1,015mm with a barrel measuring 737mm long. Sighting was through an optics fit.

The M92 was given a very unique, if ungainly, profile with its deep body and integrated shoulder stock / pistol grip area. The bolt handle was set at the extreme aft end of the weapon. With its action located deep to the rear of the body, the barrel could be kept at full length yet protrude only a short distance ahead of the forend. A bipod was affixed in an area around the forend for forward support. The muzzle was capped by a massive perforated brake to contend with the inherently heavy recoil effect of firing such a large and powerful cartridge.

As with most weapons of this class, the M92 was intended for the anti-armor / anti-material role in military service.

Specifications



Service Year
1992

Origin
United States national flag graphic
United States

Classification


Bolt-Action Anti-Material Rifle (AMR)


Harris Gunworks, Incorporated - USA
National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
Anti-Armor / Anti-Tank / Anti-Material
Designed to engage and defeat armor / enemy tanks at range.


Overall Length
1,016 mm
40.00 in
Barrel Length
737 mm
29.02 in
Empty Wgt
24.03 lb
10.90 kg
Sights


Optics


Action


Manually-Actuated Bolt Action

(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)


Caliber(s)*


.50 BMG

Sample Visuals**


Graphical image of a 12.7mm / .50BMG machine gun / rifle round
Rounds / Feed


5-round detachable box magazine
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.


Model 92 - Base Model Name
