Infantry Small Arms / The Warfighter

Vektor SP (Series)


Semi-Automatic Pistol [ 1992 ]



The Vektor SP series of pistols was first introduced during 1992 and has been adopted by the forces of South Africa, Malaysia, and Singapore.



Authored By: Staff Writer | Last Edited: 02/04/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
Like other world powers in the 1980s, South Africa adopted the Italian Beretta Model 92 semi-automatic pistol as its standard sidearm. It was engineered locally to the same dimensions as the Model 92, due to the U.N. arms embargo placed upon South Africa, but the guns were of same form and function as their Italian counterpart. These guns began production in 1989 under the designation of "Z-88". By the early 1990s, an improved form was sought and it was decided to evolve the Z-88 some, primarily for introducing broaden cartridge support and magazine counts. The resulting design became the Vektor SP ("Service Pistol") series introduced in 1992.

The SP appeared in two distinct primary model forms known simply as "SP1" and "SP2". The SP model was chambered for the ubiquitous 9x19mm Parabellum pistol cartridge while the latter chambered the .40 S&W - the difference also varied ammunition counts in the respective magazines, 15 rounds in the 9mm form and 11 rounds in the .40 S&W form. Both models maintained their short-recoil operation with Double-Action (DA) triggers. The frames were stout and filled the hand quite nicely in the full-size models and more compact forms arrived later to improve carrying. Iron sights were standard and included a Tritium light arrangement allowing effective ranges out to 160 feet. The hammer was exposed at the rear of the frame and the safety made ambidextrous. Of particular note was the shift away from the cut-out slide of the Beretta Model 92 as seen in the Z-88 - instead the slide of the SP now completely shrouded the barrel assembly.

Beyond acceptance with the South African military, the SP series pistol was adopted by Malaysia and Singapore. Production is said to have also taken place in the Philippines by Arms Corporation.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1992

Origin
South Africa national flag graphic
South Africa

Classification


Semi-Automatic Pistol


Denel Land Systems - South Africa
(View other Arms-Related Manufacturers)
National flag of Malaysia National flag of the Philippines National flag of Singapore National flag of South Africa Malaysia; Philippines; South Africa; Singapore
(OPERATORS list includes past, present, and future operators when applicable)
Pistol / Sidearm
Compact design for close-quarters work or general self-defense.


Overall Length
210 mm
8.27 in
Barrel Length
118 mm
4.65 in
Empty Wgt
2.12 lb
0.96 kg
Sights


Iron Front and Rear.


Action


Semi-Automatic; Double-Action; Short-Recoil

Semi-Automatic
One shot per trigger pull; self-loading or auto-loading action aided by internal mechanism; trigger management (and initial cocking) typically required by the operator; subsequent shots are aided by the unlocked / moving bolt.
(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)


Caliber(s)*


9x19mm Parabellum; .40 S&W

Sample Visuals**


Graphical image of a 9mm pistol cartridge
Graphical image of a .40 S&W (Smith & Wesson) pistol cartridge
Rounds / Feed


11- or 15-round detachable box magazine depending on model.
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.
Max Eff.Range
164 ft
(50 m | 55 yd)
Muzzle Velocity
1,150 ft/sec
(351 m/sec)


SP - Base Series Designation
SP1 - Chambered for 9x19mm Parabellum; 15-round magazine count.
SP1 "General Officer's Pistol" - Compact version of the SP1
SP2 - Chambered for .40 S&W; 11-round magazine count.
SP2 "General Officer's Pistol" - Compact version of the SP2


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 1

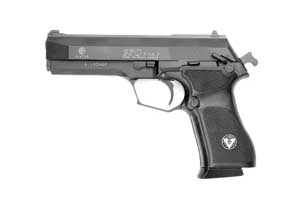

Image of the Vektor SP (Series)
