Beretta GLX-160 UBL

Single-Shot 40mm Grenade Launcher [ 2008 ]

Beretta developed the GLX-160 series single-shot grenade launcher as a standalone unit or underslung service rifle weapon.

Authored By: Staff Writer | Last Edited: 08/13/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

Introduced in 2008, the Beretta GLX-160 was developed in concert with the ARX-160 assault rifle for the Italian Army. It is a 40mm, single-shot system projecting various types of 40x46mm grenade munitions and adds roughly 2.2lbs as an Under Barrel Launcher (UBL) unit to the base ARX-160 assault rifle. Overall length is 14.3 inches with its barrel measuring 11 inches long. The GLX-160 is one of the growing number of UBLs that can serve as a conventional UBL system or as a stand-alone launcher. As a stand-alone launcher, a five-position telescoping stock is affixed for shoulder support with integrated pistol grip for the primary hand. The trigger is of a Double-Action (DA) design and the locking system of a rotating bolt function. Mechanical iron sights are included as a front adjustable (for windage and elevation) and a multi-position rear arrangement with optics also being supported. The system also includes an ambidextrous safety mechanism with a "loaded chamber" indicator. Construction is largely of weight-saving polymer.

In action, the chamber of the GLX-160 is exposed by the operator grasping the two sides of the lower receiver section, making up the barrel, and pushing the assembly forward to expose the empty breech (or access a spent shell casing if the case may be). A fresh projectile is then inserted into the chamber, the section brought back to the receiver until locked closed and the weapon made ready to fire.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.


Service Year

Italy national flag graphic


Single-Shot 40mm Grenade Launcher

National flag of Italy National flag of Turkmenistan Italy; Turkmenistan
(OPERATORS list includes past, present, and future operators when applicable)
Fire Support
Capable of suppressing enemy elements at range through direct or in-direct fire.

Overall Length
363 mm
14.29 in
Barrel Length
280 mm
11.02 in
Empty Wgt
2.20 lb
1.00 kg

Included optics or rifle optics.


Double-Action; Single-Shot

(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)



Sample Visuals**

Graphical image of a 40mm grenade cartridge
Rounds / Feed

Single-Shot; Reusable
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.

GLX-160 - Base Series Designation

Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2

Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery

1 / 1

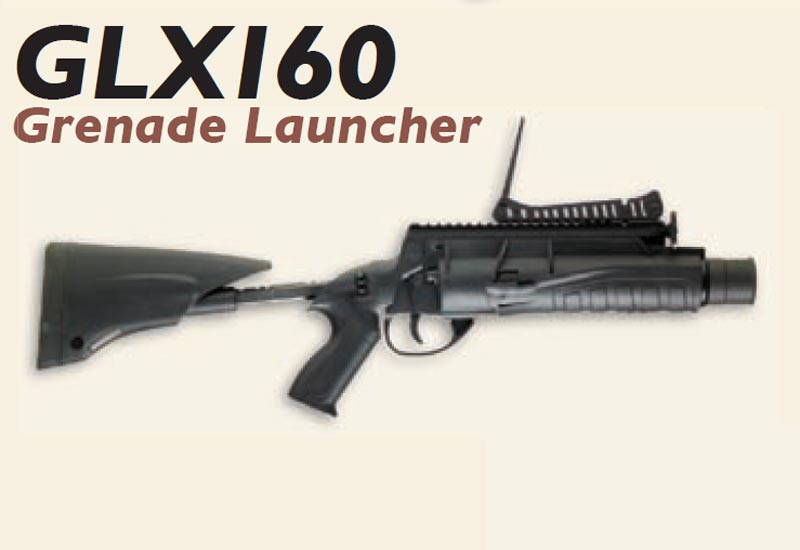

Image of the Beretta GLX-160 UBL
Image courtesy of Beretta marketing material; All Rights Reserved.
