Fabrique Nationale FN CAL


Assault Rifle / Assault Carbine [ 1966 ]



The FN CAL of Belgium failed to find many takers in its attempt to become a popular 5.56mm assault rifle.



Authored By: Staff Writer | Last Edited: 08/19/2016 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
In 1962, the United States adopted the famous M16 assault rifle and, along with its selection, came widespread use of the accompanying 5.56x45mm NATO cartridge. The 5.56mm intermediate line joined the full-power 7.62x51mm as NATO's standard ammunition set for automatic weapons. When American went to war in Vietnam, it showcased the M16 heavily and this proved the intermediate cartridge a sound investment. Gunmakers around the globe observed the battlefield events and several came to the conclusion that there was a market need for similar 5.56mm rifle systems.

Fabrique Nationale of Belgium set about designing such a firearm. By this time, it had already seen considerable success with its famous FN FAL series (chambered in 7.62x51mm NATO) which was accepted by many participating NATO and non-NATO armies of the world. The same basic form and function was utilized in a dimensionally smaller automatic weapon system and this came to be the FN CAL ("Carabine Automatique Legere") of 1966.

Design work on the rifle began in 1963 and spanned into 1966. Production then started soon after under the FN Herstal banner to which some 30,000 of the type were eventually delivered from 1966 to 1975. Chambered for the 5.56x45mm NATO cartridge, the CAL was a gas-operated weapon utilizing a rotating bolt action (unlike the FAL and its tilting breechblock). As in the FAL, the CAL's gas cylinder was fitted over the barrel and primary feeding was by way of a 20-round, straight detachable box magazine. Iron sights were accordingly standard. The receiver was very clean with a right-side mounted charging handle (unlike the FAL's left side approach). The forend was given a tubular handguard which most of the gas cylinder and nearly all of the barrel. A perforated muzzle brake capped the barrel. Sling loops were affixed under the barrel and at the buttstock. The buttstock was of solid plastic or twin-strut skeletal - in the latter this was hinged to fold over the receiver for a more compact profile. The pistol grip was ergonomically angled in the usual way with the trigger group just ahead. The magazine well was then seated just ahead of the trigger group. Early CALs were completed with fire selector allowing for semi-automatic single-shot, a three-round burst function and full-automatic fire.

Once in practice, the CAL suffered from high procurement costs, owing much to the high quality construction and finish afforded to most Fabrique Nationale products. Additionally, the rifle was found to be difficult to field strip and maintain on a regular basis with some issues also centered on long-term reliability. The CAL eventually found few buyers in a now-crowded market - these becoming Gabon, Lebanon, Mexico and Morocco - and all this led to its dropping from the Fabrique Nationale line offering after 1975. Its relative commercial failure led to a simpler, more refined and less expensive cousin in the FN FNC of 1978 detailed elsewhere on this site. The FNC did much better from a sales standpoint, becoming a standard-issue assault rifle of the Belgian Army, while being adopted by no fewer than eight other world powers including Sweden.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1966

Origin
Belgium national flag graphic
Belgium

Classification


Assault Rifle / Assault Carbine


Fabrique Nationale; FN Herstal - Belgium
(View other Arms-Related Manufacturers)
National flag of Gabon National flag of Lebanon National flag of Mexico National flag of Morocco Gabon; Lebanon; Mexico; Morocco
(OPERATORS list includes past, present, and future operators when applicable)
Automatic Function
Features a mechanical function to automate the firing action.
Assault Rifle
Modern class of long gun featuring select-fire properties, automatic internal function, and magazine feeding.


Overall Length
980 mm
38.58 in
Empty Wgt
7.39 lb
3.35 kg
Sights


Iron Front and Rear


Action


Gas-Operated; Rotating Bolt

Rotating Bolt
System utilizes internal mechanism to lock the breech or rear barrel assembly prior to firing.
Gas-Operated
Gas-operated system is featured, typically involving a gas cylinder and rear-driven piston directing energy to the bolt component.
(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)


Caliber(s)*


5.56x45mm NATO

Sample Visuals**


Graphical image of a 5.56mm intermediate rifle cartridge
Rounds / Feed


20-, 25- or 30-round detachable box magazine
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.
Rate-of-Fire
850
rds/min
Muzzle Velocity
3,200 ft/sec
(975 m/sec)


FNC ("Carabine Automatique Legere") - Base Series Designation.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 1

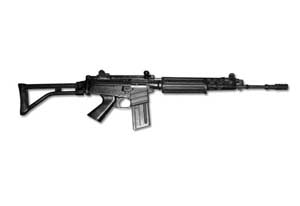

Image of the Fabrique Nationale FN CAL
