Colt CAR-15 Commando (XM177)


Assault Carbine / Submachine Gun (SMG) [ 1966 ]



The Colt AR-15 Commando assault carbine represented a handier, Close-Quarters-minded version of the original full-length Colt M16 assault rifle.



Authored By: Staff Writer | Last Edited: 02/15/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Colt CAR-15 Commando (XM177) was an assault carbine developed during the United States military involvement in the Vietnam War (1955-1975) to fulfill a need for a portable, close-in weapon system for use by special forces operating in the jungle. It appeared in 1966 and was based on the classic ArmaLite AR-15 which laid the foundation for the ubiquitous M16 assault rifle in U.S. service. The Commando retained use of the same intermediate 5.56x45mm NATO rifle cartridge as the M16 and fed from similar 20- and 30-round STANAG magazines. However, the Commando was a more compact weapon with an overall length of 32.5 inches (collapsible to 29.8 inches via a telescoping shoulder stock), a 10-inch long barrel and manageable weight of 5.35lbs. Despite its assault rifle roots and its carbine functionality in-the-field, the U.S. military classified the weapon as a Submachine Gun (SMG). The original weapon was known to Colt as "Model 610" and adopted by the U.S. Army as the developmental "XM177" (XM177E1 and XM177E2) while also being known as the CAR-15 "Commando". The United States Air Force took on stocks of the weapon as the "GAU-5/A".

The Commando retained much of the form and function of the AR-15/M16 lines though the shorter barrel assembly and telescoping shoulder stock effected accuracy somewhat. A special muzzle component was designed to retard muzzle flash as well as suppress the exiting action though the Commando was far from a "silenced" weapon. Nevertheless, its handy proportions made for a compact weapon where and when it was needed.

The United States Army contracted for over 2,800 of this special weapons system from 1966 onwards. After some time in-the-field, lessons with the new weapon were learned and Colt responded to reports with a longer barrel of 11.5 inches which aided accuracy and noise reduction some. The longer barrel also added support for the XM148 Under Barrel Grenade Launcher (UBGL) unit to broaden the warfighter's tactical value. The revised Commando was Colt's Model 629 and Model 649, these differentiated by the 649's lack of a forward-assist feature. Over 500 of the new weapons were then acquired by the Army (as XM177E2) from 1967 onwards.

The Commando was in production until 1970 and the U.S. involvement in Vietnam ended in 1975. However, the Commando soldiered on in the post-war world with some units still in use across South America in the various regional conflicts and civil wars there. Additional service saw them fielded with Israel during the Yom Kipper War.

The modern M4 Carbine went on to replace the Commando in the same assault carbine role during the 1980s and has gone on to see much more widespread service since.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Basics [+]
Manufacturer(s)
Colt Industries - USA
Operators
Israel; Malaysia; Philippines; United States National flag of Israel National flag of Malaysia National flag of the Philippines National flag of the United States
Service Year
1966
National Origin
United States


SPECIAL FORCES
Qualities of this weapon have shown its value to Special Forces elements requiring a versatile, reliable solution for the rigors of special assignments.


Overall Length
826 mm / 32.52 in
Barrel Length
292 mm / 11.50 in
Weight (Empty)
5.36 lb / 2.43 kg
Action
Semi/Full Auto; Gas Operated; Locking Bolt
GAS-OPERATED
Gas-operated system is featured, typically involving a gas cylinder and rear-driven piston directing energy to the bolt component.
Caliber(s)*
5.56x45mm M193
*May not represent an exhuastive list; Calibers may be model-specific dependent; Always consult official manufacturer sources.
Feed
20- or 30- round detachable box
Sights
Iron Front and Rear


Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information.

Rate-of-Fire
750 rpm
Muzzle Velocity
2,750 ft/sec / 838 m/sec


CAR-15 "Colt Commando" (XM177) - Base Series Designation


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon representing special forces
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2

Images



1 / 4

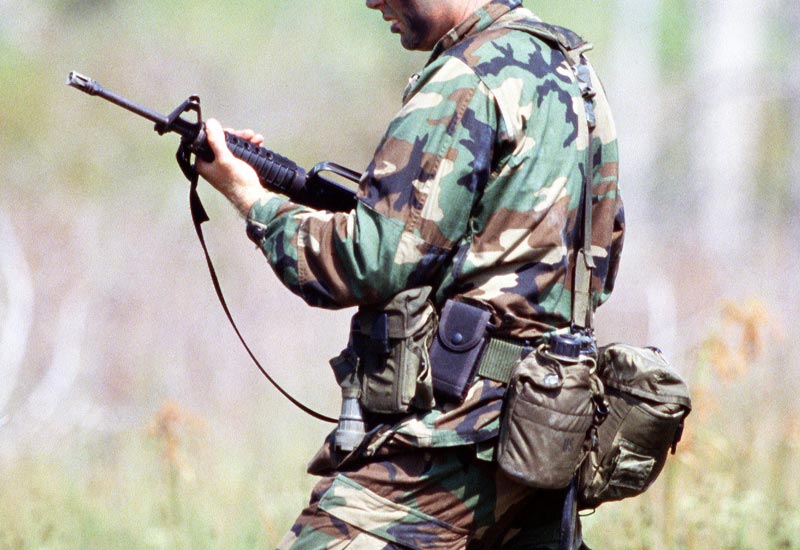

Image of the Colt CAR-15 Commando (XM177)
Image courtesy of the United States Department of Defense imagery database.
2 / 4
Image of the Colt CAR-15 Commando (XM177)
Image courtesy of the United States Department of Defense imagery database.
3 / 4
Image of the Colt CAR-15 Commando (XM177)
Image courtesy of the United States Department of Defense imagery database.
4 / 4
Image of the Colt CAR-15 Commando (XM177)
Image courtesy of the United States Department of Defense imagery database.
