M18 Claymore


Anti-Personnel Mine


United States | 1960



"The M18 Claymore anti-personnel mine has been in service with US forces since 1960."



Authored By: JR Potts, AUS 173d AB and Dan Alex | Last Edited: 04/22/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site; No A.I. was used in the generation of this content.
The M18 Claymore anti-personnel mine was specifically designed to kill or maim enemy ground troops approaching a position from a specific direction. In the Vietnam War, the mine was used by the United States Army with effect against NVA (North Vietnamese Army) and VC (Viet Cong) forces along commonly used jungle trails during ambush missions. The advantage of such a weapon was in the wide dispersal of lethal steel ball bearings up to a distance of 100 yards. In comparison, the other anti-personnel weapons of the Vietnam War available to the US Army was the M67 fragmentation hand grenade, this having a kill-zone of up to 16.5 feet (though lobbed distance was limited to the thrower's arm ability), and the M79 single-shot grenade launcher, a pinpointed weapon sending a 40mm high-explosive (HE) grenade upwards of 1,149 feet down range - though these were similarly limited with a kill range of about 20 feet.

The M18 was primarily designed by inventor Norman A. MacLeod of the Explosive Research Corporation from a period spanning 1952 to 1956. Developments already being entertained as early as World War 2 to which it was found that an explosion could be "directed". The Korean War (1950-1953) spurred further thinking into the development of a highly-lethal anti-personnel mine. During the war, UN forces came under constant infantry attacks that included massive concentrations of enemy troops ala the Japanese charges of World War 2. The United States and the Canadian arms industry both took steps to counter these vicious charges by beginning to detail the effects of a directional anti-personnel mine.

The Canadians developed the "Phoenix" which delivered steel cubes against a target area from a 5lb Composition B detonation but was limited in range to just 25 yards. Norman McLeod began developing his version in 1952 into the T-48 concept and was presented to the US Army. The Army liked what is saw and accepted the design (with some modifications) into their inventory as the "M18". The M18 was evolved into the M18A1 after 1954 to fulfill a Picatinny Arsenal requirement for an improved form. The series as a whole has since been produced by a number of factories around the world in the thousands.

The M18 Claymore anti-personnel mine was developed into two distinct versions - one with a peep-type sight and the other without. The peep sight was devised to help give a Claymore operator a "field-of-vision" for the semi-circle blast pattern presented by the M18 when detonated. A training version is noted by its bold blue color whereas operational M18s have an Olive-color appearance.

The mine component itself consists of a plastic case that is concave and rectangular in shape. Along the "active" side of the case are the embossed words "Front Toward Enemy" while the rear is embossed with "Back" to help keep the operator from making a lethal mistake during setup. The plastic component contains a composition of C3 explosive. The concave nature of the mine's design allows for a forward blast area that produces a fan-shaped pattern of steel balls across a horizontal arc of approximately 60-degrees. The steel balls packed within the mine are then projected out from just above ground level by the resulting explosion to a height of about 2 meters with a maximum kill radius of 100 meters and an effective kill range of 50 meters. Wounding has been noted as far away as 270 yards from the blast zone though a range of 55 yards is deemed optimal. As can be expected, extreme professional care should be taken during the set up of Claymores. This is not only do to the mine's inherent explosive nature but the fact that up to 20% of the internal steel ball projectiles can blow back towards a friendly line upon detonation. As such, common practice for M18 setup includes the use of natural earth mounds or hills positioned behind the Claymore to help eliminate or reduce such friendly-fire incidents.

Article Continues Below Advertisement...
ADVERTISEMENTS
Initially, detonation of early M18 Claymore systems was by way of an electrically-actuated firing device issued with each mine. The firing system was found to not be wholly reliable, sometimes causing premature detonation of the explosive, so a work around was used to replace the M18 battery holder firing device as issued with a standard M57 firing device instead. The M57 device (known as a "clacker") was held in the hand and featured a trigger that was squeezed a number of times by the Claymore operator to convert mechanical energy into electrical energy using an armature and magnets. The M18 can still be detonated in the electrical or non-electrical fashion which lends herself to be used as a dedicated mine or as an "individual weapon". In fact, so long as the operator can find a way to actuate the blasting caps, the M18 will trigger.

The M18 Claymore system is roughly 8.5 inches in length, 1.375 inches wide, 3.25 inches high and weighs just 3.5 pounds. 700 steel-based sphere ball bearings (10.5 grains) are used as the projectiles, set within an epoxy resin, and a 1.5lb layer of composition C-4 explosive is used for detonation. Detonation is initiated by a No 2 electric blasting cap. 4 x 6" spike legs are attached to the bottom of the M18 Claymore system to allow the mine to be easily secured into soft grounds. A bandolier is issued for the carrying of M18 Claymores and also contains an instruction sheet.

As may be surmised, the M18 Claymore is named after the long, large two-handed sword of Scottish descent. The M18 is used by a variety of foreign army forces and some nations have even seen fit to copy the original American design - including the Soviet Union during the Cold War. It falls under a variety of designations in world armies such as the M18 (Chile), Type 66 (China), Viuhkapanos (Finland), IHR-60 (Hungary), VS-DAFM 7 (Italy), P5 Mk 1 (Pakistan), M18A2 (Philippines), MON-50 (Soviet Union/Russia), Shrapnel Mine No 2 (South Africa), K440 and KM18A1 (South Korea), FFV-013, Forsvarsladdning 21 and LI-12 Truppmina 12 (Sweden), MDH-C40 (Vietnam) and MRUD (Yugoslavia).

Arms-Tech Ltd of Arizona makes the MM-1 "Minimore" ("MM-1 Directional Command Detonated Mine / Minimore-1 Miniature Field-Loadable Claymore Mine") for US Special Forces. It is essentially a scaled-down (1/3 size) and lighter version of the base M18A1 utilized by the US Army. While more limited in its damaging scope, the MM-1 makes up for it in its portability, weighing in at just 14.5 ounces and being 5 inches along its longest facing.

Content ©MilitaryFactory.com; No Reproduction Permitted.

April 2022 - The U.S. will be sending M18A1 Claymore AP mines to Ukraine as part of a comprehensive defense package to combat Russian aggression in the country.

Physical
The physical qualities of the M18 Claymore. Information presented is strictly for general reference and should not be misconstrued as useful for hardware restoration or operation.
216 mm
8.50 in
O/A Length
3.50 lb
1.59 kg
Weight
Directional Trigger Sensitive.
Action
Not Applicable.
Caliber(s)
Single Use.
Feed
Not Applicable.
Sights
Performance
Performance specifications presented assume optimal operating conditions for the M18 Claymore. Information presented is strictly for general reference and should not be misconstrued as useful for hardware restoration or operation.
164 ft
50.0 m | 54.7 yds
Max.Eff.Range
Variants
Notable series variants as part of the M18 Claymore Anti-Personnel Mine family line.
M18 "Claymore" - US Base Series Designation.
MM-1 "Minimore" - US Designation; improved portability version developed specifically for US special forces use.
Type 66 - Chinese Designation.
Viuhkapanos VP88 / VP84 - Finnish Designation for base series and heavy class mine.
IHR-60 - Hungarian Designation.
VS-DAFM 7 - Italian Designation.
P5 Mk1 - Pakistani Designation.
MON-50 - Russia Designation.
Shrapnel Mine No 2 - South African Designation.
K440, KM18A1 - South Korean Designations.
FFV-103, Forsvarsladdning 21, LI-12, Truppmina 12 - Swedish Designations.
MDH-C40 - Vietnamese Designation.
MRUD - Yugoslavian Designation.
Operators
Global customers who have evaluated and/or operated the M18 Claymore. Nations are displayed by flag, each linked to their respective national small arms listing.

Contractor(s): State Factories - USA
National flag of Chile National flag of China National flag of Finland National flag of Hungary National flag of Italy National flag of modern Japan National flag of Malaysia National flag of Pakistan National flag of the Philippines National flag of Poland National flag of Russia National flag of Serbia National flag of South Africa National flag of South Korea National flag of Sweden National flag of Turkey National flag of Ukraine National flag of the United Kingdom National flag of the United States National flag of Vietnam National flag of Yugoslavia

[ Chile; China; Finland; Hungary; Italy; Japan; Malaysia; Pakistan; Philippines; Poland; Russia; Serbia; South Africa; South Korea; Sweden; Turkey; United Kingdom; United States; Ukraine (announced); Vietnam; Yugoslavia ]
1 / 10
Image of the M18 Claymore

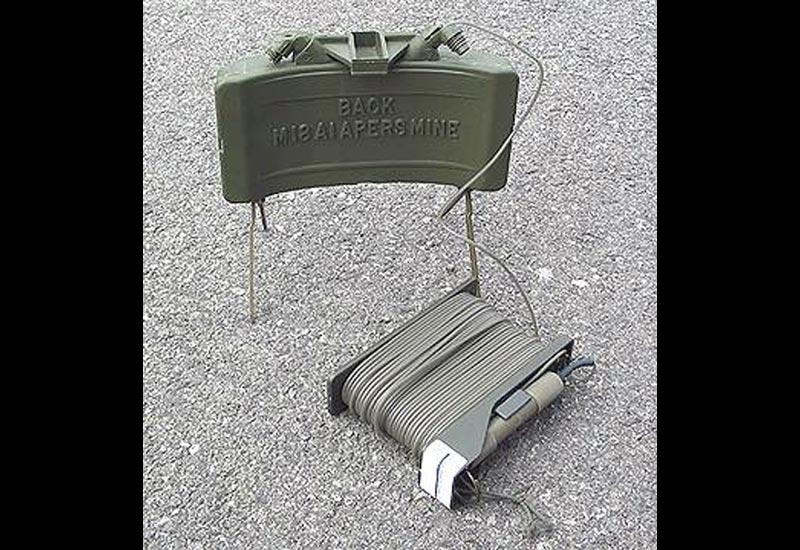

View of the complete M18 Claymore anti-personnel mine kit
2 / 10
Image of the M18 Claymore
Front left side view of an M18 Claymore mine
3 / 10
Image of the M18 Claymore
A US Army team addresses their M18 Claymore mine
4 / 10
Image of the M18 Claymore
A piece of scrap metal showcases the results of three M18 Claymore blasts
5 / 10
Image of the M18 Claymore
A US Army specialist adds the blasting cap to an M18 Claymore mine
6 / 10
Image of the M18 Claymore
An M18 Claymore mine is readied; note suspended position
7 / 10
Image of the M18 Claymore
Front right side view of an M18 Claymore mine
8 / 10
Image of the M18 Claymore
An explosion from a detonated M18 Claymore mine viewed at distance
9 / 10
Image of the M18 Claymore
US Army instructional sheet on M18 Claymore mine operation
10 / 10
Image of the M18 Claymore
US Army instructional sheet covering the basic components of the M18 Claymore mine
