IWI Galil ARM / SAR


Assault Rifle / Carbine / Submachine Gun (SMG) / Designated Marksman Rifle (DMR) [ 1973 ]



The competing Soviet AK-47 was a good start for the Israelis when developing their Galil assault rifle.



Authored By: Staff Writer | Last Edited: 08/10/2023 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
In the post-World War 2 world, the United Nations partitioned Palestine in 1947. In 1948, the nation of Israel was declared and war soon inevitably followed against neighboring Arab states beginning the 1948 Arab-Israeli War (also the Israeli "War of Independence"). The war certainly would not be the last conflict in the region but the first of many, forcing Israel to arm itself rather quickly and efficiently. Using their extensive combat experiences over the ensuing decades, the Israelis have gone on to develop specialized tactics and doctrine suitable for the available terrain and have appropriately stocked their inventories with suitable weapons - relying less and less on foreign support.

In the 1950s, the Israeli Army took on stocks of the excellent Belgian Fabrique Nationale FN FAL, a gas-operated "Battle Rifle" chambered for the 7.62x51mm NATO cartridge. Over 2 million of its kind were produced and over 90 countries eventually fielded the type in large numbers. In 1967, Israel launched surprise offensives against its Arab neighbors, sparking the "Six Day War". While the war - which lasted just five days in June - proved a decisive Israeli victory, the FN FAL began to show its limitations on the then-modern battlefield. Her foes utilized the trusted and true Kalashnikov AK-47 in great numbers to which the Israelis captured thousands during the war and were able to successful evaluate. The Soviet design proved highly reliable and robust, capable of enduring the worst a battlefield could heap upon it and it was a lighter design suitable for the long haul when compared to the Belgian design in Israeli hands. As such, Israeli authorities sought to procure - or indigenously design - a new automatic rifle around the pattern of the AK-47 for the assault rifle role.

Several foreign weapons were submitted for evaluation in an effort to become the Israeli Army's standard-issue assault rifle - a lucrative deal to say the least. The Americans showcased their improved M16A1 model and the Stoner 63 series while the Soviet AK-47 itself was also in contention, the latter having already established a ridiculous foothold across the world - particularly in the inventories of Israel's enemies. The German HK33 was an interesting submission from a firm that had produced several noteworthy products to date and this proposed model was based on the proven G3 Battle Rifle. Two indigenous designs were also submitted, one coming from Uziel Gal (whom the UZI submachine gun is named after) and the other from Yisrael Galili, a British Army veteran of World War 2.

The Galili automatic rifle submission was based largely on the Finnish M62 (RK 62) assault rifle model which was nothing more than a Finnish modernized form of the Soviet AK-47. The internal functionality of the original Kalashnikov pattern was held intact while the Finns largely reworked the external appearance of the rifle to include a tubular steel butt, revised forestock and relocated rear sight. This gave birth to the Valmet "M60" to which the Valmet "M62 (RK 62)" became a refined form. As such, the Galili approach, more or less, retained much of the reliable functionality of the Kalashnikov pattern - ensuring an automatic weapon designed for the rigors of the battlefield. Of note here is the M62's use of the Soviet 7.62x39mm cartridge for the Galili design instead relied on the smaller caliber 5.56x45mm NATO standard cartridge and, thusly, the internal working components of the Kalashnikov pattern were reworked to accept the NATO standard cartridge.©MilitaryFactory.com
Testing of the weapons lasted throughout the end of the 1960s until 1973, to which the Galili design was formally adopted as the next Israeli Army assault rifle. The rifle took on the name of "Galil" after its designer and development and production was attributed to Israeli Military Industries, otherwise abbreviated as "IMI". However, the arrival of the Yom Kippur War in October of that year inevitably delayed entry of the new rifle for some time. The Galil would serve to replace the aged Belgian FN FALs upon inception and early production forms would even utilized Finnish Valmet M62 receivers.

Overall, the Galil bears a passing external resemblance to the AK family. The receiver certainly takes on the same rectangular boxy shape sporting clean straight lines and is also home to an ambidextrous Kalashnikov-style fire selector which permits semi-automatic and full-automatic fire modes. The charging handle and ejection port are all set to the right side of the body though the charging handle is not like those featured in rival Kalashnikovs. The pistol grip, trigger unit and magazine catch are all reminiscent of the AK series as is the curved detachable box magazine fitted ahead of the trigger group. However, the magazine manages the smaller 5.56mm cartridge and can thusly hold 35 such rounds in a stacked format (as opposed to the 30-round limit of the 7.62mm magazines). The firing action itself is also more consistent with that of the American M1 Garand self-loading rifle of World War 2. The stock consists of a twin-strut tubular steel assembly that folds over the right side of the weapon, keeping all firing functions intact. The Dural-lined wooden foregrip is decidedly Israeli with its rectangular cover which houses the top-mounted gas cylinder and low-set barrel assembly. The barrel is capped by a slotted flash hider which can accept rifle grenades. A collapsible wire carrying handle is set to the left side of the body. There are basic iron sights located at the rear of the receiver and at the end of the gas cylinder and night-assist is standard through illumination and optics are optional. The Galil also makes use of a bipod which doubles as a wire cutter and a bayonet can be affixed under the barrel. The Galil is formed largely of machining with the exception of the stamped steel breech cover.

The basic Galil is the Galil ARM which represents the "Assault Rifle / Machine gun" version. The shortened carbine form is the Galil SAR which identifies the weapon as the "Short Assault Rifle". The Galil MAR is also known as the "Micro-Galil' and is the "Micro Assault Rifle" form which is highly suitable for paratroopers, vehicle crews and special forces elements as the internal function and chambering remain the same as in the basic Galil rifle. Only the barrel and foregrip are shortened to make for a dimensionally smaller, more compact form - a design more akin to a submachine gun but still firing the rifle-caliber 5.56mm cartridge (as opposed to the 9mm pistol/submachine gun round). The Marksman's Assault Rifle Mark 1 appeared in 1996 and is intended for Designated Markmen Rifle (DMR) elements at the squad level where repeating, accurate ranged firepower is required without the need for a dedicated sniper element. This weapon is, likewise, chambered for the 5.56x45mm cartridge, features a padded folding tubular steel stock and a standard-issue scope mounted along the left side of the gun body.

Perhaps the most unique of the Galil developments is the Galil Sniper Rifle ("Galatz") which, as its name implies, is intended for true dedicated sniper units. Taking the Galil automatic weapon as the starting point, the sniper version was engineered to chamber the 7.62x51mm NATO cartridge - a cartridge well-suited for long-range work. The full-automatic fire option was dropped and limited to only semi-automatic repeating fire through a two-stage trigger element. Additionally, the design incorporated a heavier barrel assembly, an adjustable bipod and a powerful telescopic sight (the Nimrod 6x40). The barrel can be capped by a muzzle compensator/brake or silencer, the latter for clandestine work. Like other Galils, the sniper variant has a folding metal butt. The Galil Sniper has since been modernized to become the "SR-99".

Other lesser-known variants include the "Magal" which is a Galil MAR model chambered for the 7.62x33mm (.30 Carbine) pistol/carbine cartridge. The "Golan" is the civilian version of the militarized Galil with semi-automatic fire only in an all-new receiver component.

Key to the success of the Galil series is the adaptability of the basic weapon which allows for several varying degrees of configuration to suit battlefield roles. Not only is this an economical measure, it makes use of existing ammunition supplies, tools and training. This has helped to evolve the Galil beyond its original assault rifle role and has now come to include a carbine and sniper form. This sort of adaptability has made it a popular in the foreign market where a special export version chambered for the 7.62x51mm cartridge has made its mark. Notable foreign operators included Brazil, Colombia, Georgia, Indonesia, Italy, Mexico, Philippines and South Africa (as the R4 under license) to name a few. Production has since gone global through localized license-manufacture to include Bernardelli of Italy, Indumil of Colombia and Lyttleton/Denel of South Africa. Columbia has extended the usefulness of their aging Galils with the introduction of the "Galil ACE" which incorporates Picatinny rail support for various sights and accessories, lower maintenance requirements and chambering for the 5.56x45mm NATO, 7.62x39mm Russian and 7.62x51mm NATO cartridges.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1973

Origin
Israel national flag graphic
Israel

Classification


Assault Rifle / Carbine / Submachine Gun (SMG) / Designated Marksman Rifle (DMR)


Israeli Weapon Industries (IWI) (fmr Israeli Military Industries (IMI)) - Israel
(View other Arms-Related Manufacturers)
National flag of Bolivia National flag of Brazil National flag of Colombia National flag of Estonia National flag of Georgia National flag of India National flag of Indonesia National flag of Israel National flag of Italy National flag of Mexico National flag of Nicaragua National flag of Peru National flag of the Philippines National flag of Portugal National flag of Rwanda National flag of South Africa Bahamas; Bolivia; Botswana; Brazil; Colombia; Costa Rica; Democratic Republic of Congo; Djibouti; El Salvador; Estonia; Georgia; Guatemala; Haiti; India; Indonesia; Israel; Italy; Lesotho; Mexico; Nicaragua; Peru; Philippines; Portugal; Rwanda; South Africa; Swaziland; Trinidad and Tobago
(OPERATORS list includes past, present, and future operators when applicable)
Automatic Function
Features a mechanical function to automate the firing action.
Assault Rifle
Modern class of long gun featuring select-fire properties, automatic internal function, and magazine feeding.
Accuracy / Precision
Long-range accuracy / precision capable; suitable for sniping, particularly when equipped with sighting aids.


Overall Length
979 mm
38.54 in
Barrel Length
460 mm
18.11 in
Empty Wgt
8.71 lb
3.95 kg
Sights


Adjustable Iron; Optional Optics


Action


Gas-Operated; Rotating Bolt

Rotating Bolt
System utilizes internal mechanism to lock the breech or rear barrel assembly prior to firing.
Gas-Operated
Gas-operated system is featured, typically involving a gas cylinder and rear-driven piston directing energy to the bolt component.
(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)


Caliber(s)*


5.56x45mm; 7.62x51mm

Sample Visuals**


Graphical image of a 5.56mm intermediate rifle cartridge
Graphical image of a 7.62x51mm / .308 Winchester rifle cartridge
Rounds / Feed


25-, 35- or 50-Round Detachable Box
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.
Max Eff.Range
1,804 ft
(550 m | 601 yd)
Rate-of-Fire
630
rds/min
Muzzle Velocity
3,117 ft/sec
(950 m/sec)


Galil ARM - Assault Rifle / Machine Gun Version; base production model.
Galil SAR - Short Assault Rifle; carbine form with shortened barrel and forend.
Galil MAR - Micro-Assault Rifle; submachine gun form with shortened barrel and forend.
Galil Sniper ("Galatz") - Specialized variant with heavier barrel, adjustable bipod and standard telescopic sight.
Magal - Police Variant chambered for .30 Carbine round.
SR-99 - Modernized Galil Sniper
Golan - Civilian Variant; revised receiver; semi-automatic fire only.
Galil ACE - Updated Colombian production models with Picatinny rail support; tool-less design.
R4 - South African locally-produced versin of the Galil.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 6

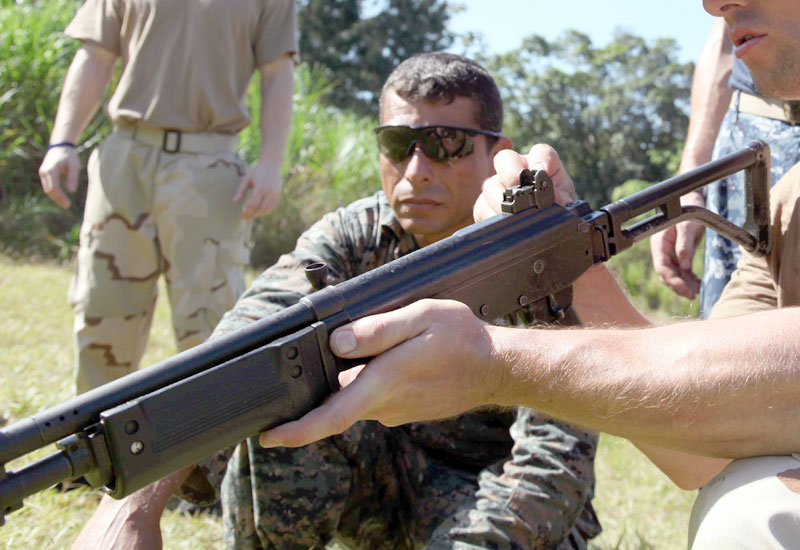

Image of the IWI Galil ARM / SAR
