Stoner 63 (Universal Combat Weapon)


Modular Assault Weapon [ 1963 ]



Eugene Stoner pioneered the Modular Weapon System through his all-in-one Stoner 63 automatic rifle series.



Authored By: Staff Writer | Last Edited: 09/06/2023 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
While modularity in firearms has become standard practice today, the idea of a common receiver modified to fulfill various battlefield roles was something of a novel concept in the 1960s where dedicated weapons were being developed to fulfill equally-dedicated roles. The Stoner 63 (or "M63") was a revolutionary entry for its time, championed by firearms legend Eugene Stoner - creator of the AR-15 assault rifle which, in turn, became the U.S. Army's famous (and infamous) M16 series. The Stoner 63 utilized a common receiver as its core component to which various feeds, barrels, and shoulder stocks could be affixed to configure the weapon. Internally, the system still relied on the proven gas-operated, rotating bolt action arrangement as in the AR-15. Outwardly, the weapon could take on various silhouettes depending on its configuration.

Design work on the gun began in 1962 and support subsequently arrived from the Cadillac Gage concern to help produce the weapon. Design attribution was also given to L. James Sullivan and Robert Fremont.

The original offering was the Standard Assault Rifle (SAR) fitting a 30-round detachable box magazine with operated akin to a basic automatic service rifle. After this arrived CARbine (CAR) variant which was of a more compact form with shortened length (as both barrel assembly and forend were shortened) with a folding shoulder stock. The Automatic Rifle (AR) followed and was fed by way of a 30-round detachable box magazine inserted at the top of the receiver with relocated sights to compensate for the distinct feeding arrangement. The Light Machine Gun (LMG) model supported linked-belt feeding with a "Quick-Change" barrel function as well as folding bipod - its battlefield role similar to the modern-day "Squad Automatic Weapon" (SAW).

The Medium Machine Gun (MMG) variant of this Stoner line allowed for the weapon's mounting onto a U.S. military tripod assembly for the suppression role. The Fixed Machine Gun (FMG) mark lost its iron sights and pistol grip so actuation was done by solenoid for firing from armored vehicles (primarily as a co-axially-mounted weapon). The "Commando" (COM) firearm was fed by a 100-round drum magazine and operated in similar fashion as the LMG. The "Survival Rifle" (SR) was intended for aircrews as a survival weapon should their aircraft be downed behind enemy lines. It was purposely compact with a very short barrel and forend while lacking a handguard. However, only a sole prototype of this model completed.

To produce one weapon form from the other required modifications to be completed by the operator. All forms were chambered in the ubiquitous 5.56x45mm NATO standard cartridge which benefitted logistics and cost. The gas system sat in a cylinder under the barrel in the usual way. Effective engagement ranges (depending on configuration) reached out to 1,000 meters with a maximum firing range listed at 2,655 meters.

First-batch production of these Stoner guns numbered 2,000 units and the weapon was formally trialed by the United States military, first through DARPA (the Defense Advanced Research Projects Agency), beginning in March of 1963 and then - later that year - by the United States Marine Corps (USMC) which returned with some modifications, this produced the "Stoner 63A" designation of 1966. An additional 2,000 or so guns were produced to this standard. The U.S. Army also showed limited interest and scheduled trials all their own but were not sufficiently impressed with the concept of an "all-in-one" universal gun and found fault with the action and overall concept. Additionally, the usually lighter rifle and carbine forms were heavier than competing types for the Stoner 63 receiver core was also the basis of the typically heavy-duty light- and medium-machine gun models. As such, there proved no real workaround for this.

Perhaps its best known use of the Stoner 63 was in the hands of the U.S. Navy SEALs during the Vietnam War from 1967 onwards. The SEALs took on several experimental and developmental weapons during this time and pressed them to the limit in their combat roles - the perfect testing stage for a new gun. Its use here, however, did not lead to widespread acceptance of the system nor the concept. U.S. Army Special Forces took on the LMG form as the "XM207" from 1970 onwards but this only last about one year and did not land an endorsement either. Due to the multitude of models and test clients, various designations were ultimately applied to the weapon throughout its career - XM22, XM22E1, XM22E2, XM23, XM23E1, XM207, XM207E1, XM207E2, and Mark 23 Mod 0.

Amazingly, the Stoner 63 series soldiered on into the 1980s but it was eventually (and officially) written off as the U.S. military continued its commitment to dedicated infantry weapons for dedicated roles. NWM of the Netherlands purchased the rights to the gun for manufacture and sales outside of the United States but the product found no takers on the world stage - its non-endorsement by the U.S. military certainly hurt its cause.

The universal receiver concept has never formally gone away - several large concerns and private companies revisited the approach and many have since come online in seeing widespread acceptance. One notable example became the Austrian Steyr AUG (detailed elsewhere on this site) where its common receiver made up the assault rifle, light machine gun, and commando weapon forms. Other companies have since followed suit.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Cadillac Gage Company / Eugene Stoner - USA
Manufacturer(s)
United States
Operators National flag of the United States
1963
Service Year
United States
National Origin


AUTOMATIC FUNCTION
Features a mechanical function to automate the firing action.
FIRE SUPPORT
Capable of suppressing enemy elements at range through direct or in-direct fire.
SPECIAL FORCES
Qualities of this weapon have shown its value to Special Forces elements requiring a versatile, reliable solution for the rigors of special assignments.
SPECIAL PURPOSE
Special purpose weapon for a specially defined battlefield role.


1,023 mm
(40.28 inches)
Overall Length
508 mm
(20.00 inches)
Barrel Length
7.72 lb
(3.50 kg)
Empty Weight
Gas-Operated; Rotating Bolt
Action
ROTATING BOLT
System utilizes internal mechanism to lock the breech or rear barrel assembly prior to firing.
GAS-OPERATED
Gas-operated system is featured, typically involving a gas cylinder and rear-driven piston directing energy to the bolt component.
5.56x45mm NATO
Caliber(s)
May not represent an exhuastive list; Calibers may be model-specific dependent; Always consult official manufacturer sources.
30-round detachable box magazine; disintegrating link belt; 75-round drum
Rounds
Iron Front and Rear.
Sights


Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information.

1,800 feet
(549 meters | 600 yards)
Max Effective Range
700
Rounds-per-Minute
Rate-of-Fire
3,250 ft/sec
(991 m/sec)
Muzzle Velocity


Stoner M69W - Prototype Designation; chambered for 7.62x51mm cartridge.
Stoner 62 - Revised Prototype; chambered for 7.62x51mm NATO cartridge.
Stoner M63 - Base Series Designation; chambered for 5.56x45mm NATO catridge; approximately 2,000 examples produced.
Stoner M63A - Upgraded M63; chambered for 5.56x45mm NATO catridge.
XM22 - US Navy SEAL designation of Stoner 63 production mark.
XM22E1 - US Navy SEAL designation of Stoner 63A production mark.
XM23 - US Navy SEAL designation of Stoner 63 Carbine form.
XM207 - US Navy SEAL designation of Stoner Light Machine Gun form.
Stoner Mark 23 Mod 0 Machine Gun - US Navy SEALs designation of Stoner Commando mark.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon representing special forces
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2

Images



1 / 1

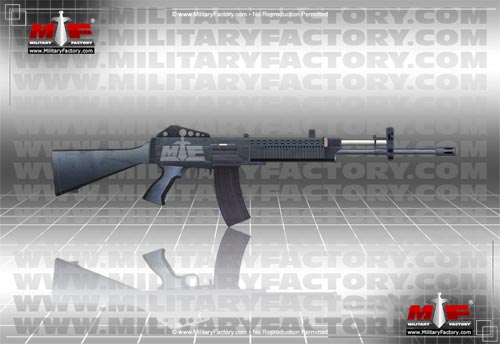

Image of the Stoner 63 (Universal Combat Weapon)
