Colt Canada C20


Designated Marksman Rifle (DMR) [ 2020 ]



The Colt Canada C20 DMR system is fielded by the fighting forces of both Canada and Denmark.



Authored By: Staff Writer | Last Edited: 06/14/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The Designated Marksman Role (DMR) at the squad-level rose to prominence at the turn of the century as American forces struggled to battle insurgents at range throughout Iraq and Afghanistan. The DMR role combined the capabilities of a high-precision rifle with an infantry member to bridge the gap between the standard rifleman and specialized sniper. The result became a potent squad-level component offering long-range firepower when needed.

While there have been a plethora of options available to fighting forces for some time now, Colt Canada has produced, since 2020, its impressive "C20" specifically for the role. The product has found its way into the inventories of both the Canadian Department of National Defence as well as the Danish Armed Forces. Design work began in 2019. For the Royal Danish Army, the C20 will be used to supersede the outgoing German Heckler & Koch HK417 series. First-deliveries were expected sometime in 2021.

The system is essentially an AR-15 style semi-automatic weapon featuring an MRR-L integrated upper receiver, MIL-STD-1913 top rail (for mounting accessories), and Geissele SSA Dual-Stage trigger unit. The shoulder stock is adjustable to suit firer comfort and a hinged, folding bipod is positioned just under the slotted handguard. A chrome-lined barrel is optional and the barrel can be capped with either a multi-slotted brake or a suppressor, the latter offering enhanced clandestine operation. Other qualities are conventional including the rear-angled pistol grip with integrated trigger section and forward-set magazine well. Optics (typically the Schmidt & bender 3-20x50 scope) are set over the receiver in the usual way.

The base model is chambered for the ubiquitous 7.62x51mm NATO standard rifle cartridge, giving better range and man-stopping capabilities than the smaller 5.56mm intermediate round. Unloaded, the complete system weighs in at 9.1lb and overall length is 38 inches with an 18-inch long barrel fitted. Muzzle velocity equals 2,400 feet-per-second when using C181 series ammunition. A semi-automatic action ensures one cartridge is chambered and fired with each trigger pull.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

September 2020 - The Danish Defence Acquisition and Logistics Organization has revealed the purchase of the Colt Canada C20 DMR. These will be used to succeed the HK417 line and will be fielded under the designation of "Finskyttegevaer, Kort" (FINSKGV K).

November 2020 - The Canadian Department of National Defence has received its first examples of the C20 DMS system.

Advertisements

Specifications



Service Year
2020

Origin
Canada national flag graphic
Canada

Classification


Designated Marksman Rifle (DMR)


National flag of Canada National flag of Denmark Canada; Denmark
(OPERATORS list includes past, present, and future operators when applicable)
Accuracy / Precision
Long-range accuracy / precision capable; suitable for sniping, particularly when equipped with sighting aids.


Overall Length
965 mm
37.99 in
Barrel Length
447 mm
17.60 in
Empty Wgt
9.04 lb
4.10 kg
Sights


Schmidt & bender 3-20x50 Scope


Action


Semi-Automatic

Semi-Automatic
One shot per trigger pull; self-loading or auto-loading action aided by internal mechanism; trigger management (and initial cocking) typically required by the operator; subsequent shots are aided by the unlocked / moved bolt.
(Material presented above is for historical and entertainment value and should not be construed as usable for hardware restoration, maintenance, or general operation - always consult official manufacturer sources for such information)


Caliber(s)*


7.62x51mm NATO

Sample Visuals**


Graphical image of a 7.62x51mm / .308 Winchester rifle cartridge
Rounds / Feed


20-round detachable box magazine.
Cartridge relative size chart
*May not represent an exhuastive list; calibers are model-specific dependent, always consult official manufacturer sources.
**Graphics not to actual size; not all cartridges may be represented visually; graphics intended for general reference only.
Max Eff.Range
405 ft
(123 m | 135 yd)
Muzzle Velocity
2,400 ft/sec
(732 m/sec)


C20 - Base Series Designation.
Finskyttegevaer, Kort (FINSKGV K) - Royal Danish Army designation for the C20.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Cold War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 1

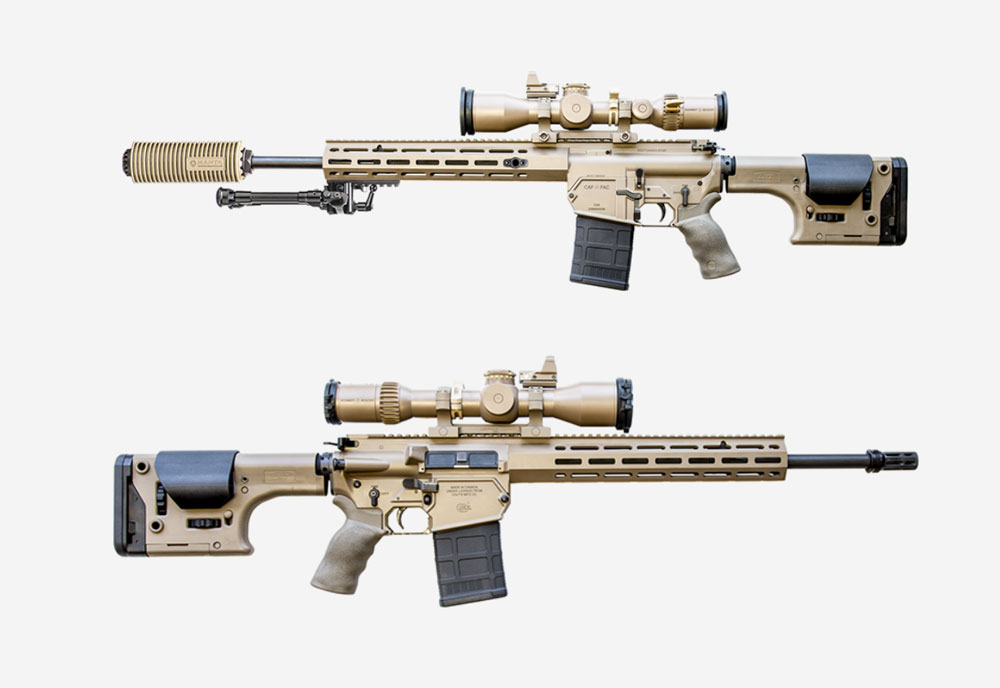

Image of the Colt Canada C20
Image from official Colt Canada marketing materials.
