ROKS Gwanggaeto the Great (DDH-971)

Guided Missile Destroyer / Frigate Warship [ 1998 ]

ROKS Gwanggaeto the Great DDH-971 was formally commissioned for service into the South Korean Navy in July 1998.

Authored By: Staff Writer | Last Edited: 04/06/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

Image from the United States Department of Defense DVIDS imagery network.

VIEW SPECIFICATIONS [+]

With unpredictable neighbor North Korea to its north and defense powerhouse China to its West, it behooves the nation of South Korea to invest heavily in a viable naval service to function alongside its land and air branches. As such, various warship and submarine classes have been inducted into service over the decades and, throughout the mid and late 1990s, the Gwanggaeto the Great-class destroyers were introduced with the group numbering three and led by ROKS Gwanggaeto (DDH-971) itself. In time, ROKS Eulji Mundeok (DDH-972) and ROKS Yang Manchun (DDH-973) came online and all of the warships were constructed by Daewoo Heavy Industries. Each maintains an active status in the Republic of Korea (ROK) Navy (2017).

Despite their official destroyer classification, the group can also be considered as frigates due to displacement, size and capabilities.

ROKS Gwanggaeto the Great was formed as part of the South Korean Navy "KDX" initiative which seeks to provide the ROK Navy with a deep water / ocean-going force - a move away from a primarily coastal-minded naval force. This meant a warship design with good sea-keeping capabilities and range as well as armament and sensor systems capable of engaging multiple targets Beyond-Visual-Range (BVR). The new destroyers have begun to fill their portion of the requirement with as many as twelve total ships planned for the group.

ROKS Gwanggaeto the Great displaces 3,825 tons under full load. She features an overall length of 444.6 feet with a beam of 46.6 feet and a draught down to 13.8 feet. Internally there is a crew of 286 and the air arm includes a pair of Westland "Super Lynx" navalized helicopters launched and retrieved from a stern helipad. A full-service hangar provides at-sea repair and maintenance facilities.

Propulsion is by way of a COmbined Diesel And Gas (CODAG) arrangement which sees 2 x Ssang Yong Motor Company 20V956 TB82 diesel units paired with 2 x General Electric LM2500-30 marine gas turbines. These engines are tied to a pair of shafts under stern that provide for speeds reaching up to 30 knots. The combination arrangement allows the operator to switch from gas to diesel and back to accomplish the actions of dash and cruising - and effective fuel-saving system for modern warships. Operational ranges are out to 4,500 nautical miles.©MilitaryFactory.com

The warship's profile sees a single deck gun at the forecastle with an imbedded bank of missiles ahead of the bridge superstructure. Atop the superstructure is the communications and sensors system with some of the installations set about a lattice-style main mast. Aft of the main superstructure is a split "Y-style" smoke funnel exhausting the propulsion scheme. Aft of this is the secondary superstructure (containing the hangar) and helipad.

Conventional armament is 1 x 5" /54 caliber 127mm OTO-Melara deck gun (turreted) and 2 x Signaal "Goalkeeper" 30mm Close-In Weapon Systems (CIWSs). The missile focus of the warship is apparent as the Mk 48 Mod 2 Vertical Launch System (VLS) ahead of the bridge houses 16 x RIM-7P "Sea Sparrow" surface-to-air missiles. Beyond this are a pair of quadruple launchers for the Harpoon anti-ship missile. The warship is also outfitted with 2 x 324mm (12.8") triple torpedo tubes to deal with surface and undersea threats (Mark 46 torpedo support).

The AN/SPS-49(V) 2D air-search radar heads the list of advanced processing systems that give the vessel vision beyond the horizon. This is in addition to the Signaal MV08 surface-search and Daewoo SPS-95K navigation radar fits. Signaal also provides its STIR 180 series Fire Control System (FCS) radars. The SLQ-25 "Nixie" system is a towed decoy for incoming torpedoes and the ATLAS DSQS-21BZ forms the hull-mounted sonar system. 4 x CSEE DAGAIE MK 2 is an installed chaff launcher. All this works in conjunction with the armament systems aboard the ship as well as the helicopters which provide even greater coverage for the warship.

ROKS Gwanggaeto the Great was launched on October 28th, 1996 and formally commissioned on July 24th, 1998. She remains in active service alongside her two sisters (2017).©MilitaryFactory.com

Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications

Service Year

1998

Origin

South Korea

Status

COMMISSIONED
In Active Service.

Complement

286
PERSONNEL

Class

Gwanggaeto the Great-class

Number-in-Class

3
VESSELS

Ships-in-Class

ROKS Gwangggaeto the Great (DDH-971); ROKS Eulji Mundeok (DDH-972); ROKS Yang Manchun (DDH-973)

South Korea

(OPERATORS list includes past, present, and future operators when applicable)

✓ Offshore Bombardment
Offshore bombardment / attack of surface targets / areas primarily through onboard ballistic weaponry.

✓ Land-Attack
Offshore strike of surface targets primarily through onboard missile / rocket weaponry.

✓ Maritime Patrol
Active patroling of vital waterways and maritime areas; can also serve as local deterrence against airborne and seaborne threats.

✓ Airspace Denial / Deterrence
Neutralization or deterrence of airborne elements through onboard ballistic of missile weaponry.

✓ Fleet Support
Serving in support (either firepower or material) of the main surface fleet in Blue Water environments.

Length

444.6 ft
135.51 m

Beam

46.6 ft
14.20 m

Draught

13.8 ft
4.21 m

Displacement

3,800
tons

Installed Power: 2 x General Electric LM2500-30 gas turbines with 2 x SsangYong Motor Company 20V 956 TB82 diesel engines driving 2 x shafts.

Surface Speed

30.0 kts
(34.5 mph)

Range

4,519 nm
(5,200 mi | 8,369 km)

1 x 127mm (5") /54 caliber OTO-Melara deck gun

1 x 16 Mk 48 Mod 2 Vertical Launching System (VLS) (RIM-7P "Sea Sparrow" Surface-to-Air Missiles (SAMs)).

2 x "Harpoon" anti-ship missile launchers (quad-launchers).

2 x 30mm Signaal "Goalkeeper" Close-In Weapon Systems (CIWSs).

2 x 324mm (12.8") triple torpedo tubes

Supported Types

Graphical image of a modern warship turreted deck gun armament

Graphical image of an aircraft Gatling-style rotating gun

Graphical image of an air-to-air missile weapon

Graphical image of a medium-range air-to-air missile

Graphical image of an aircraft aerial torpedo

Graphical image of an aircraft anti-ship missile

(Not all weapon types may be represented in the showcase above)

2 x Westland Super Lynx Anti-Submarine Warfare (ASW) navy helicopters.

Military lapel ribbon for the Cold War period

Military lapel ribbon for early warship designs

Military lapel ribbon for the Falklands War

Military lapel ribbon for the 1991 Gulf War

Military lapel ribbon for the Korean War

Military lapel ribbon representing modern aircraft

Military lapel ribbon for the Attack on Pearl Harbor

Military lapel ribbon for the Russian Invasion of Ukraine

Military lapel ribbon for the Vietnam War

Military lapel ribbon for the World War 1

Military lapel ribbon for the World War 2

Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective naval campaigns / operations / periods.

Images Gallery

1 / 1

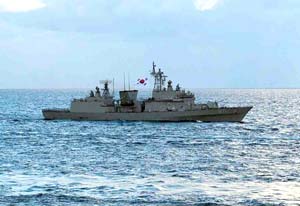

Image of the ROKS Gwanggaeto the Great (DDH-971)

Image from the United States Department of Defense DVIDS imagery network.
