Naval Warfare


Riverine Command Boat (RCB)


Shallow-Draught Fast Assault Craft [ 2007 ]



Based on the Swedish CB90 series fast assault boats, the Riverine Command Boat is a group of six serving the United States Navy.



Authored By: Staff Writer | Last Edited: 11/26/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The Riverine Combat Boat was introduced in 2007 and based a successful Swedish design. The boats are made locally for the United States Navy (USN) under license through SAFE Boats of Bremerton, Washington and form a fast-attack, fast-response arm for the service. The RCB is assigned to three Riverine Squadrons as part of Navy Expeditionary Combat Command and have seen extensive service in Persian Gulf waters to date (2016). There are six RCBs in service with the USN as part of the CB90-class.

The vessels exhibit sharp-angled lines and strong contours with draughts shallow enough to allow for operation very near the shoreline - an area where larger boats and warships cannot go. This makes the design useful in interception of enemy elements, fast assault of valued targets near the shoreline and supporting special forces missions by providing insertion/extraction services. Armor protection is rated up to 7.62mm weapons. Aboard, the crew can make use of several modern systems including thermal imaging, laser range-finding and stabilization.

The operating crew numbers five with space for an additional nineteen personnel. Dimensions include a length of 53, a beam of 12 feet and a draught of 3 feet - the latter quality utterly important for close-to-shore operations. Displacement is 22 tons. Power is from Swedish-originated Scania DSI14 V8 diesel engines developing 625 horsepower each and driving power to 2 x Kamewa FF waterjets. This arrangement propels the boat to speeds of over 40 knots and ranges out to 300 miles.

Despite their size, RCBs are well-armed across four positions located about the craft. Armament can be variable and a mix of 12.7mm Browning M2HB heavy machine guns, 7.62mm M240B medium machine guns, 40mm Mk 19 automatic grenade launchers and 7.62mm GAU-17 / 12.7mm GAU-19 miniguns. The boats are also set up to support the Israeli "Rafael" Mk 49 Remote Weapons Station (RWS) fitting a 0.50 caliber machine gun allowing operators to fire on the enemy from cover.

The RCB boats have seen regular confrontations with Iranian Navy vessels in the Persian Gulf theater.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
2007

Origin
United States national flag graphic
United States

Status
COMMISSIONED
In Active Service.
Complement
24
PERSONNEL


Class
CB90-class
Number-in-Class
6
VESSELS
Ships-in-Class


Not Applicable.


National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
Offshore Operation
Activities conducted near shorelines in support of allied activities.


Length
53.0 ft
16.15 m
Beam
12.0 ft
3.66 m
Draught
3.0 ft
0.00 m
Displacement
22
tons


Installed Power: 2 x Scania DSI14 V8 diesel engines developing 625 horsepower to 2 x shafts; 2 x Kamewa FF waterjets.
Surface Speed
40.0 kts
(46.0 mph)
Range
261 nm
(300 mi | 483 km)


kts = knots | mph = miles-per-hour | nm = nautical miles | mi = miles | km = kilometers

1 kts = 1.15 mph | 1 nm = 1.15 mi | 1 nm = 1.85 km
4 x pintle mounts for mixed armament to include:

12.7mm Browning M2 Heavy Machine Guns (HMGs)
7.62mm M240B Medium Machine Guns (MMGs)
40mm Mk 19 Automatic Grenade Launchers (AGLs)
7.62mm GAU-17 miniguns
12.7mm GAU-19 miniguns

Also supporting the Rafael Remote Weapons Station (RWS) mounting a 12.7mm heavy machine gun.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun
Graphical image of an aircraft Gatling-style rotating gun


(Not all weapon types may be represented in the showcase above)
None.


Military lapel ribbon for the Cold War period
Military lapel ribbon for early warship designs
Military lapel ribbon for the Falklands War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Korean War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Attack on Pearl Harbor
Military lapel ribbon for the Russian Invasion of Ukraine
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective naval campaigns / operations / periods.

Images Gallery



1 / 3

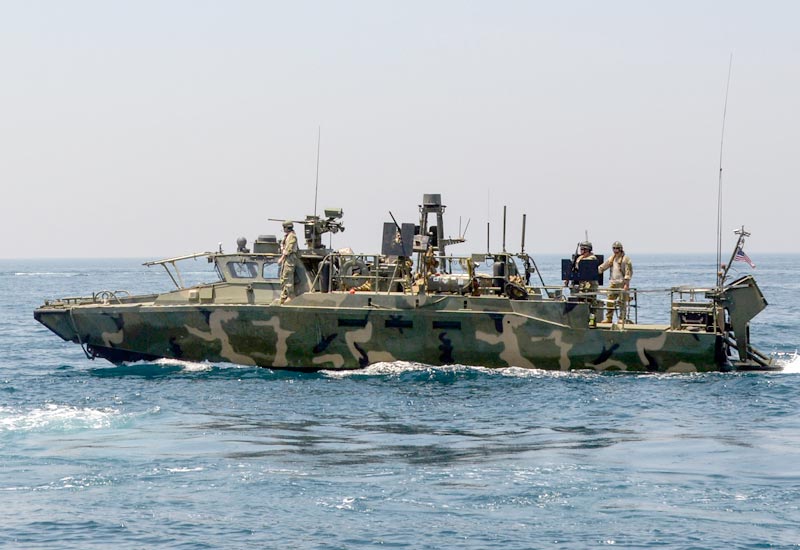

Image from the United States Department of Defense DVIDS imagery database.
2 / 3
Image from the United States Department of Defense DVIDS imagery database.
3 / 3
Image from the United States Department of Defense DVIDS imagery database.
