ARA Santa Cruz (S-41)

Diesel-Electric Attack Submarine [ 1984 ]

Commissioned in October of 1984, ARA Santa Cruz continues to have an active presence in the Argentine Navy.

Authored By: Staff Writer | Last Edited: 08/22/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

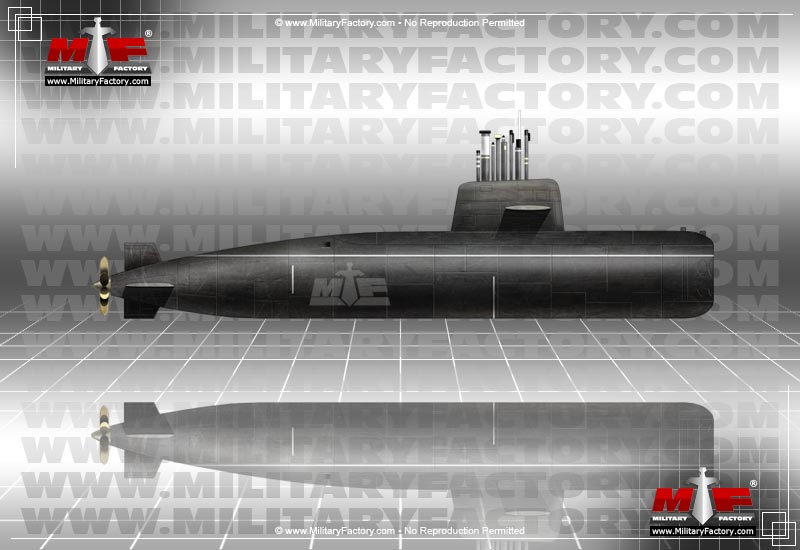

Image copyright www.MilitaryFactory.com; No Reproduction Permitted; ARA San Juan pictured.

GO TO SPECIFICATIONS [+]

Advertisements

The modern Argentine Navy fields an active submarine force numbering just three boats. These include ARA Santa Cruz (S-41) and ARA San Juan (S-42) of the Santa Cruz-class and ARA Salta (S-31) of the Salta-class. The force was commissioned in 1972 with the arrival of Salta and joined in 1985 by Santa Cruz and, in 1987, by San Juan. All three maintain an active presence in the Argentine Fleet.

The Santa Cruz-class is based on the standard "TR-1700" diesel-electric submarine design offered by Thyssen Nordseewerke of Germany that originated in the 1980s. They are conventional vessels through-and-through with basic functionality and performance as Cold War-era diesel-electric boats go. Power involves 4 x MTU diesel units for surface travel and 1 x Siemens electric motor for submerged work. Speeds reach 15 knots on the surface and 25 knots submerged. Range is 12,000 nautical miles when traveling on the surface while the mission endurance window numbers thirty days.

Onboard is a crew of twenty six. The radar fit is a Thompson CSF "Calpso" unit and sonar is handled through an Atlas Elektronik CSU alongside a Thompson "Sintra" DUUX-5. Armament consists of 6 x 533mm (21") bow-mounted torpedo tubes and 22 reloads are carried.

ARA Santa Cruz was completed on September 28th, 1982 and formally commissioned into service on October 12th 1984. In June of 2014 she made the news when the boat ran aground in waters near the Argentine capital city of Buenos Aires. Beyond this, there has been little notable news regarding the Santa Cruz.©MilitaryFactory.com

Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications

Service Year

1984

Origin

Argentina

Status

COMMISSIONED
In Active Service.

Complement

26
PERSONNEL

Class

TR-1700-class

Number-in-Class

6
VESSELS

Ships-in-Class

ARA Santa Cruz (S-41); ARA San Juan (S-42); ARA Santa Fe (S-43); ARA Santiago Del Estero (S-44); Boat #5 (S-45) (cancelled); Boat #6 (S-46) (cancelled)

Argentina

(OPERATORS list includes past, present, and future operators when applicable)

✓ Submerged Attack
Traveling under the surface to search, track, and / or engage or reconnoiter areas.

✓ Maritime Patrol
Active patroling of vital waterways and maritime areas; can also serve as local deterrence against airborne and seaborne threats.

✓ Fleet Support
Serving in support (either firepower or material) of the main surface fleet in Blue Water environments.

Length

217.0 ft
66.14 m

Beam

24.0 ft
7.32 m

Draught

21.0 ft
6.40 m

Displacement

2,335
tons

Disp.Submerged

2,500
tons

Installed Power: 4 x MTU diesel engines with 1 x Siemens electric motor driving power to 1 x Shaft.

Surface Speed

15.0 kts
(17.3 mph)

Submerged Speed

25.0 kts
(28.8 mph)

Range

11,879 nm
(13,670 mi | 22,000 km)

6 x 533mm (21") torpedo tubes (bow-facing) with 22 reloads.

Supported Types

Graphical image of an aircraft aerial torpedo

(Not all weapon types may be represented in the showcase above)

None.

Military lapel ribbon for the Cold War period

Military lapel ribbon for early warship designs

Military lapel ribbon for the Falklands War

Military lapel ribbon for the 1991 Gulf War

Military lapel ribbon for the Korean War

Military lapel ribbon representing modern aircraft

Military lapel ribbon for the Attack on Pearl Harbor

Military lapel ribbon for the Russian Invasion of Ukraine

Military lapel ribbon for the Vietnam War

Military lapel ribbon for the World War 1

Military lapel ribbon for the World War 2

Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective naval campaigns / operations / periods.

Images Gallery

1 / 1

Image copyright www.MilitaryFactory.com; No Reproduction Permitted; ARA San Juan pictured.
