USS Texas (BB-35)


Battleship (1914)


Naval Warfare

1 / 9
Image from the United States Department of Defense DVIDS imagery database.
2 / 9
Image from the United States Navy image archives.
3 / 9
Image from the United States Navy image archives.
4 / 9
Image from the United States Navy image archives.
5 / 9
Image from the United States Navy image archives.
6 / 9
Image from the United States Navy image archives.
7 / 9
Image from the United States Navy image archives.
8 / 9
Image from the United States Navy image archives.
9 / 9
Image from the United States Navy image archives.

Jump-to: Specifications

The USS Texas BB-35 was the second of the two-strong New York-class battleship family and saw combat in both World Wars - being saved as a museum ship.



Authored By: Staff Writer | Last Edited: 11/09/2020 | Content ©www.MilitaryFactory.com; the following text is exclusive to this site.
USS Texas (BB-35) became one of those rare warships in history to have survived the fighting of both World Wars before being preserved as a floating museum. The warship was ordered in the run-up to World War 1 (1914-1918) on June 24th, 1910, began construction in April of 1911 by Newport News Shipbuilding, and was launched on May 18th, 1912. Commissioned on March 12th, 1914, she began a career that would take "Mighty T" into both oceans bookending the United States before settling in Texas as a museum ship - by this time having earned her rest with five Battle Stars awarded.

USS Texas was constructed around the New York-class battleship standard which ended as just a two-strong group (USS New York BB-34 was the lead ship). As such, she was originally powered by 14 x Babcock & Wilcox coal-fired boiler units offering 28,100 horsepower to feed 2 x Vertical triple-expansion steam engines driving 2 x Shafts astern. This gave the warship a maximum speed of 21 knots out to a range of 7,060 nautical miles. Displacement reached 27,435 tons under standard loads and 28,825 tons under full loads. Dimensions included a length of 573 feet, a beam of 95.2 feet, and a draught down to 29.6 feet.

Aboard was a crew complement of 1,042 men. Armor protection reached 12 inches at the belt, 3 inches at the decks, 14 inches at the primary turrets, and 12 inches at the conning tower.

Armament centered on 10 x 14" (356mm) /45 caliber main guns set in five twin-gunned turrets. These were backed by 21 x 5" (127mm) /51 caliber turret barbettes scattered about the design. Beyond this were 4 x 3-pounder (47mm) /40 caliber saluting guns, 2 x 1-pounder (37mm) guns, and 4 x 21" (533mm) submerged torpedo tubes.

USS Texas was not given the typical "shakedown" cruise given to warships to stretch their legs and was placed immediately into action against neighboring Mexico, eventually supporting the landing of American forces at Veracruz in May of 1914. She fired the first American shots of World War 1 on April 19th, 1917 - this against a German U-boat driving it away. She then spent time with the British Grand Fleet until the end of the war in November 1918. She accompanied the American political contingent en route to the Paris Peace Conference that December.

During a 1925-1926 refit period, Texas was reworked with torpedo bulges, increasing her beam to 106 feet and displacement to 33,000 tons full. The propulsion scheme was modernized with 6 x Bureau Express oil-fired boiler units which helped to enhance operating ranges out to 15,400 nautical miles. Armament was now 10 x 14" main guns, 16 x 5" secondary guns, and 8 x 3" Anti-Aircraft (AA) guns with 2 x 1.1" AA guns in quad fittings. The torpedo launchers were removed and a single catapult added for the launching and recovery of up to three floatplane aircraft carried.

During World War 2, Texas conducted neutrality patrols prior to America's direct involvement in the conflict. Her first major combat exposure was during the Allied landings in Africa during "Operation Torch", October 23, 1942. In a 1942 refit, the warship was reworked, once again, to now carry 10 x 14" main guns, 6 x 5" secondary guns, 10 x 3" AA guns, and 14 x 20mm Oerlikon AA guns. Texas was an active participant in the D-Day landings on June 6th, 1944 and bombarded Cherbourg on June 25th. From there, she assisted amphibious forces in the southern France landings during "Operation Dragoon".

With the war in Europe over, USS Texas made her way to the Pacific Theater to continue the fight - her final actions aimed at the Japanese held island of Iwo Jima where her guns softened enemy positions as best they could. Her AA crews also claimed one kamikaze downing in the action and three partials. She then left for the Philippines and was present there when the Empire of Japan formally surrendered in August of 1945.

By this time, the ship finalized her firepower to become 10 x 14" main guns, 6 x 5" secondary guns, 10 x 3" guns, 10 x 40mm Bofors AA guns in quad-mountings, and 44 x 20mm Oerlikon AA guns. Her air arm was reduced to 2 x Vought OX2U "Kingfisher" floatplane aircraft (recoverable) before being completely removed (along with the catapult). Additionally, her crew numbered 1,810 personnel and she carried surface-search, air-search, and fire control radar systems -a far crew from her modest pre-World War 1 origins.

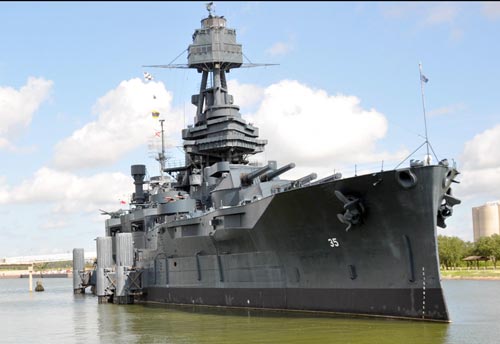

The ship was placed in reserve on June 18th, 1946. She was saved as a permanent memorial in the immediate post-war period where she resides today. Her name was struck from the Naval Register in April 1948.

Specifications



Service Year
1914

Origin
United States national flag graphic
United States

Status
DECOMMISSIONED
Preserved.
Complement
1,048
PERSONNEL


Class
New York-class
Number-in-Class
2
VESSELS
Ships-in-Class


USS New York (BB-34); USS Texas (BB-35)


National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
Offshore Bombardment
Offshore bombardment / attack of surface targets / areas primarily through onboard ballistic weaponry.
Land-Attack
Offshore strike of surface targets primarily through onboard missile / rocket weaponry.
Maritime Patrol
Active patroling of vital waterways and maritime areas; can also serve as local deterrence against airborne and seaborne threats.
Airspace Denial / Deterrence
Neutralization or deterrence of airborne elements through onboard ballistic of missile weaponry.
Fleet Support
Serving in support (either firepower or material) of the main surface fleet in Blue Water environments.
Flag Ship / Capital Ship
Serving in the fleet Flag Ship role or Capital Ship in older warship designs / terminology.


Length
573.0 ft
174.65 m
Beam
95.2 ft
29.02 m
Draught
27.9 ft
8.50 m
Displacement
27,000
tons


Installed Power: 2 x Dual-Acting Triple Expansion Reciprocating Steam Engines.
Surface Speed
21.0 kts
(24.2 mph)
Range
15,381 nm
(17,700 mi | 28,485 km)


(1914):
10 x 14" (360mm) /45 caliber turreted main guns in five twin-gunned mountings.
21 x 5" (127mm) /51 caliber secondary guns.
4 x 3-pounder tertiary guns.
4 x 21" (530mm) torpedo tubes.

(1945):
10 x 14" (360mm) /45 caliber main guns (5x2).
6 x 5" (127mm) /51 caliber guns.
10 x 3" (76mm) /50 caliber guns.
10 x 40mm Bofors Anti-Aircraft (AA) automatic cannons in quad mountings.
44 x 20mm Oerlikon AA automatic cannons.


Supported Types


Graphical image of a modern warship turreted deck gun armament
Graphical image of a historical warship turreted main gun armament
Graphical image of an aircraft automatic cannon
Graphical image of an aircraft aerial torpedo


(Not all weapon types may be represented in the showcase above)
2 x Vought OS2U "Kingfisher" floatplane aircraft (recoverable).
