Rock Island Arsenal M101


Towed 105mm Medium Howitzer


United States | 1920



"The reliable M101 went on to be used by no fewer than 67 armies worldwide making it one of the most successful artillery pieces ever produced."



Authored By: Dan Alex and JR Potts, AUS 173d AB | Last Edited: 07/16/2023 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site; No A.I. was used in the generation of this content.
The M101 105mm Medium Howitzer held roots during the interwar years, the period succeeding World War 1 (1914-1918) and preceding World War 2 (1939-1945). It was originally designated as "M1" and prototypes were developed in 1920 by the specialists at the Rock Island Arsenal. After extensive trials, the M1 was replaced by the "M2" during 1934 and added support for a shrapnel-based projectile. It was not until 1940 that the M2 was standardized as the "M2A1".

Such long periods of development were normal for American artillery system until the attack on Pearl Harbor on December 7th, 1941 - after which development of military hardware became the primary focus of the U.S. government. The M2 began production in 1941 and saw considerable action on all fronts against the Axis forces and stood as the standard medium-class field howitzer for American forces in the conflict. It was issued to both the U.S. Army and the USMC and was found to be extremely reliable and accurate and was well-received by troops in the field. After World War 2 the M2 was reclassified, one more, as the "M101". Production run lasted until 1953 and 10,202 units were produced.

A horizontal breech block was used with a percussion firing system and, to achieve consistent stability (therefore aiding accuracy), the recoil system was mounted over and under the short barrel section. Elevation was -5 degrees to + 66 degrees with traverse of 46 degrees. Range of the M1 projectile was reported out to 12,325 yards while the M548 projectile recorded a range of up to 15,965 yards. A rate-of-fire of 10 rounds-per-minute could be achieved with 3 rounds-per-minute of sustained fire.

The M101 was a hardy and reliable product though not without drawbacks - moderate range and a declining rate-of-fire from 10 rpm to just 3 rpm with sustained fire. In its favor was a life span of 20,000 rounds and large stock piles of whole units and individual parts (for spares). The ammunition used was the standard NATO 105mm High-Explosive (HE) projectile. Other projectile supported projectile types went on to include a version with 18 x M39 grenades and a HESH (High-Explosive, Squash Head) round able to penetrate 102mm (4") of armor at 1500 meters (1,640 yards). Various detonation types were used - impact and fuse-based. The operating crew numbered eight enlisted men and the carriage was a conventional split-trail design. The gun fired front its mounting atop the road wheels and held an excellent center-of-gravity.

Beyond its service tenure during World War 2, the M101 remained in service long enough to contribute to American actions in the Korean War (1950-1953) and the Vietnam War (1955-1975). The weapons provided excellent non-line-of-sight (plunging fire) against foes when 155mm howitzer types were too excessive or impractical.

The reliability of the gun and high production run led many American allies to acquire the M101 even after it was retired from service in the U.S. inventory. Nearly seventy countries purchased the weapon making it one of the most successful field pieces ever conceived. The weapon was also adaptable to vehicle designs as seen in several American World War 2 trials and production types. Other self-propelled forms emerged outside of the United States as well.

Content ©MilitaryFactory.com; No Reproduction Permitted.
Power & Performance
Those special qualities that separate one land system design from another. Performance specifications presented assume optimal operating conditions for the Rock Island Arsenal M101 Towed 105mm Medium Howitzer.
None. This is a towed artillery piece.
Installed Power
7 miles
11 km
Range
Structure
The physical qualities of the Rock Island Arsenal M101 Towed 105mm Medium Howitzer.
8
(MANNED)
Crew
19.7 ft
5.99 meters
O/A Length
7.1 ft
2.16 meters
O/A Width
5.2 ft
1.57 meters
O/A Height
4,978 lb
2,258 kg | 2.5 tons
Weight
Armament & Ammunition
Available supported armament, ammunition, and special-mission equipment featured in the design of the Rock Island Arsenal M101 Towed 105mm Medium Howitzer.
1 x 105mm main gun tube.
AMMUNITION:
Dependent on ammunition carrier.
SPECIAL EQUIPMENT:
Nightvision - NONE.
Chemical, Biological, Radiological, Nuclear Protection (CBRN) - NONE.
Variants
Notable series variants as part of the Rock Island Arsenal M101 family line.
M1 - Rock Island Arsenal development appearing in 1920.
M2 - Replaced M1 series in 1934 after retooled to fire shrapnel round.
M2A1 - Standardized Designation
M101 - Reclassified post-World War 2; production lasting into 1953 and totaling 10,202 units.
M3 - 75mm system with a shortened barrel (used in South East Asia).
HM2 - French-design with an AMX-105/50 barrel
C1 - Canadian type with auto-frettaged monobloc barrel.
KM101A1 - South Korean Army designation
Operators
Global customers who have evaluated and/or operated the Rock Island Arsenal M101. Nations are displayed by flag, each linked to their respective national land systems listing.

Total Production: 10,202 Units

Contractor(s): Rock Island Arsenal - USA / Kia Machine Tool; Hyundai - South Korea
National flag of Argentina National flag of Australia National flag of Austria National flag of Bahrain National flag of Bangladesh National flag of Belgium National flag of Bosnia and Herzegovina National flag of Brazil National flag of Cameroon National flag of Canada National flag of Chile National flag of Croatia National flag of the Dominican Republic National flag of Ecuador National flag of France National flag of modern Germany National flag of Greece National flag of India National flag of Indonesia National flag of Iraq National flag of Iran National flag of modern Japan National flag of Lebanon National flag of Lithuania National flag of Macedonia National flag of Malaysia National flag of Mexico National flag of Morocco National flag of Nicaragua National flag of Norway National flag of Pakistan National flag of Peru National flag of the Philippines National flag of Portugal National flag of Senegal National flag of Serbia National flag of South Africa National flag of South Korea National flag of Taiwan National flag of Thailand National flag of Turkey National flag of the United States National flag of Uruguay National flag of Vietnam

[ Argentina; Australia; Austria; Bahrain; Bangladesh; Belgium; Benin; Bosnia and Herzegovina; Brazil; Burkina Faso; Cambodia; Cameroon; Canada; Chile; Columbia; Croatia; Dominican Republic; Ecuador; El Salvador; France; West Germany; Greece; Guatemala; Honduras; India; Indonesia; Iran; Iraq; Japan; Lebanon; Lithuania; Macedonia; Malaysia; Mexico; Morocco; Maynmar; New Zealnad; Nicaragua; Norway; Pakistan; Paraguay; Peru; Philippines; Portugal; Rhodesia; Senegal; South Africa; Thailand; Togo; Turkey; Uruguay; Serbia; South Korea; Taiwan; United States; Vietnam ]
1 / 5

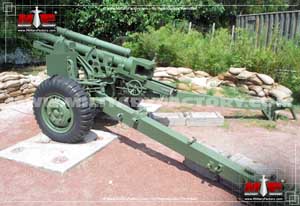

Image of the Rock Island Arsenal M101
