IVECO VBTP-MR (Guarani)


Wheeled Armored Personnel Carrier (APC) [ 2012 ]



The Brazilian VBTP-MR Guarani vehicle was made possible by Iveco of Italy and developed to replace the aging line of EE-11 Urutu vehicles in service with the Brazilian Army.



Authored By: Staff Writer | Last Edited: 12/16/2017 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
Iveco of Italy has delivered an all-modern Armored Fighting Vehicle (AFV) solution to the Brazilian Army through the joint "VBTP-MR" - the vehicle recognized locally under the "Guarani" name. The system was designed to an Army specification calling for a replacement for the aging EE-9 "Cascavel" and EE-11 "Urutu" line of vehicles of similar form and battlefield function (the vehicles detailed elsewhere on this site). The VBTP-MR brings along with it all the modern comforts and safety for the crew as well as features such as a Remote Weapon Station (RWS) and strong drive power. 6x6 and 8x8 forms make up the standard configuration of the family from which several variants have been planned to serve in specialized battlefield roles.

The 16.7 ton vehicle sports a length of 23 feet, a width of 9 feet and a height of 7.7 feet. The base operating crew numbers two (driver and commander) and there is seating for up to nine combat-ready personnel in the passenger compartment. The wheeled nature of the design lowers production and procurement costs and is in line with the growing global trend shifting to wheeled vehicle types over "track-and-wheel" models.

Beyond the multi-wheeled configuration supporting cross-country and road travel, the VBTP-MR sports a hydropneumatic suspension system for ride comfort. Road speeds reach nearly 70 miles per hour with ranges out to 370 miles. Power is served through an Iveco "Cursor 9" series diesel-fueled engine of 383 horsepower.

The general hull shape is traditional with a very sloped, near-horizontal, glacis plate showcased at the front. The hull roof is flat as are the hull sides and offer protection from small arms fire and artillery spray. The hull structure is suspended high above the ground giving excellent clearance. The vehicle is also completed with an amphibious capability. Doors at the rear of the hull provide protected entry/exit access for the passengers. With the driver seated at front-left, the engine is installed at front-right with the commander's position aft of the driver. This leaves the rear of the hull available for the passengers.©MilitaryFactory.com
Advertisements
The basic APC model is defensed by machine guns and personal weapons carried by the occupants whereas the definitive fighting form introduces a remote-controlled turret armed with a 30mm Mk 44 Bushmaster II series autocannon and 7.62mm coaxial machine gun. The turret is of Israeli design (Elbit Systems) and is manufactured locally under license. A 12.7mm Heavy Machine Gun (HMG) supplies local air defense and can be used against light-armored threats as well. Smoke grenade dischargers provide a self-screening action for the vehicle and crew.

Beyond the aforementioned models, the VBTP will also appear in more dedicated battlefield forms such as a Command and Control (C2) variant, armored ambulance, tank-killer (proposed), and mortar carrier (120mm caliber). This lineup showcases the versatility of the Italian design.

The Brazilian Army is slated to received over 2,000 VBTP-MRs into 2030 with deliveries having begun in 2012 through an initial 200-strong batch. The system will also be used by Brazilian Marine forces.

The Lebanese Army is the only recognized export customer of the vehicle to date (2016).

December 2017 - The Brazilian military reaffirmed their commitment to succeeding the aging line of EE-11 Urutu vehicles with the Italian VBTP-MR.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
2012

Origin
Brazil national flag graphic
Brazil

Crew
2
CREWMEN
Production
2,044
UNITS


IVECO Latin America - Brazil / Italy
(View other Vehicle-Related Manufacturers)
National flag of Brazil National flag of Lebanon Brazil (planned); Lebanon
(OPERATORS list includes past, present, and future operators when applicable)
Infantry Support
Support allied ground forces through weapons, inherent capabilities, and / or onboard systems.


Length
22.6 ft
6.9 m
Width
8.9 ft
2.7 m
Height
7.7 ft
2.35 m
Weight
36,817 lb
16,700 kg
Tonnage
18.4 tons
LIGHT
(Showcased structural values pertain to the base IVECO VBTP-MR (Guarani) production variant. Length typically includes main gun in forward position if applicable to the design)
Powerplant: 1 x Iveco "Cursor 9" diesel fueled engine developing 383 horsepower.
Speed
68.4 mph
(110.0 kph)
Range
372.8 mi
(600.0 km)
(Showcased performance specifications pertain to the base IVECO VBTP-MR (Guarani) production variant. Compare this entry against any other in our database)
APC Version Standard:
1 x 30mm Mk 44 "Bushmaster II" autocannon in Elbit remote-controlled turret.
1 x 7.62mm FN MAG Medium Machine Gun (MMG) in coaxial position.
1 x 12.7mm M2HB Heavy Machine Gun (HMG)


Supported Types


Graphical image of a tank automatic cannon
Graphical image of a tank medium machine gun
Graphical image of a tank heavy machine gun


(Not all weapon types may be represented in the showcase above)
Not Available.


VBTP - Base APC version
VBCI - Fighting vehicle version with 30mm main armament.
VBE-CP - Command Post vehicle
VBE-MOR - 120mm mortar carrier
VBE-REC - Turreted 105mm main gun
VBE-TK - Turreted 120mm main gun for tank destroyer role.
VBE-CDT - Fire Control vehicle
VBE-COM - Command and Control vehicle
VBE-WRK - Mobile workshop vehicle
VBE-REL - Relief vehicle
VBTE - Battlefield ambulance variant


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 1

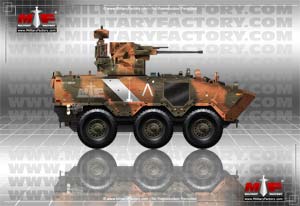

Image of the IVECO VBTP-MR (Guarani)
