S-23 (Nywka C-23)


180mm Towed Large-Caliber Howitzer Artillery [ 1955 ]



When paired with other Soviet artillery weapons, the S-23 would have added a ferocious punch to an already intimidating barrage.



Authored By: Staff Writer | Last Edited: 09/29/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The S-23 was a heavy gun developed by Soviet military industry during the early-Cold War period and exported to allies across the Soviet sphere of influence. The massive, 180mm towed gun system relied on a sixteen man crew for efficient operation and was towed by an AT-T heavy-tracked mover vehicle - also carrying the gunnery crew their supplies as well as ammunition stocks. As expected, the projectiles were of large dimension and extremely heavy due to their caliber, the HE (High-Explosive) version weighing 185.4 lb while the concrete-piercing version was 215.4 lb.

The gun could also fire a 0.2kt nuclear projectile if need be.

A typical Soviet Army heavy artillery brigade of the period would showcase about 12 of the S-23 weapons which provided a staggering amount of on-call, target-area fire when operated in conjunction with 130mm and 155mm field howitzers in the division.

The S-23 system showcased a 28.10 foot gun tube. To reduce the overall length, the barrel could be locked to the trailing double wheel carriage which also aided in road transportation of the unit. The carriage was a standard "split arm" type and was completed with two twin rubber-tired roadwheels, one axle set to the front and a dolly to the rear.

Rate-of-fire (RoF) was about one round-per-minute and one round per two minutes when attempting sustained fire actions. The effective range of an HE projectile was out to 30,400 meters (33,245 yards) while a Rocket-Assisted Projectile (RAP) could reach well within 43,800 meters (47,900 yards).

The series was widely exported with operators in ranging from Cuba and Egypt to Syrian and Yemen. The gun was produced in the thousands.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1955

Origin
Soviet Union national flag graphic
Soviet Union

Crew
16
CREWMEN
Production
3,000
UNITS


State Factories - Soviet Union
(View other Vehicle-Related Manufacturers)
National flag of Cuba National flag of Egypt National flag of Ethiopia National flag of India National flag of Iraq National flag of Libya National flag of North Korea National flag of the Soviet Union National flag of Somalia National flag of Syria National flag of Yemen Cuba; Egypt; Ethiopia; India; Iraq; Libya; Mongolia; North Korea; Somalia; Soviet Union; Syria; Yemen
(OPERATORS list includes past, present, and future operators when applicable)
Fire Support / Assault / Breaching
Support allied forces through direct / in-direct fire, assault forward positions, and / or breach fortified areas of the battlefield.


Length
34.4 ft
10.48 m
Width
9.8 ft
2.99 m
Height
8.6 ft
2.62 m
Weight
47,289 lb
21,450 kg
Tonnage
23.6 tons
MEDIUM
(Showcased structural values pertain to the base S-23 (Nywka C-23) production variant. Length typically includes main gun in forward position if applicable to the design)
1 x 180mm Gun Barrel.


Supported Types




(Not all weapon types may be represented in the showcase above)
Dependent upon Ammunition Carrier.


S-23 - Base Series Designation
180mm Nywka C-23 - Alternative Designation


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 1

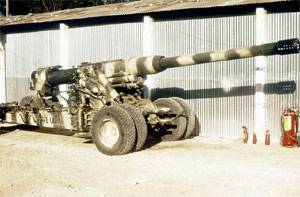

Image of the S-23 (Nywka C-23)
