Nexter (GIAT) VBCI (Vehicule Blinde de Combat d'Infanterie)


8x8 Wheeled Infantry Fighting Vehicle (IFV) [ 2008 ]



Entering service in 2008, the GIAT VBCI is an all-modern 8x8 wheeled armored vehicle for the French Army.



Authored By: Staff Writer | Last Edited: 12/28/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
During the last decade there began a definitive move away from costly and complex tracked armored vehicles to more cost-effective all-wheeled solutions. This proved the case with the fighting forces in Europe including the Belgian and French armies. For the former, combat tanks have been abandoned altogether in favor of wheeled vehicles. For the latter, the Giat Industries Vehicule blinde de Combat d'Infanterie (VBCI) was adopted as an 8x8 wheeled, all-terrain, modular Infantry Fighting Vehicle (IFV) to replace its outgoing stock of AMX-10P tracked IFVs of late-1960s heritage. The VBCI formally entered French Army service during 2008 and several hundred of the type (in two distinct model forms) will eventually form VBCI strength in inventory.

Origins of the VBCI are in the early portion of the 1990s when the French sought an all-modern IFV solution through the Vehicule Blinde Modulaire ("Modular Armored Vehicle") program. The program picked up some speed when interest came from Britain and Germany but by the end of the decade, the VBM project had fallen to naught. A new indigenous French IFV project was formed and development resulted in a four-axle, 8-wheeled Armored Fighting Vehicle (AFV). Pilot vehicles (five in all including one Command Vehicle (CV) model) showcased a conventional, yet sleek, overall design with sound battlefield capabilities. Testing ensued during 2003 to 2005 through an early batch though delays encountered with the intended single-crew powered turret pushed service entry back for the vehicle was not introduced in number until 2008. The French Army had originally ordered some 700 units back in 2000 but this total was reduced by the end of the development phase. 550 of the base IFV model were ordered as the VBCI with 150 of the CV mark being taken on - this vehicle recognized as the VPC.

The initial French Army unit to equip with the type became the 35th Infantry Regiment (Belfort). At one time, the British Army was considering purchase of the VBCI to fulfill a new Armored Fighting Vehicle (AFV) requirement all their own in a "technology swap" sale (the French would have purchased Watchkeeper drones in turn). The British program eventually fell to nothing which effectively stopped any chance of sales for both sides.

Design-wise, the VBCI features a proven 8x8 wheeled military arrangement. The eight large, real-time adjustable, run-flat road wheels give excellent ground clearance, balance, and displacement allowing for some obstacle crossing and water fording capability to be had. The hull superstructure sports a well-sloped glacis plate at front with a vertical wall making up the vehicle's rear face. The eight-wheeled arrangement allows for power-assisted steering of the first two axles (four wheels). The driver sits at front-left in the hull with the powerpack to his right and the vehicle commander to his immediate rear (the gunner is in the turret). The engine is a Renault diesel-fueled installation developing 550 horsepower. The placement of the engine at front allows the rear of the hull to be used for passenger seating and the middle of the hull to be used as the turret emplacemnet. Overall dimensions (7.6x2.98x3 meters) are such that the VBCI can be air-transported in the hold of an Airbus A400M "Atlas" or similar transport aircraft. Performance includes a maximum road speed of 62 miles per hour with an operational range out to 470 miles. Suspension is across all eight wheels for true cross-country travel capabilities. At the rear of the vehicle is a large powered door that lowers to become the access ramp. Passengers are given two rows of seating with four seats each.©MilitaryFactory.com
The fighting aspect of the VBCI not only includes its infantry passengers but also the DRAGAR turret seated atop the hull roof with full 360-degree traversal. The 25x137mm M811 dual-feed cannon (NATO standard shells) features a rate-of-fire of 400 rounds-per-minute and is fully-stabilized for accurized fire at range. A laser rangefinder and thermal imaging device is standard. The turret is a one-man design fitting a useful autocannon as well as anti-infantry machine gun and smoke grenade dischargers for self-defense. The cannon provides protection against light armored vehicles, heavy suppression fire against enemy infantry, and can even be used to engage low-flying threats like helicopters. The coaxial machine gun also serves in an anti-infantry role and as a suppression weapon. Smoke grenade dischargers help to shield the position of the vehicle against enemy eyes - it can be used as both an offensive and defensive measure depending on the battlefield situation.

Base armor protection of the vehicle is up to small arms fire (14.5mm or less) and shell splinters. The hull features welded aluminum construction with titanium added to more critical regions. Internal spall liners add another layer of protection for the crew and its important systems. The cabin floor is given some measure against mines as well.

The base VBCI IFV model is the VCI and this vehicle serves with a standard crew of three (driver, commander, and gunner) and offers passenger-hauling for up to nine combat-ready troops. The turret sports the aforementioned 25mm main gun coupled with the 7.62mm coaxial machine gun. The VPC is the CV model and uses a standard crew of two with seven specialists. A simplified turret mounts a sole 12.7mm heavy machine gun for local air and infantry defense and this mark also features two SIP workstations and additional communications equipment. The VTT is a third mark intended as a dedicated troop transport for export sale. Its crew is two with seating for ten combat-ready troops. All VBCI vehicles feature NBC (Nuclear, Biological, Chemical) and IFF (Identification Friend-or-Foe) equipment as standard.

The VBCI has already seen combat action with French forces fighting in Mali against extremists.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
2008

Origin
France national flag graphic
France

Crew
3
CREWMEN
Production
630
UNITS


GIAT Industries / Nexter Systems - France
(View other Vehicle-Related Manufacturers)
National flag of France France
(OPERATORS list includes past, present, and future operators when applicable)
Amphibious Assault
Traverse bodies of open water under own power with / without preparation.
Infantry Support
Support allied ground forces through weapons, inherent capabilities, and / or onboard systems.


Length
24.9 ft
7.6 m
Width
9.8 ft
2.98 m
Height
9.8 ft
3 m
Weight
57 lb
26 kg
(Showcased structural values pertain to the Nexter VBCI (Vehicule Blinde de Combat d'Infanterie) production variant. Length typically includes main gun in forward position if applicable to the design)
IFV:
1 x 25mm M811 autocannon
1 x 7.62mm coaxial machine gun
14 x Smoke Grenade Dischargers

CV:
1 x 12.7mm Heavy Machine Gun (HMG)
8 x Smoke Grenade Dischargers


Supported Types


Graphical image of a tank automatic cannon
Graphical image of a tank medium machine gun
Graphical image of a tank heavy machine gun
Graphical image of tank /armored vehicle smoke grenade dischargers


(Not all weapon types may be represented in the showcase above)
Dependent on armament installed; 14 x Smoke Grenades.


VBCI (Vehicule Blinde de Combat d'Infanterie) - Base series designation.
VCI - Infantry Combat Vehicle derivative; 510 planned procurement for French Army; crew of three with seating for nine; powered turret with 1 x 25mm autocannon and 1 x 7.62mm coaxial machine gun.
VPC - Command Post Vehicle variant; 120 planned procurement for French Army; crew of two with seven mission specialists carried; 1 x 12.7mm HMG armament.
VTT - Troop Transport Vehicle (APC) model intended for export; crew of two with seating for ten.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 1

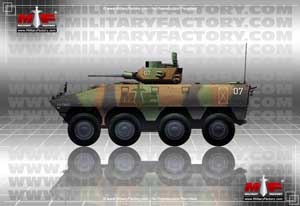

Image of the Nexter (GIAT) VBCI (Vehicule Blinde de Combat d'Infanterie)
