ASLAV (AuStralian Light Armored Vehicle)


8x8 Light Armored Fighting Vehicle [ 1997 ]



The Australian LAV is now a proven combat veteran, having seen action in Afghanistan and Iraq.



Authored By: Staff Writer | Last Edited: 02/04/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The ASLAV (Australian Light Armored Vehicle) is similar in most respects to the American LAV-25 and Canadian Coyote series of eight-wheeled reconnaissance vehicles. All are based on the Swiss MOWAG Piranha with production mainly held out of the General Dynamics Land Systems Canada though ASLAVs have emerged through the General Dynamics Land Systems Australia brand label. Production spanned from 1995 to 2007 to which some 257 vehicles have been delivered in several variants. These vehicles have seen combat service in the 2001 invasion of Afghanistan, the 2003 invasion of Iraq and in the unrest of East Timor as part of a United Nations initiative.

Joining other modern world powers, the Australian Army settled on an armored wheeled offering over the more expensive and complex tracked vehicles available. Work on acquiring a new light armored vehicle for Australian ground forces began in 1990 when over a dozen United States Marine Corps LAV-25 systems were battle-tested by Australian units for durability, reliability, adaptability and mobility across local terrain. With some modifications in place to suit Australian Army requirements, the ASLAV was born in 1992. Design work continued into 1994 and serial production commenced the following year. Full-strength was then reached in 1997 with the 2nd Cavalry Regiment through 113 being procured by this time. A second batch then followed that was 144-strong bringing the total number of ASLAVs in circulation to the aforementioned 257 value.

Modularity is the key to the ASLAV and available "kits" allow the base hull to undertake several major battlefield roles. Additionally, Australian LAVs are outfitted with air conditioning units for crew comfort. Life extension programs have introduced modernized thermal imaging systems and an improved 8x8 suspension system. Tires (independently sprung) feature a run-flat capability and power can be driven to all four or just two axles as needed.

Many other facets of the ASLAV remain faithful to the original Canadian Coyote and American LAV-25. The vehicle carries an operating crew of three with seating for six combat-ready infantry. Length measures 6.5 meters with a width of 2.6 meters and height to turret roof of 2.7 meters. Main armament is the 25mm M242 "Bushmaster" series chain gun in the powered turret which also features a 7.62mm machine gun (FN MAG 58) in a coaxial arrangement. An optional 7.62mm machine gun can be fitted to the turret roof as an anti-aircraft measure. Eight smoke grenade dischargers allow the vehicle to produce its own defensive- or offensive-minded smoke screen as needed. Power is through a Detroit Diesel 6V-53T diesel-fueled engine of 275 horsepower offering a maximum road speed of 75 miles per hour and operational range of 410 miles. The vehicle is fully-amphibious and able to traverse water sources as required.

The turret is seated over the middle-rear portion of the hull roof. The passenger cabin is to the rear while the driver is front-left with the powerpack to his right (pushing the turret slightly offset to the left). Passenger entry/exit is through a pair of outward-swinging, hinged, rectangular doors found at the rear hull face. The vehicle is fully suspended across its eight-wheels (four wheels to a hull side) with a spare attached to the rear hull wall.

There remains three major variant designations of the ASLAV as the Type I, Type II and Type III with subvariants in-between. The base model is the ASLAV-25 (Type I) used in the armored/armed reconnaissance role. Type II versions include the ASLAV-PC which serves as an Armored Personnel Carrier, features an operating crew of two and carries seven infantry. The ASLAV-C is a Type II command vehicle. The ASLAV-S is a surveillance-minded vehicle while the ASLAV-A is a Type II model battlefield ambulance. Type III models include the ASLAV-F maintenance support vehicle with powered crane and the ASLAV-R Armored Recovery Vehicle (ARV) with powered winch.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1997

Origin
Australia national flag graphic
Australia

Crew
3
CREWMEN
Production
257
UNITS


General Dynamics Land Systems - Canada / Australia
(View other Vehicle-Related Manufacturers)
National flag of Australia Australia
(OPERATORS list includes past, present, and future operators when applicable)
Amphibious Assault
Traverse bodies of open water under own power with / without preparation.
Engineering
Onboard systems provide solutions to accomplish a variety of battlefield engineering tasks.
Infantry Support
Support allied ground forces through weapons, inherent capabilities, and / or onboard systems.
Reconaissance
Can conduct reconnaissance / scout missions to assess threat levels, enemy strength, et al - typically through lightweight design.


Length
21.4 ft
6.53 m
Width
8.6 ft
2.62 m
Height
8.8 ft
2.69 m
Weight
32,077 lb
14,550 kg
Tonnage
16.0 tons
LIGHT
(Showcased structural values pertain to the base ASLAV (AuStralian Light Armored Vehicle) production variant. Length typically includes main gun in forward position if applicable to the design)
Powerplant: 1 x Detroit Diesel 6V-53T diesel-fueled engine developing 275 horsepower.
Speed
74.6 mph
(120.0 kph)
Range
410.1 mi
(660.0 km)
(Showcased performance specifications pertain to the base ASLAV (AuStralian Light Armored Vehicle) production variant. Compare this entry against any other in our database)
1 x 25mm M242 Bushmaster chain gun.
1 x 7.62mm FN MAG 58 coaxial machine gun.
1 x 7.62mm FN MAG 58 anti-aircraft machine gun on turret roof (optional).
2 x 4 Smoke grenade dischargers.


Supported Types


Graphical image of a tank automatic cannon
Graphical image of a tank medium machine gun
Graphical image of tank /armored vehicle smoke grenade dischargers


(Not all weapon types may be represented in the showcase above)
720 x 25mm projectiles.
1,000 x 7.62mm ammunition.
8 x Smoke grenades.


ASLAV (Type I) - Base armored reconnaissance model; crew of three with seating for six.
ASLAV-PC (Type II) - Armored Personnel Carrier; crew of two with seating for seven; 0.50 caliber machine gun armament; support for Remote Weapon Station (RWS).
ASLAV-C (Type II) - Command Vehicle
ASLAV-S (Type II) - Surveillance Vehicle
ASLAV-A (Type II) - Battlefield Ambulance; sans powered turret; 1 x 0.50 cal heavy machine gun.
ASLAV-F (Type III) - Maintenance support vehicle with powered crane.
ASLAV-R (Type III) - Armored Recovery Vehicle with powered winch.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 1

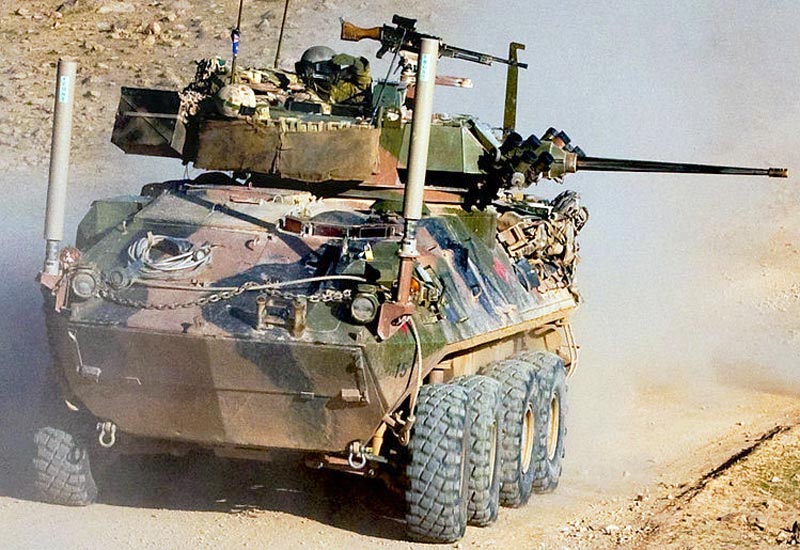

Image of the ASLAV (AuStralian Light Armored Vehicle)
Image courtesy of the United States Army imagery database; released to the Public Domain.
