9A52-4 Tornado


Wheeled Multiple Launch Rocket System (MLRS) [ 2011 ]



The 9A52-4 Tornado MLRS continues the Russian love affair with wheeled rocket-launching vehicles.



Authored By: Staff Writer | Last Edited: 03/21/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
Since the dark days of World War 2, the Russian (then Soviet) Army has placed a premium on wheeled Multiple Launch Rocket Systems (MLRSs). The trend continues today with the 9A52-4 "Tornado" 8x8 wheeled rocket projector which was adopted in 2011 as an upgrade replacement for the aged BM-21, BM-27 and BM-30 MLRS lines. The vehicle is manufactured by the Motovilikha Plant of Perm, Russia and some 36 have been procured heading into 2014. It is expected that the new design will outright replace all comparable models within the next decade.

The Tornado is a complete mobile weapons platform consisting of a fully-suspended, heavy-duty mover vehicle (with integrated crew cabin) and a rear-mounted rocket launcher system. The vehicle portion itself is the KamAZ-63501 truck designed specifically for heavy-duty military service while being powered by a single JamAZ-740.50.360 diesel-fueled engine of 360 horsepower output. The 8x8 wheeled nature of the chassis allows the vehicle to traverse cross country when necessary as well as reach its maximum speed of 90 kilometers per hour on paved roads. Operational range of the vehicle is 1,000 kilometers. A typical operating crew is just two personnel (including a driver) thanks to heavy use of automation in the firing sequence. The overall vehicle weight is in the range of 24.5 tons and, dimensionally, features a length of 11.2 meters with a width of 2.5 meters and a height of 3.15 meters.©MilitaryFactory.com
The armament portion of the 9A52-4 vehicle is adaptable to the battlefield need. The launcher is capable of supporting launch tubes of 122mm, 220mm or 300mm in caliber though the larger the rocket used, the lower the total number of rockets launched. 15 x 122mm rockets can be carried compared to 8 x 220mm types or 6 x 300mm types. The maximum engagement range of the launcher unit is approximately 90 kilometers when using the base rocket. A complete salvo can be cleared in under 10 seconds, allowing the vehicle to retreat, reload and reposition for a second assault. A full line of such vehicles can have a devastating physical and psychological effect on the enemy. The Tornado system allows for complete Non-Line-Of-Sight (NLOS) engagement and rockets can carry a variety of in-circulation warhead types including High-Explosive, FRAGmentation (HE-FRAG), anti-personnel, anti-armor "minelets", cluster munitions, thermobaric and incendiary. The crew is aided by several onboard systems which provide the necessary accuracy/precision at range including an all-digital Fire Control System (FCS).

To date, the Tornado series - having originated with the Tornado-G (upgrading the BM-21 "Grad" line), has seen an additional variant form emerge as the "Tornado-S", this version promising improved engagement ranges and precision thanks to use of a GLONASS (GLObal NAvigation Satellite System). The Tornado-S is a BM-30 "Smerch" upgrade and already in use with the Indian Army. The Tornado-U is an upgrade to the BM-27 "Uragan" line of MLRSs.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
2011

Origin
Russia national flag graphic
Russia

Status
ACTIVE
In Active Service.
Crew
2
CREWMEN
Production
56
UNITS


National flag of India National flag of Russia India; Russia
(OPERATORS list includes past, present, and future operators when applicable)
Fire Support / Assault / Breaching
Support allied forces through direct / in-direct fire, assault forward positions, and / or breach fortified areas of the battlefield.


Length
36.7 ft
11.2 m
Width
8.2 ft
2.5 m
Height
10.3 ft
3.15 m
Weight
49,295 lb
22,360 kg
Tonnage
24.6 tons
MEDIUM
(Showcased structural values pertain to the base 9A52-4 Tornado production variant. Length typically includes main gun in forward position if applicable to the design)
Powerplant: 1 x KamAZ-740.50.360 diesel engine developing 360 horsepower.
Speed
55.9 mph
(90.0 kph)
Range
621.4 mi
(1,000.0 km)
(Showcased performance specifications pertain to the base 9A52-4 Tornado production variant. Compare this entry against any other in our database)
15 x 122mm rocket launch tubes OR 8 x 220mm rocket launch tubes OR 6 x 300mm rocket launch tubes.


Supported Types


Graphical image of tank battlefield rockets


(Not all weapon types may be represented in the showcase above)
Dependent on launch tube installation.


9A52-4 "Tornado" - Base Series Designation
9A53-G "Tornado" - Upgraded BM-21 "Grad" vehicles
9A53-U "Tornado" - Upgraded BM-27 "Urugan" vehicles
9A53-S "Tornado" - Upgraded BM-30 "Smerch" vehicles


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 2
Image of the 9A52-4 Tornado
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
2 / 2
Image of the 9A52-4 Tornado

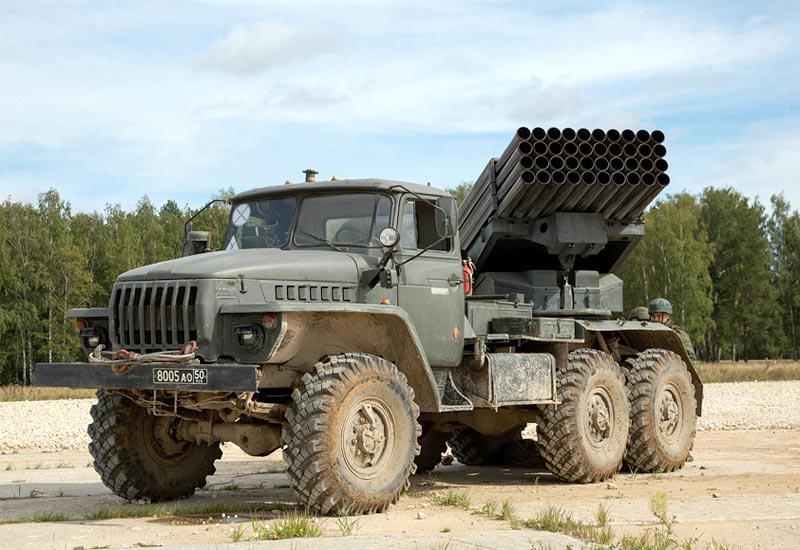

Image from the Russian Ministry of Defense; Tornado-G pictured.
