GIAT GCT (Grande Cadence de Tir)

155mm Self-Propelled Gun (SPG) [ 1977 ]

The GCT 155mm Self-Propelled Gun platform currently serves the armies of France and Saudi Arabia.

Authored By: Staff Writer | Last Edited: 08/05/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

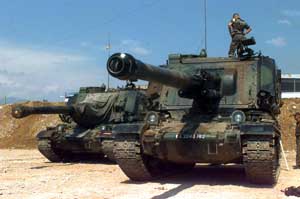

The GIAT GCT is the primary tracked, self-propelled gun platform of the modern French Army. The system is akin to the American M109 Paladin, the British AS-90 and the Russian 2S19 in both form and function, featuring a high-profile hull superstructure mounting a potent 155mm main gun and a tracked hull design. The configuration is proven and emerged from experiences of World War 2 armored warfare. The GCT has since been produced in the hundreds and forms the long arm of the Saudi Army while dozens of examples were shipped to Iraq prior to the 2003 coalition invasion. Modernization has kept this 1970s'era system viable on the modern battlefield for French forces.

In 1962, the French Army adopted the 155mm Mk F3 self-propelled gun to manage its long-range hitting power. The system underwent design as early as 1952 and entered production a decade later, realizing approximately 600 units before manufacture ceased in 1997. The 17-ton system fielded a 155mm main gun and was powered by a SOFAM 8Gxb 8-cylinder gasoline fueled engine while being crewed by four personnel (of which only two could actually be carried on the vehicle proper). Despite production ongoing into the 1980s, the French Army sought its replacement and looked to a fully-functional, enclosed track-and-wheel system mounting a 155mm main gun in a traversing turret. Development, therefore, began in 1969 on a such a system with GIAT (now Nexter) granted production of the new vehicle.

The new vehicle was adopted into French Army service as the "GCT" ("Grande Cadence de Tir"), built upon the existing chassis of the AMX-30 Main Battle Tank (MBT). An all-new boxy turret enclosure was developed housing the breech of the 155mm main gun which allowed for engagement at all angles. The weapon was given an automatic loader (though manual was still possible) which allowed for a rate-of-fire of eight rounds per minute with ranges out to 23,500 meters depending on projectile used (rocket-assist allowed for engagement ranges of up to 28,000 meters). Armor protection was 20mm at its thickest and defense was provided by 1 x 7.62mm or 12.7mm machine gun to counter light armored vehicles and low-lying threats. The vehicle was crewed by four personnel made up of the driver, commander, gunner and ammunition handler. Unlike the Mk F3 before it, the GCT now housed all of the vehicle crew in relative safety and, furthermore, the entire crew was protected from Nuclear, Biological and Chemical (NBC) threats. Four smoke grenade dischargers are fitted in pairs at the extreme lower corners of the turret front.

Power for the GCT was served through a Hispano-Suiza HS 110 12-cylinder, water-cooled, multi-fueled engine outputting at 720 horsepower and installed in the rear of the hull. This allowed for a maximum road speed of 60km across ideal surfaces and an operational range of 450km. The chassis was suspended atop a torsion bar suspension system which allowed for cross-country travel, allowing it to keep pace with the rest of the French mechanized formation.©MilitaryFactory.com
The running gear includes five double-tired road wheels to a track side. The track links run about the wheels in the usual way, straddling either side of the armored hull. The drive sprocket is located at the rear of the arrangement with the track idler at the front. Five track return rollers are mounted along the upper portion of the track and are clearly visible as no side skirt armor is implemented into the design of the GCT.

The 155mm main gun was cleared to fire a variety of ordnance options including High-Explosive (HE). Additionally, the system could fire smoke, anti-tank mines and any rocket-assisted projectiles as needed. The howitzer nature of the weapon means that the 155mm system lobs its projectile in a trajectory against a given target area (as opposed to a direct fire field gun). The gun is mounted to the angled frontal panel of the turret which sports flat sides and rear, the rear section covering some of the engine deck. The recoil mechanism is clearly visibly at the base of the gun as it enters the turret. The barrel is capped by a double-baffled muzzle brake to help dispense with the inherently violent outgoing forces. The onboard ammunition supply totals 42 x 155mm projectiles.

Production of the GCT began in 1977 out of the GIAT Roanne facility and completed in 1995 to which 400 units were delivered. Initial versions were represented by the "AUF 1" designation and modernized versions later appeared as the "AUF 2". Beyond their operation by the French, the GCT (AUF 1 models) were sold to Saudi Arabia and Iraq. Saudi Arabia received 51 examples beginning in 1978 to Iraq's 85 which were delivered from 1983 to 1985.

The GCT retains an operational level status with modern French Army forces. Seventy units were modernized to the new AUF 2 standard (built upon the AMX-30B2 MBT chassis). The standard incorporated an new automatic loader with an increased rate-of-fire to 10 projectiles. Also, range of the main gun is slightly improved as is accuracy. The GCT turret is also more modular, able to be fitted across a wide range of existing MBT chassis.

The GCT has gone on to see some combat service in its long-running tenure. During the Iran-Iraq War of the 1980s, Iraqi Army GCTs were used to good effect against Iranian targets. French Army GCTs were then utilized in support of NATO forces during the Bosnia and Herzegovina campaigns.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.


Service Year

France national flag graphic


Nexter (GIAT Industries) - France
(View other Vehicle-Related Manufacturers)
National flag of France National flag of Iraq National flag of the Kingdom of Saudi Arabia France; Iraq; Saudi Arabia
(OPERATORS list includes past, present, and future operators when applicable)
Fire Support / Assault / Breaching
Support allied forces through direct / in-direct fire, assault forward positions, and / or breach fortified areas of the battlefield.

33.6 ft
10.25 m
10.3 ft
3.15 m
10.7 ft
3.25 m
92,594 lb
42,000 kg
46.3 tons
(Showcased structural values pertain to the base GIAT GCT (Grande Cadence de Tir) production variant. Length typically includes main gun in forward position if applicable to the design)
Powerplant: 1 x Hispano-Suiza HS 110 12-cylinder, water-cooled, supercharged multi-fueled engine developing 720 horsepower at 2,000rpm driving conventional track-and-wheel arrangement.
37.3 mph
(60.0 kph)
279.6 mi
(450.0 km)
(Showcased performance specifications pertain to the base GIAT GCT (Grande Cadence de Tir) production variant. Compare this entry against any other in our database)
1 x 155 mm main gun in turret.
1 x 7.62 mm General Purpose Machine Gun (GPMG) OR 12.7 mm Heavy Machine Gun (HMG) on turret roof for Anti-Aircraft (AA) role.
4 x Smoke dischargers on turret.

Supported Types

Graphical image of a tank cannon armament
Graphical image of a tank medium machine gun
Graphical image of a tank heavy machine gun
Graphical image of tank /armored vehicle smoke grenade dischargers

(Not all weapon types may be represented in the showcase above)
42 x 155mm projectiles (HE, SMOKE, Mine Dispensing).
2,050 x 7.62mm ammunition.
800 x 12.7mm ammunition.
4 x Smoke Grenades.

AMX-30 GCT - Formal Model Designation.
AUF 1 - Initial Production Models.
AUF 2 - Modernized and improved variant; totaling 70 examples; new autoloader for improved reliability, accuracy and rate-of-fire; manufactured on AMX-30B2 MBT chassis.

Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles

Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery

1 / 7
Image of the GIAT GCT (Grande Cadence de Tir)
Image from the Department of Defense imagery database.
2 / 7
Image of the GIAT GCT (Grande Cadence de Tir)
Image from the Department of Defense imagery database.
3 / 7
Image of the GIAT GCT (Grande Cadence de Tir)
Image from the Department of Defense imagery database.
4 / 7
Image of the GIAT GCT (Grande Cadence de Tir)
Image from the Department of Defense imagery database.
5 / 7
Image of the GIAT GCT (Grande Cadence de Tir)
Image from the Department of Defense imagery database.
6 / 7
Image of the GIAT GCT (Grande Cadence de Tir)
Image from the Department of Defense imagery database.
7 / 7
Image of the GIAT GCT (Grande Cadence de Tir)
Image from the Department of Defense imagery database.
