Teledyne FLIR PackBot


Lightweight Unmanned Ground Vehicle (UGV) [ 2003 ]



The PackBot system represents the future of battlefield reconnaissance and IED disposal.



Authored By: Staff Writer | Last Edited: 06/19/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The Teledyne FLIR "PackBot" is a rugged, lightweight, all-weather Unmanned Ground Vehicle (UGV) intended for the bomb disposal / counter-IED role. The system has seen acceptance into service with the likes of the United States Marine Corps (USMC), the Italian military, and - more recently - an order placed by the German Army. Beyond its given ordnance disposal role, this unique system can also tackle battlefield reconnaissance and related search-and-surveillance-tasks that go beyond the military sector - this includes HAZMAT control, police SWAT support, and engineering reviews in the civilian sector, such is its inherent versatility.

PackBot has already proven itself a viable companion for the modern warfighter, particularly in relatively recent actions with American forces in both the Afghanistan and Iraq theaters of war, and paves the way for a new-generation of battlefield robots to come in the near-future.

The heart of the PackBot is its 3-link articulated manipulator arm that extends up to 2 meters in any direction to safely disrupt difficult-to-access objects such as Improvised Explosive Devices (IEDs), various types of unexploded military ordnance, and buried land mines among other incendiary devices up to 30lbs in weight. A "Small Arm Manipulator" (SAM) is also offered with a rated 15lb weight-lifting limit. The gripper hand can rotate 360-degrees and handle objects the size of baseballs and the user operates the PackBot safely via remotely through a two-hand ergonomic controller (modeled after a game console's gamepad). This controller sports security key encryption to keep out unwanted users.

An optional wire spooler located at the rear of the PackBot chassis manages the controlled release of the optional communications fiber cable to ensure tangle-free operation when in-the-field and operating the unit at-range. The operator also has access to the PackBot facilities by way of a laptop-type interface system with integrated keyboard.

The chassis is propelled via a track-and-wheel arrangement fitted to either side of the chassis. A positional, triangular-shaped track extension assembly is fitted to the front of the chassis to assist PackBot in managing higher ground which, in turn, allows the robot to traverse uneven terrain including staircases, rocky surfaces, loose gravel, and mud. Grade traversal is rated at 60-degrees.

The chassis features an onboard computer powered by a modern PC processor integrating handling and behavioral sensors into the mix via the iRobot "AWARE 2" modular intelligence software suite. Sensors keep track of where the grapple arm is at all times to help eliminate the possibility of accidental collision with nearby structures. The computer is installed with a self-monitoring overheating protection system as well as integrated GPS, compass, and inclinometer.

User-assisted vision is handled by a "Vision and Targeting" camera that features 312x zoom and laser-range finding as well as day / night / low-light vision capability. The camera system can tilt upwards, downwards, rearwards, and forwards and two cameras can also be mounted to the manipulator arm for enhanced situational awareness. PackBot utilizes a gas detection meter for the purpose of detecting and identifying hazardous Nuclear, Biological and Chemical (NBC) sources.

The nimble little unit can reach maximum speeds of up to 5.8 miles-per-hour on flat, prepared surfaces, sports an overall height of just 7 inches, a width of 16 inches, and a length of 27 inches with all features stowed. As a whole, PackBot weighs in at 24lb sans its battery pack. Power is supplied by way of 2 x BB-2590 / U lithium-ion rechargeable batteries that give the PackBot up to four hours of operation on a single charge - equal to approximately 10 miles of road travel. PackBots are issued with a spare battery pack for obvious reasons as well as a battery charger.

Teledyne FLIR PackBot marketing material boasts a product with up to 75 available optional accessories for the base Model 510.

The Model 525 is a more modern, more enhanced offering from Teledyne FLIR, seeing upgrades to camera equipment and broadened mission capabilities. It retains the highly-mobile / transportable qualities of the earlier mark.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

September 2011 - On September 27th, 2011, the US DoD announced a $60,000,000 contract for the procurement of 300 iRobot PackBot systems to include applicable maintenance, parts and repair services. Terms of the contract are slated to be completed on July 27th, 2016.

June 2022 - At Eurosatory 2022, it was announced that FLIR will be delivering some 127 Packbot 525 UGVs to the German Army for the counter-IED role.

Advertisements

Specifications



Service Year
2003

Origin
United States national flag graphic
United States

Status
ACTIVE
In Active Service.
Crew
1
CREWMEN
Production
500
UNITS


Teledyne FLIR (formerly iRobot) - USA
(View other Vehicle-Related Manufacturers)
National flag of modern Germany National flag of Italy National flag of the United States Germany (announced); Italy; United States
(OPERATORS list includes past, present, and future operators when applicable)
Special Purpose
Special purpose design developed to accomplish an equally-special battlefield role or roles.


Length
2.9 ft
0.87 m
Width
1.6 ft
0.5 m
Height
1.3 ft
0.4 m
Weight
115 lb
52 kg
(Showcased structural values pertain to the FLIR PackBot 510 production variant. Length typically includes main gun in forward position if applicable to the design)
Powerplant: 1 x Battery-powered electric drive with track-and-wheel arrangement.
Speed
5.8 mph
(9.3 kph)
(Showcased performance specifications pertain to the FLIR PackBot 510 production variant. Compare this entry against any other in our database)
None.


None.


PackBot - Base Series Name.
PackBot 510 - Variant.
PackBot 525 - Variant.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 10

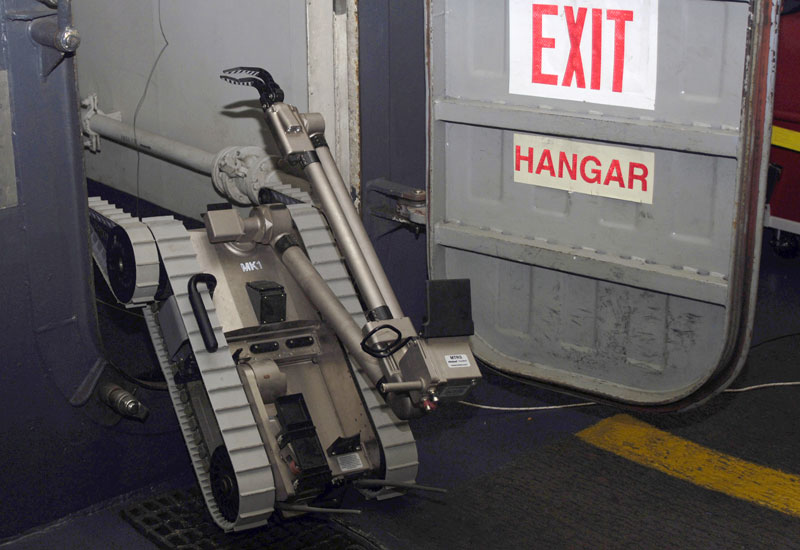

Image of the Teledyne FLIR PackBot
