SA-6 / 2K12 (Gainful / Kub)

Mobile Surface-to-Air Missile (SAM) Defense System [ 1970 ]

The SA-6 Gainful self-propelled air defense system was produced between 1968 and 1985 and is still fielded today.

Authored By: Staff Writer | Last Edited: 04/08/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

Design work on the 2K12 "Kub" system began in 1959 under the direction of NIIP/Vympel (for the missile) and MMZ (for the tracked chassis) at the behest of the Soviet government. After successfully completing the requisite trials (delayed by various technological challenges), the design entered serial production in 1968 which ran until 1985. The system was formally introduced into limited Soviet Army service in 1967 before seeing widespread use by 1970 and operations concerning the unit continue with many nations even today - despite its 1970s heritage. The type has since seen successful combat actions through the Yom Kippur War, the Chad Civil War, the Iran-Iraq War, the 1st Lebanon War, the 1991 Gulf War and the Yugoslav Wars of the 1990s. To date at least 500 launcher units have been processed with some 10,000 missiles delivered. NATO recognized the 2K12 as the SA-6 "Gainful".

Design of the 2K12 is centered around the use of three rail-launched guided missiles utilizing an optical sight and continuous wave target illuminator. Missiles can detonate on impact or be set with a proximity fuze and hold an effective range of 15 miles against targets up to 45,930 feet in altitude. Each is powered by a solid fuel rocket motor and can reach speeds of up to Mach 2.8 which places any modern aircraft at risk. The system is categorized as a low-to-medium altitude interception device and its tracked nature assures that it can be relocated to any positions in defense of key installations. In its tracked form, the chassis makes use of six double-tired road wheels with the drive sprocket at the rear of the hull. The crew is entirely sealed in their armored vehicle while the traversing launcher - fitting the three missiles - sits atop the hull roof.

The 2K12 was modernized in 1973 to become the 2K12 Kub-M1. A further evolution of the system produced the improved 2K12 Kub-M3 of 1976. This was then followed by the 2K12 Kub-M4 in 1978 which was based on the 2K1 Kub-M3 and developed to work in conjunction with the newer 9K37 "Buk" anti-aircraft missile systems - which were inspired by the 2K12 family. The export version of the 2K12 became the 2K12E "Kvadrat" and these have since seen widespread use in Soviet/Russian-allied states and countries. The 3M9M1 became a variant in 1977 that was given an all-new tracked chassis, recognized by NATO as the "SA-6B".©MilitaryFactory.com
Operators of the 2K12 include Algeria, Armenia, Bulgaria, Bosnia and Herzegovina, Cameroon, Chad, Cuba, Czech Republic (formerly as Czechoslovakia), Egypt, Hungary, India, Iran, Libya, Myanmar, Mozambique, North Korea, Poland, Romania, Slovakia, Serbia, Syria and Vietnam. Wide-scale use of the series by Soviet/Russian forces is no more save for a few missile target imitator systems in circulation. Iraq and the former Yugoslavia are a few other former operators of the 2K12 series. Several localized and modified versions of the 2K12 have emerged in places like Poland and the Czech Republic.

In the Soviet inventory, the 2K12 Kub was superseded by the modern 9K37 "Buk" four-missile tracked system though both were eventually used as complements to one another for a complete integrated air defense network.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.


Service Year

Soviet Union national flag graphic
Soviet Union

In Active Service.

Ulyanovsk Mechanical Plant ZiK - Soviet Union
(View other Vehicle-Related Manufacturers)
National flag of Algeria National flag of Armenia National flag of Bulgaria National flag of Croatia National flag of Cuba National flag of Czechia National flag of Egypt National flag of Hungary National flag of India National flag of Iraq National flag of Iran National flag of Libya National flag of Mozambique National flag of Myanmar National flag of North Korea National flag of Poland National flag of Romania National flag of Russia National flag of Serbia National flag of Slovakia National flag of the Soviet Union National flag of Syria National flag of Vietnam National flag of Yugoslavia Armenia; Algeria; Croatia; Bulgaria; Cuba; Czech Republic; Czechoslovakia; Egypt; Hungary; India; Iraq; Iran; Libya; Myanmar; Mozambique; North Korea; Poland; Romania; Russia; Serbia; Slovakia; Soviet Union; Syria; Vietnam; Yugoslavia
(OPERATORS list includes past, present, and future operators when applicable)
Anti-Aircraft / Airspace Denial
Base model or variant can be used to search, track, and neutralize airborne elements at range.

24.3 ft
7.4 m
10.5 ft
3.2 m
11.3 ft
3.44 m
55,116 lb
25,000 kg
27.6 tons
(Showcased structural values pertain to the SA-6 (Gainful) / 2K12 Kub production variant. Length typically includes main gun in forward position if applicable to the design)
Powerplant: 1 x Multi-fuel liquid-cooled diesel engine devliering between 710 and 840 horsepower.
40.4 mph
(65.0 kph)
160.9 mi
(259.0 km)
(Showcased performance specifications pertain to the SA-6 (Gainful) / 2K12 Kub production variant. Compare this entry against any other in our database)
3 x 9M336 medium-range guided missiles

Supported Types

(Not all weapon types may be represented in the showcase above)
3 x 9M336 medium-range guided missiles (no inherent reloads carried).

2K12 - Base Series Designation; entered limited service in 1967, wide-scale service by 1970.
2K12M1 Kub-M1 - Initial Production Model; appearing in 1973.
2K12M3 Kub-M3 - Improved 2K12 series variant; appearing in 1976.
2K12M4 Kub-M4 - Based on the 2K12M3 with interoperability with 9K37 Buk missile systems; appearing in 1978.
9M336/3M9 - Improved moderznied version; available from 1977 onwards.
2K12E "Kvadrat" - Export Variant of 2K12 series
SA-6 "Gainful" - NATO designation of 2K12 series
SA-6B - NATO designation of 3M9 series

Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles

Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery

1 / 10
Image of the SA-6 / 2K12 (Gainful / Kub)
2 / 10
Image of the SA-6 / 2K12 (Gainful / Kub)
3 / 10
Image of the SA-6 / 2K12 (Gainful / Kub)
4 / 10
Image of the SA-6 / 2K12 (Gainful / Kub)
5 / 10
Image of the SA-6 / 2K12 (Gainful / Kub)
6 / 10
Image of the SA-6 / 2K12 (Gainful / Kub)
7 / 10
Image of the SA-6 / 2K12 (Gainful / Kub)
8 / 10
Image of the SA-6 / 2K12 (Gainful / Kub)
9 / 10
Image of the SA-6 / 2K12 (Gainful / Kub)
10 / 10

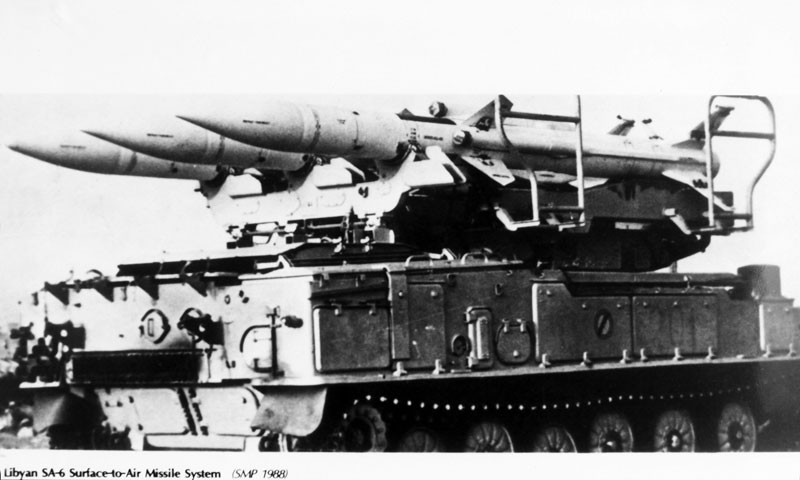

Image of the SA-6 / 2K12 (Gainful / Kub)
