5cm PaK auf Pz.Kpfw.II Sonderfahrgestell 901


Tank Destroyer Prototype Vehicle [ 1941 ]



The Pz.Sfl.Ic tank destroyer combined the Pak 36 anti-tank gun with the chassis of the proven Panzer II tank series - only two pilot vehicles were produced.



Authored By: Staff Writer | Last Edited: 09/28/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
Seeking to shore up its self-propelled, tank-destroying needs as the war progressed in its favor, the German Army once again turned to Rheinmetall-Borsig (of Dusseldorf) this time to develop a lightweight vehicle to suit the requirement. The contract arrived in July of 1940 by which point northern France and the Low Countries has all fallen to the German war machine. Rheinmetall used the chassis of the proven Panzer II light tank as a starting point and the equally-proven 5cm (50mm) Kanone I/60 (PaK 36) anti-tank gun was selected as primary armament.

The resulting vehicle was a low-profile, compact form relying heavily on the inherent capabilities of the Panzer II chassis. A four-man crew would operate the various systems of the vehicle. The gun was seated within a superstructure atop the hull. The driver retained his position at the front of the hull with the engine installed at the rear of the vehicle. The track-and-wheel arrangement featured the usual German overlapping roadwheels and the front-mounted drive sprocket. The track idler was seated at rear and no track return rollers were used. Combat weight was 10,500 kilograms and armor protection reached up to 30mm along the frontal facings. Power was from a single Maybach HL66 engine of 188 horsepower (upgraded from the originally suggested HL45 of 150 horsepower). Road speeds could reach 60 kmh.

The vehicle's formal designation became Panzerselbstfahrlafette 1c 5cm PaK 38 auf Panzerkampwagen II Sonderfahrgestell 901 (abbreviated as "Pz.Sfl. Ic").

Rheinmetall was able to complete two pilot vehicles and these were assigned as active components to the 559th Tank Destroyer Battalion where they were trialled along the East Front. From this exposure was to come a production count of 2,000 vehicles but, for one reason or another, the design never entered production.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1941

Origin
Nazi Germany national flag graphic
Nazi Germany

Crew
4
CREWMEN
Production
2
UNITS


Rheinmetall-Borsig - Nazi Germany
(View other Vehicle-Related Manufacturers)
National flag of modern Germany National flag of Nazi Germany Nazi Germany (cancelled)
(OPERATORS list includes past, present, and future operators when applicable)
Tank-vs-Tank
Engage armored vehicles of similar form and function.


Length
15.3 ft
4.65 m
Width
7.5 ft
2.3 m
Height
6.7 ft
2.05 m
Weight
23,149 lb
10,500 kg
Tonnage
11.6 tons
LIGHT
(Showcased structural values pertain to the base 5cm PaK auf Pz.Kpfw.II Sonderfahrgestell 901 production variant. Length typically includes main gun in forward position if applicable to the design)
Powerplant: 1 x Maybach HL66 gasoline-fueled engine developing 188 horsepower.
Speed
37.3 mph
(60.0 kph)
Range
124.3 mi
(200.0 km)
(Showcased performance specifications pertain to the base 5cm PaK auf Pz.Kpfw.II Sonderfahrgestell 901 production variant. Compare this entry against any other in our database)
1 x 5cm (50mm) Kanone I/60 (PaK 36) anti-tank gun.


Supported Types


Graphical image of a tank cannon armament
Graphical image of a tank anti-tank guided missile


(Not all weapon types may be represented in the showcase above)
Not Available.


5cm PaK auf Pz.Kpfw. II Sonderfahrgestell 901 (Pz.Sfl. Ic) - Base Series Designation.
Panzerselbstfahrlafette 1c 5cm PaK 38 auf Panzerkampwagen II Sonderfahrgestell 901 - Alternative designation.


Military lapel ribbon for the American Civil War
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of the Bulge
Military lapel ribbon for the Battle of Kursk
Military lapel ribbon for the Cold War
Military lapel ribbon for the Falklands War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental military vehicles


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective campaigns / operations.

Images Gallery



1 / 1

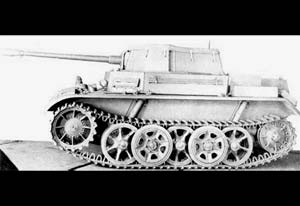

Image from the Public Domain.
